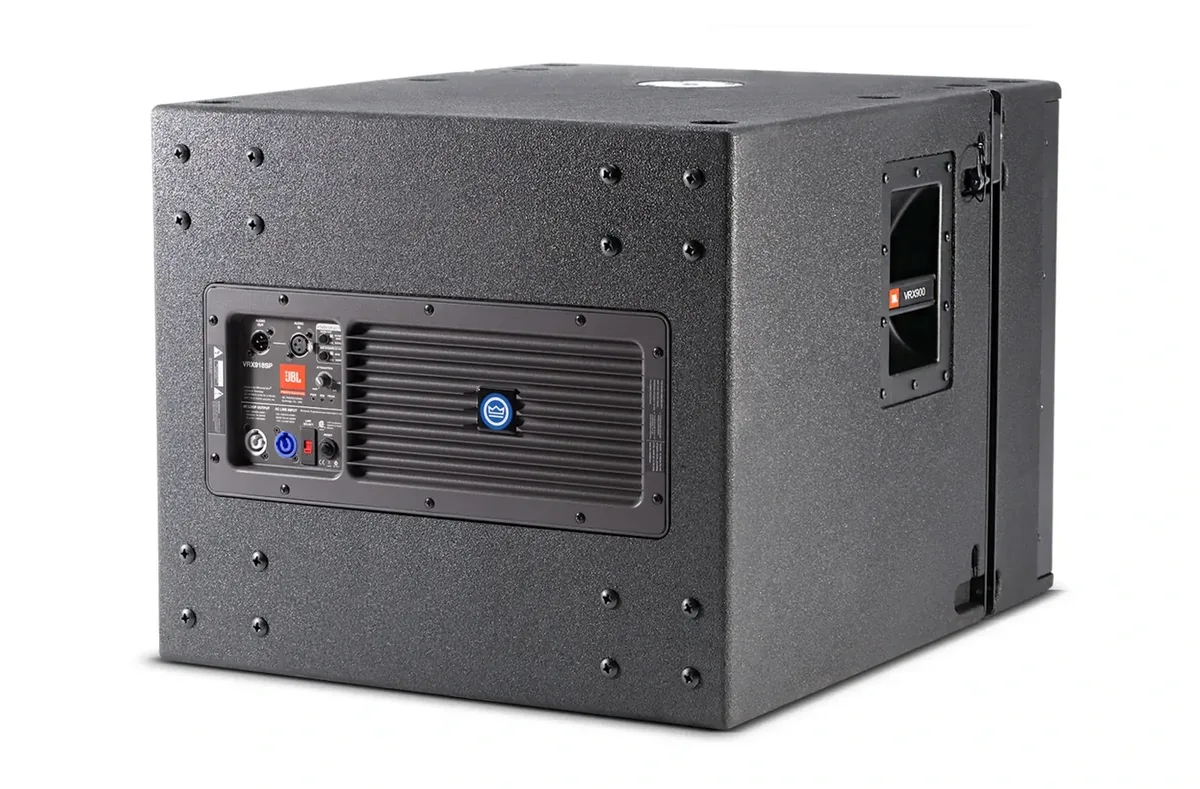

JBL Professional JBL VRX918SP Powered 18-inch flyable subwoofer

The VRX918SP is the self-powered eighteen-inch suspendable subwoofer, designed to fly with VRX932LAP arrays on the VRX-AF frame. A 2268FF dual-voice-coil neodymium Differential Drive woofer runs on 1,500 W peak of Dual-Bridged Class D amplification for 126 dB peak at one metre, from 31 Hz to 220 Hz.

Onboard DSP handles limiting for mechanical and thermal protection. User controls are an input attenuator from 0 to 16 dB, a selectable 80 or 120 Hz low-pass, and an 80 Hz high-pass that can be enabled for the tops. AC is on Neutrik PowerCon with a loop-through, and the line voltage is user-selectable 120 V or 240 V. The cabinet is 18 mm birch in black DuraFlex.

Type	Powered 18-inch flyable subwoofer
Amplifier	1500 W peak, Dual-Bridged Technology Class D
Maximum peak output	126 dB SPL at 1 m
Frequency range (-10 dB)	31 Hz - 220 Hz
LF driver	1 x JBL 2268FF 457 mm (18-inch) dual voice coil Differential Drive woofer
User controls	Input attenuator 0-16 dB; selectable 80 or 120 Hz low-pass; 80 Hz high-pass enable
Inputs / outputs	XLR with loop-through; 1 x XLR out
AC connectors	Neutrik PowerCon in and loop-through; user-selectable 120 V / 240 V
Enclosure	18 mm birch plywood, black DuraFlex finish
Suspension	Optional VRX-AF line array frame kit or 10 mm forged eyebolts
Dimensions (H x W x D)	508 x 597 x 749 mm (20.0 x 23.5 x 29.5 in)
Net weight (each)	38.5 kg (85 lb)
