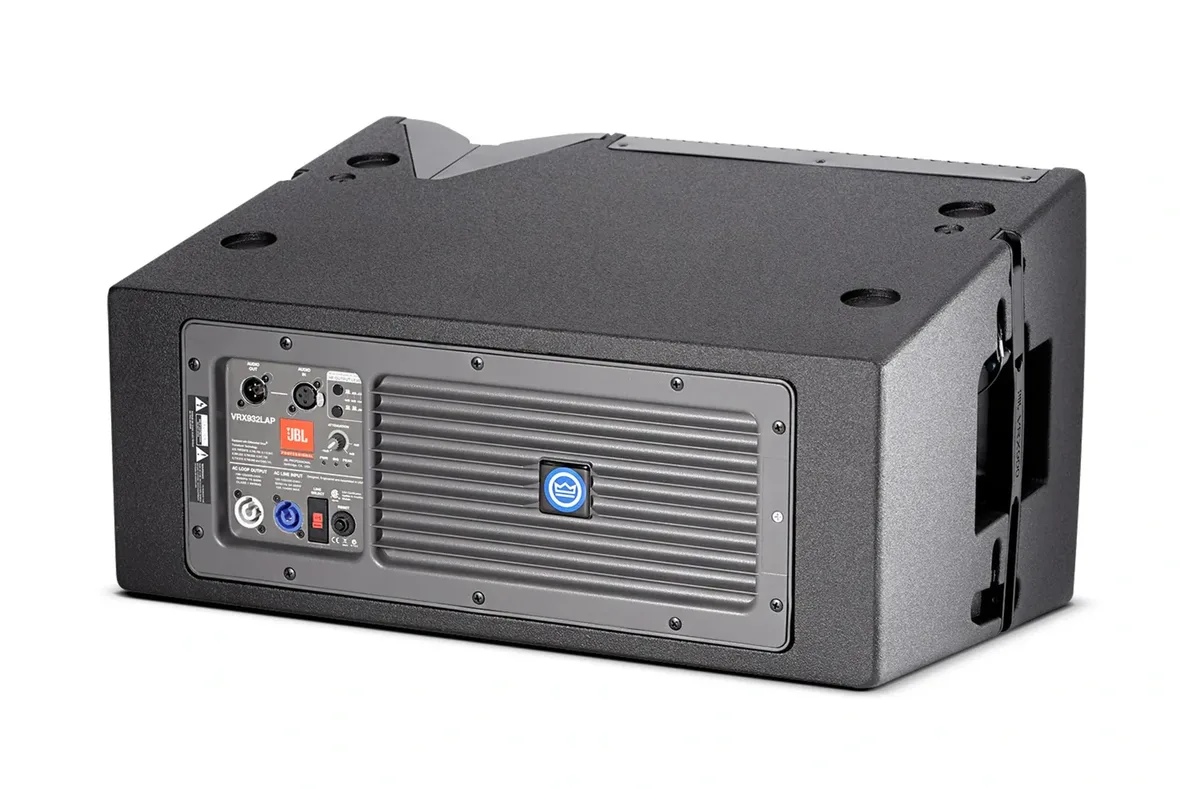

JBL Professional JBL VRX932LAP Powered constant-curvature 12-inch two-way line array element

The VRX932LAP is the self-powered twelve-inch array element, for hangs of up to five. A 2262FF neodymium woofer and three 2408J compression drivers run on 1,750 W peak (875 W continuous) of Dual-Bridged Class D power, for 136 dB and 100 by 15 degree nominal coverage.

This is the box to reach for when you want array behaviour but the room does not justify a large long-throw system and the crew wants to be done quickly. DSP lives in the input module, the only user control is a 0 to 16 dB input attenuator, and AC is on Neutrik PowerCon with a loop-through. Suspension is on the optional VRX-AF frame, 10 mm forged eyebolts, or the internal dual-angle 36 mm pole mount.

Type	Powered constant-curvature 12-inch two-way line array element
Amplifier	1750 W peak / 875 W continuous, Dual-Bridged Technology Class D
Maximum SPL (1 m)	136 dB SPL
Frequency range (-10 dB)	57 Hz - 20 kHz
Frequency response	75 Hz - 20 kHz (+/-3 dB)
Coverage pattern	100 x 15 degrees nominal
LF driver	1 x JBL 2262FF 305 mm (12-inch) neodymium
HF drivers	3 x JBL 2408J 38 mm compression drivers
User controls	Input attenuator 0-16 dB
Inputs / outputs	XLR with loop-through; 1 x XLR out
AC connectors	Neutrik PowerCon in and loop-through
Enclosure	25/15 mm 11-ply birch plywood, black DuraFlex finish
Dimensions (H x W x D)	349 x 597 x 444 mm (13.75 x 23.5 x 17.5 in)
Net weight (each)	24 kg (52 lb)
