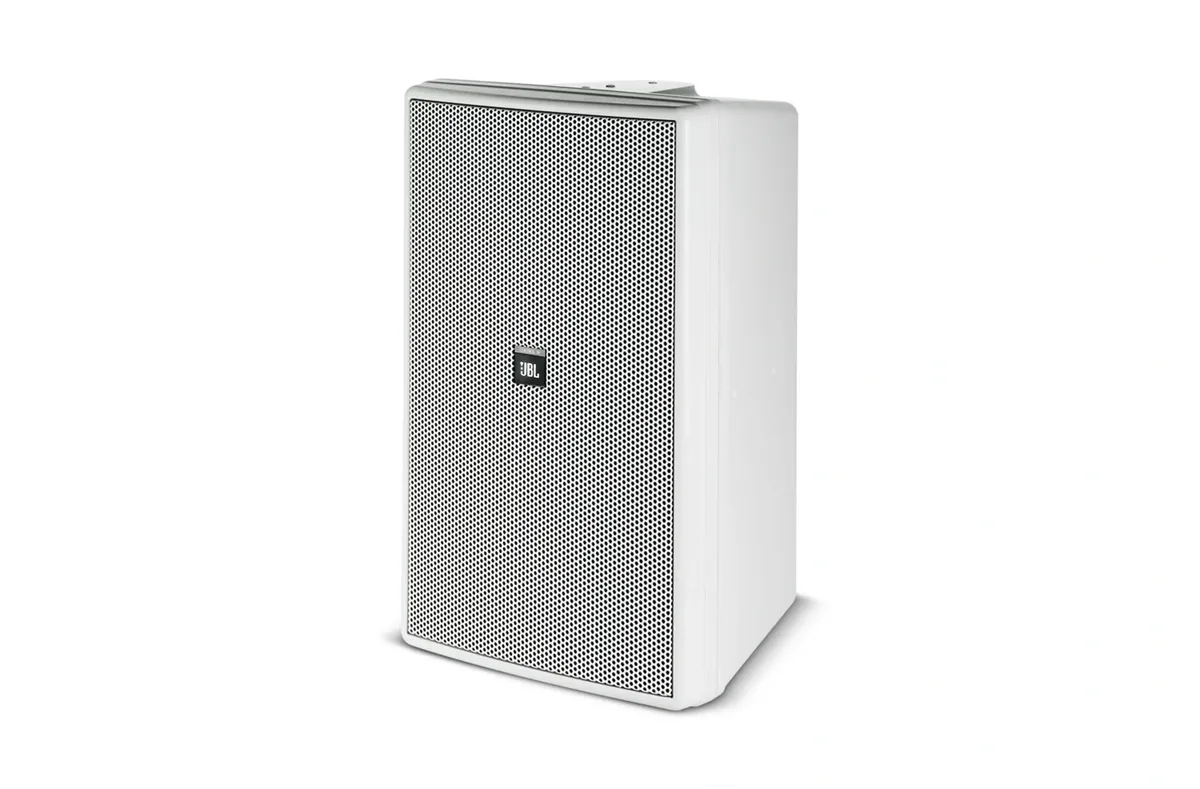

JBL Professional JBL Control 30 Three-way surface-mount monitor loudspeaker, indoor/outdoor

The Control 30 is the three-way box in the Control monitor line: a 250 mm fibreglass and Kevlar cone woofer with a coaxial horn-loaded mid and high section, in a compact enclosure. Coverage is 120 degrees horizontal by 110 degrees vertical, sensitivity is 93 dB, and it reaches 38 Hz at -10 dB with 123 dB short-term output.

It runs at 4 ohms nominal in the through position, or off a 70 or 100 V line with taps to 150 W. SonicGuard full-range limiting protects the network and transducers. The enclosure is glass-filled polystyrene with an internal foamed polypropylene layer, rated IP-X5, and it exceeds Mil Spec 810 for humidity, salt spray, temperature and UV. The InvisiBall aiming mount and an MTC-PC2 panel cover are included.

Type	Three-way surface-mount monitor loudspeaker, indoor/outdoor
Impedance	4 ohms (through position)
Power capacity	500 W continuous program; 250 W continuous pink noise
Maximum SPL (1 m)	123 dB short-term; 117 dB long-term
Sensitivity	93 dB, 1 W @ 1 m
Frequency range (-10 dB)	38 Hz - 17 kHz
Frequency response (+/-3 dB)	40 Hz - 16 kHz
Coverage angle	120 degrees H x 110 degrees V
Transformer taps	70 V: 150/75/38/19 W; 100 V: 150/75/38 W
Protection	SonicGuard full-range power limiting
Outdoor capability	IEC 529 IP-X5; exceeds Mil Spec 810
Mounting	InvisiBall aimable wall-mounting system included
Dimensions (H x W x D)	593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)
Net weight (each)	18.9 kg (42 lb)
