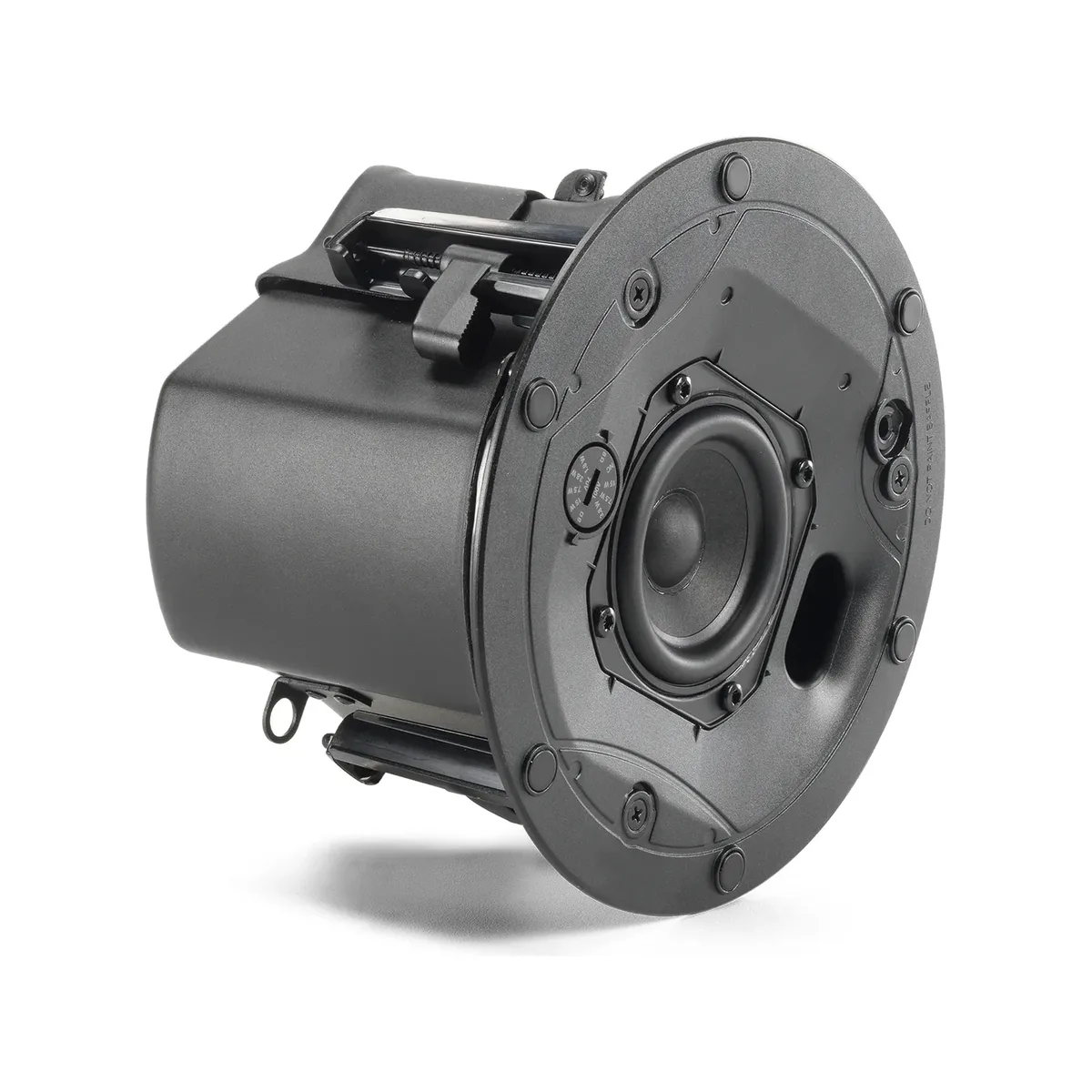

JBL Control 412C/T-VA 3" Full-Range Ceiling Loudspeaker for Life Safety Applications (EN54-24)

The Control 412C/T-VA is a 3" full-range ceiling loudspeaker for life safety applications (EN54-24), from the Control Contractor 400 Series. Transducers are 76 mm (3 in) full range driver with paper cone and SBR surround. Nominal coverage is 160 degrees conical. JBL rates it at 30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs). Maximum SPL at 1 m is 99 dB continuous pink noise (105 dB peak). Nominal impedance is 8.

Transformer taps are 70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W. Environmental rating: IP rating: IP33 per EN/IEC 60529. Operating temperature: 0 degrees C to 45 degrees C. It measures 163 mm (6.5 in) H x 203 mm (8.1 in) dia. 154 mm (6.2 in) from bottom of ceiling tile to top of gland nut.
