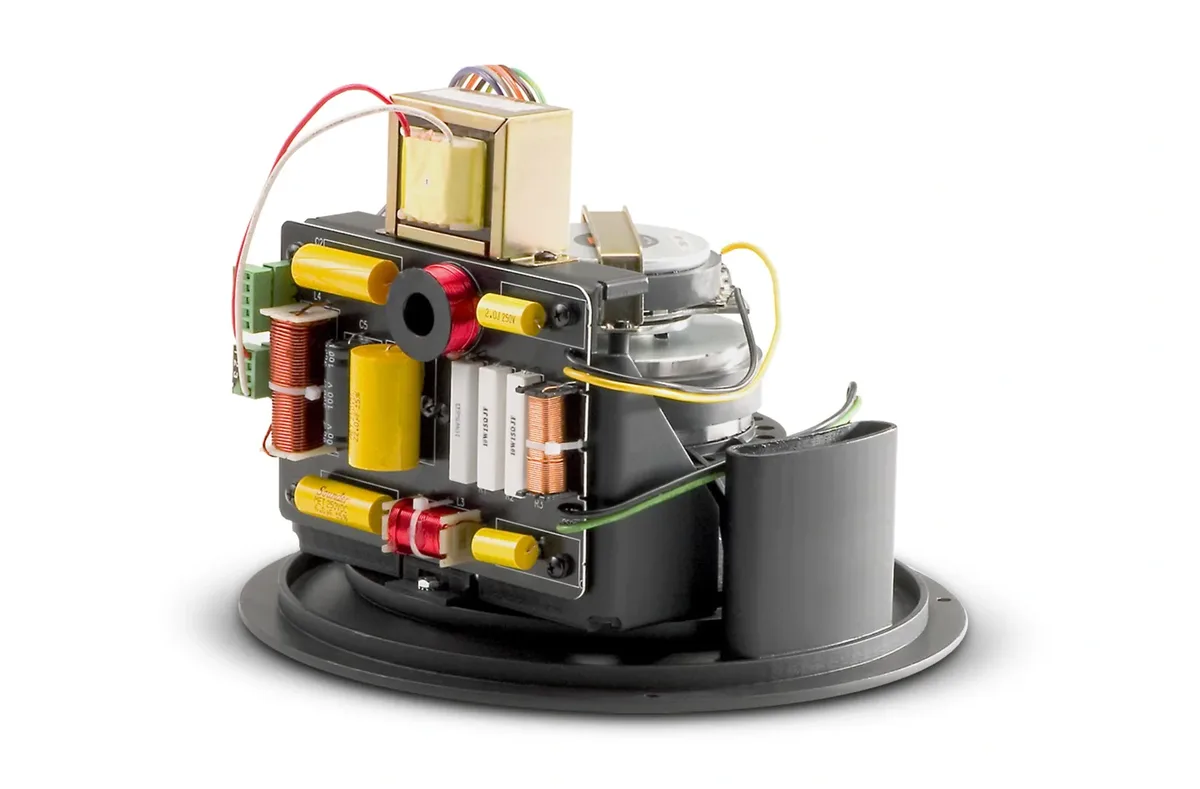

JBL Professional JBL Control 328C 8-inch coaxial in-ceiling loudspeaker

The Control 328C is the 8-inch coaxial ceiling loudspeaker in the 300 series. A shaped mounting baffle gives it the pattern control of a 12-inch horn from an 8-inch driver, holding 120 degrees conical across the band - so it covers a large floor area from fewer positions.

A 200 mm woofer and a 25 mm exit compression driver cross at 1.9 kHz for 118 dB maximum at 93 dB sensitivity, reaching 45 Hz at -10 dB. Impedance is 8 ohms. The round metal baffle is ported with the driver pre-mounted; ceiling cutout is 310 mm for the MTC-300BB8 backcan, which is an accessory and is required for plenum use.

Type	8-inch coaxial in-ceiling loudspeaker
Impedance	8 ohms
Power rating	250 W continuous pink noise (1000 W peak), 2 hrs
Maximum SPL (1 m)	118 dB (124 dB peak)
Sensitivity	93 dB (1 kHz - 16 kHz)
Frequency range (-10 dB)	45 Hz - 18 kHz
Frequency response (+/-3 dB)	60 Hz - 16 kHz
Coverage angle	120 degrees conical, constant directivity
Crossover network	1.9 kHz, 3rd-order high-pass with conjugate to HF, 2nd-order low-pass to LF
Drivers	200 mm (8-inch) LF; 25 mm exit compression driver
Input connectors	Screw-locking barrier strip for bare wire
Ceiling cutout	310 mm (12.2 in) diameter, for MTC-300BB8 backcan
Plenum use	Yes, with accessory backcan
Dimensions	305 mm (12.0 in) diameter round baffle, 160 mm deep behind baffle
