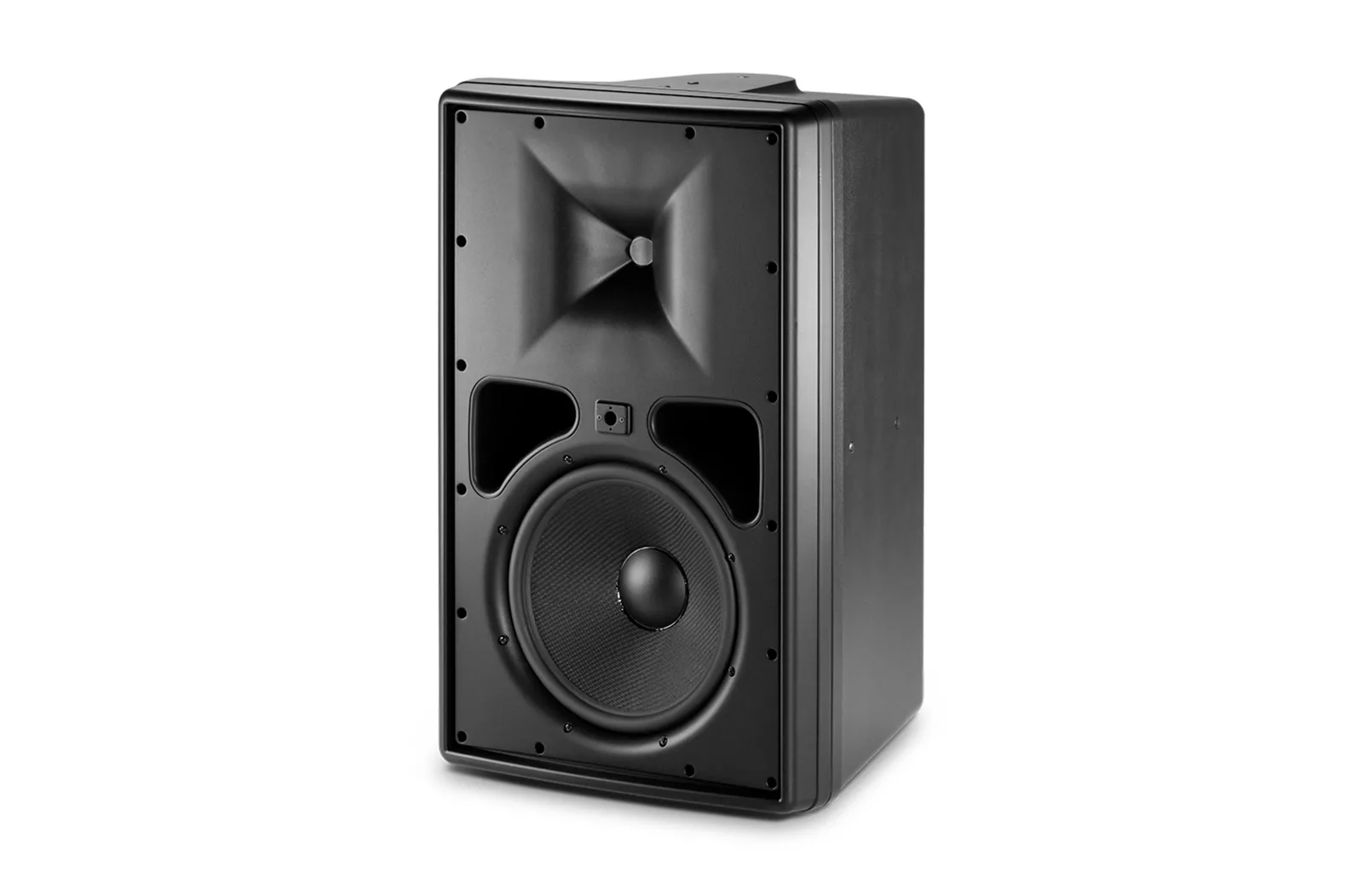

JBL Professional JBL Control 31 Two-way surface-mount monitor loudspeaker, indoor/outdoor

The Control 31 is the two-way high-output monitor: a 250 mm woven-fibreglass woofer with a 52 mm voice coil and a 2414H-C compression driver with a high-temperature polymer diaphragm. Coverage is 110 by 110 degrees, it reaches 33 Hz at -10 dB, and output is 116 dB continuous, 123 dB peak.

It handles 250 W in the 8 ohm through setting, or works from a 70 or 100 V line with taps to 150 W. The enclosure is glass-filled polystyrene with an internal foamed polypropylene layer and a WeatherMax-backed steel grille, rated IP-55, exceeding Mil Spec 810 for humidity, salt spray, temperature and UV. Ten 6 mm attachment points allow suspension, and the InvisiBall wall mount is included. Recommended protective high-pass is 40 Hz at 24 dB per octave.

Type	Two-way surface-mount monitor loudspeaker, indoor/outdoor
Impedance	8 ohms
Power rating	250 W (1000 W peak) 2 hrs; 200 W (800 W peak) 100 hrs
Maximum SPL (1 m)	116 dB continuous (123 dB peak)
Sensitivity	92 dB
Frequency range (-10 dB)	33 Hz - 19 kHz
Frequency response (+/-3 dB)	42 Hz - 14 kHz
Coverage angle	110 degrees H x 110 degrees V
Transformer taps	70 V: 150/75/38/19 W; 100 V: 150/75/38 W
Recommended high-pass	40 Hz, 24 dB/octave
Outdoor capability	IP-55 per IEC529; exceeds Mil Spec 810
Mounting	InvisiBall wall mount included; ten 6 mm attachment points for suspension
Dimensions (H x W x D)	593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)
Net weight (each)	18.8 kg (41.5 lb)
