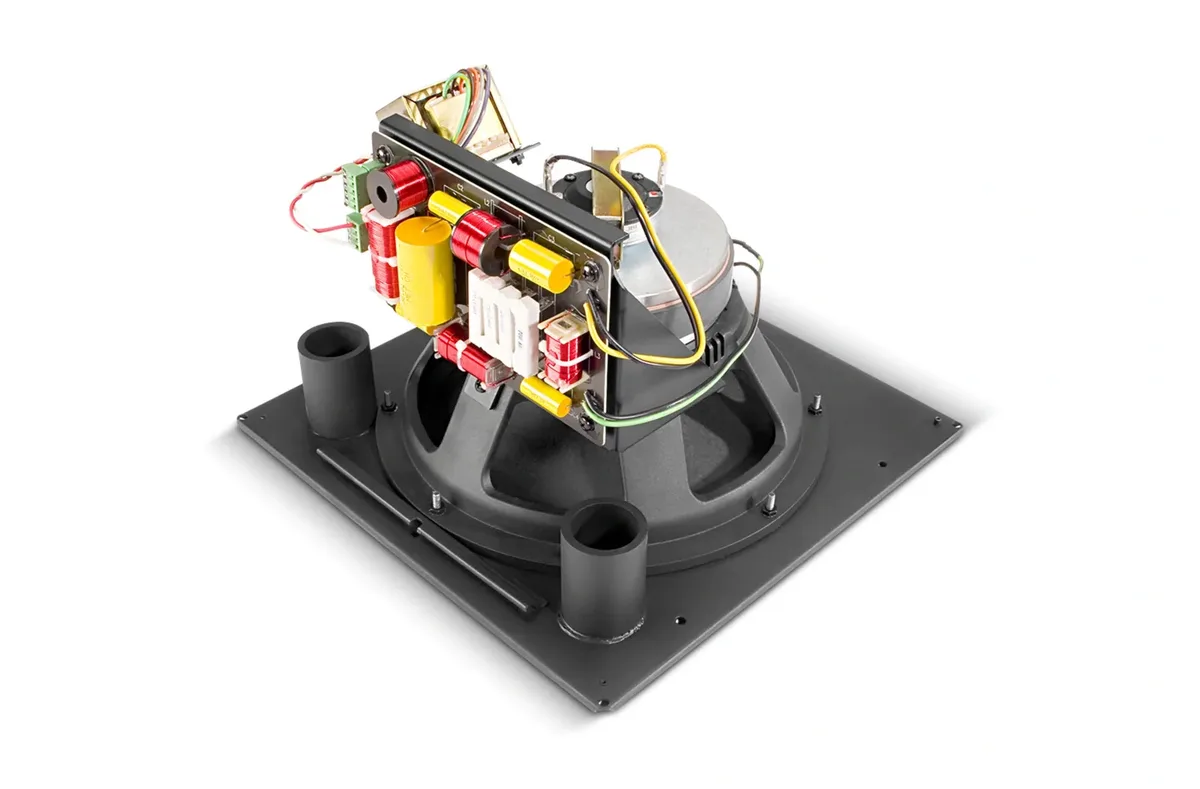

JBL Control 322CT High-output 12 in. Coaxial Ceiling Loudspeaker

The Control 322CT is a high-output 12 in. coaxial ceiling loudspeaker, from the Control Contractor installed range. Transducers are LF Driver: 300 mm (12 in) HF Driver: compression driver, 37 mm (1.5 inch) coil. Nominal coverage is 90 degrees conical, constant directivity. Frequency range is 32 Hz - 20 kHz. JBL rates it at see transformer taps. Maximum SPL at 1 m is 121 dB (top 70V/100V tap).

Transformer taps are 100W, 50W, 25W (& 12.5W @ 70V). Connections are Screw locking barrier strip for bare wire. It measures 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in). In the box: Ported baffle pre-attached, transformer on 322CT.
