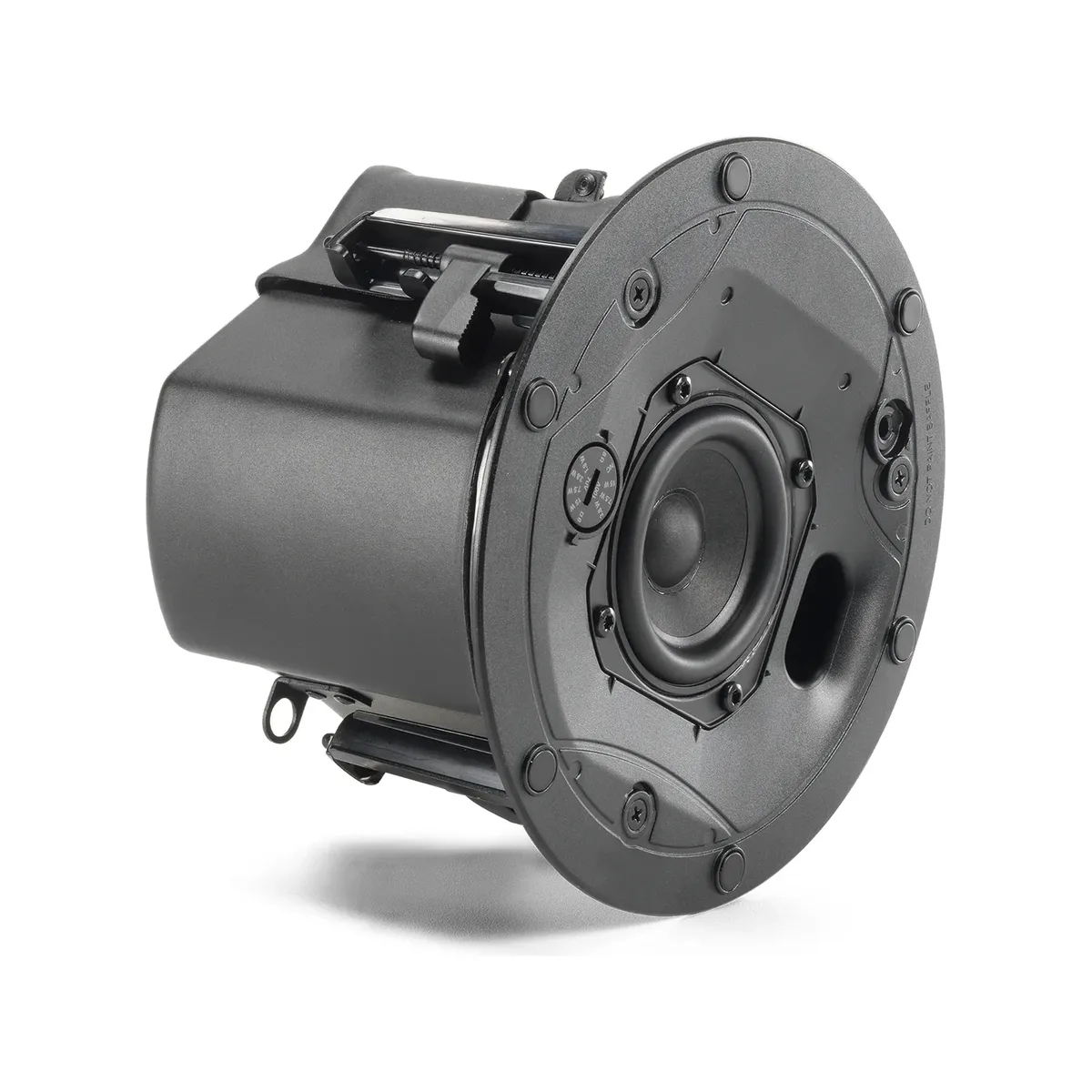

JBL Control 412C/T 3" Full-Range Ceiling Loudspeaker

The Control 412C/T is a 3" full-range ceiling loudspeaker, from the Control Contractor 400 Series. Transducers are 76 mm (3 in) full range driver with paper cone and SBR surround. Nominal coverage is 160 degrees conical. JBL rates it at 30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs). Maximum SPL at 1 m is 99 dB continuous pink noise (105 dB peak). Nominal impedance is 8.

Transformer taps are 70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W. Environmental rating: IP rating: IP33 per EN/IEC 60529. Operating temperature: 0 degrees C to 45 degrees C. It measures 143 mm (5.7 in) H x 203 mm (8.1 in) dia. 134 mm (5.4 in) from bottom of ceiling tile to top of backcan.

Type	3" Full-Range Ceiling Loudspeaker
Frequency Range (-10 dB)	68Hz - 17kHz
Power Capacity	30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)	84dB
Coverage Angle	160 degrees conical
Maximum SPL (1m)	99 dB continuous pink noise (105 dB peak)
Nominal Impedance	8
Transformer Taps	70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W
Drivers	76 mm (3 in) full range driver with paper cone and SBR surround
