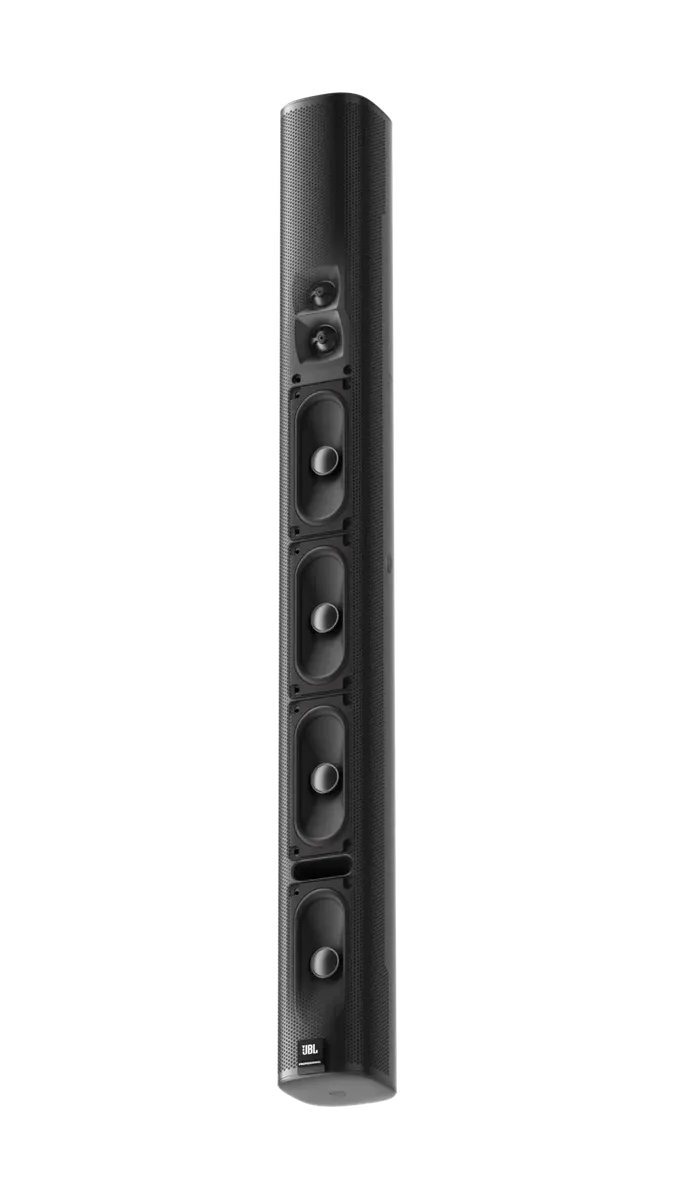

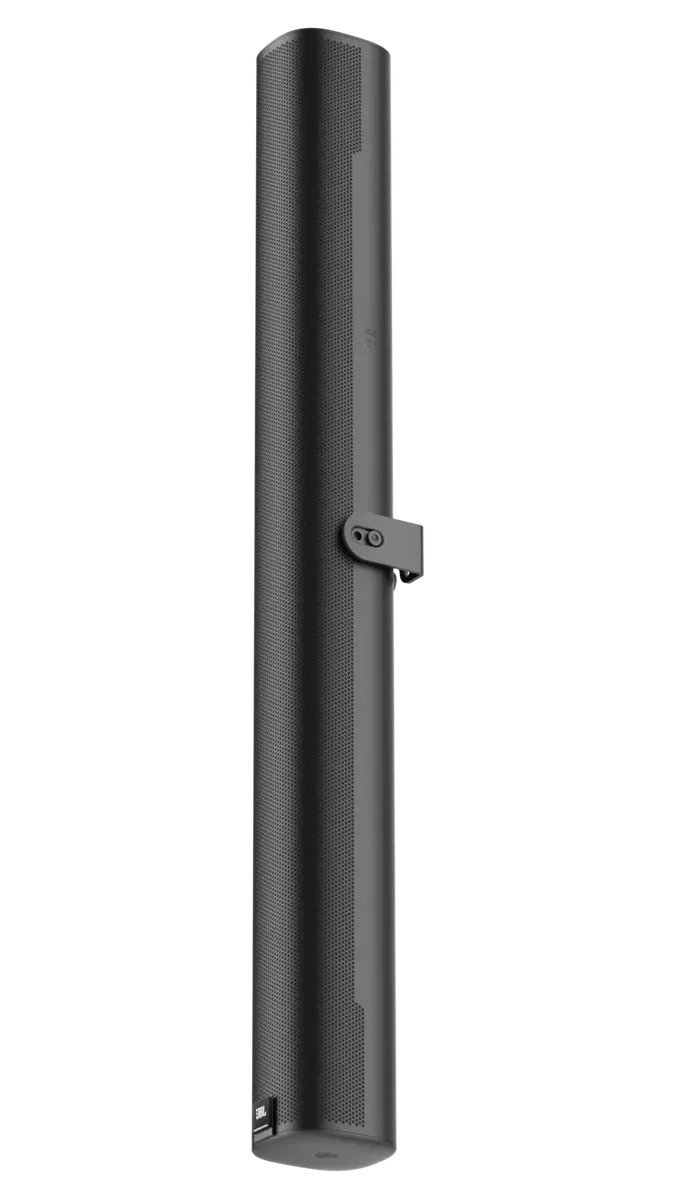

JBL COL800 Slim Column Loudspeaker

The COL800 is a slim column loudspeaker. Transducers are Four 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers Two 20 mm (0.8 in.) tweeters (tweeters located at top of array for better coverage of listening space). Nominal impedance is 8 (in Thru/direct mode).

The grille is Plated SPCC with polyester powder coat finish. Transformer taps are 60W, 30W, 15W @ both 70V & 100V (plus 7.5W @ 70V), and 8 thru, selectable via switch. It measures 800 x 102 x 93 mm (31.5 x 4.1 x 3.7 inches). Net weight is 5.2 kg (11.5 lbs) each. In the box: Low-profile SWIVEL (PAN) / TILT WALL BRACKET; 2 x L-BRACKETS that can be positioned on top/bottom or side/side insert points.

Type	COL800 Slim Column Loudspeaker
Frequency Range (-10 dB)	85 Hz - 20 kHz
Frequency Response (+/-3 dB)	125 Hz - 18 kHz
Power Rating (8 setting)2	300W Continuous Program (2 hrs) 150W (600W peak) Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs)
Sensitivity (2.83V @ 1m)	88 dB
Coverage Pattern	Vertical 60 degrees [1 kHz-4 kHz average]; 10 degrees down-tilt to vertical aiming axis for +20 degrees /-40 degrees coverage in relation to physical cabinet aim Horizontal 160 degrees [1 kHz - 4 kHz average]
Directivity (Q)	8.1
Directivity Index (DI)	9.1 dB
Rated Maximum SPL	110 dB Continuous (116 dB peak) @ 1m
