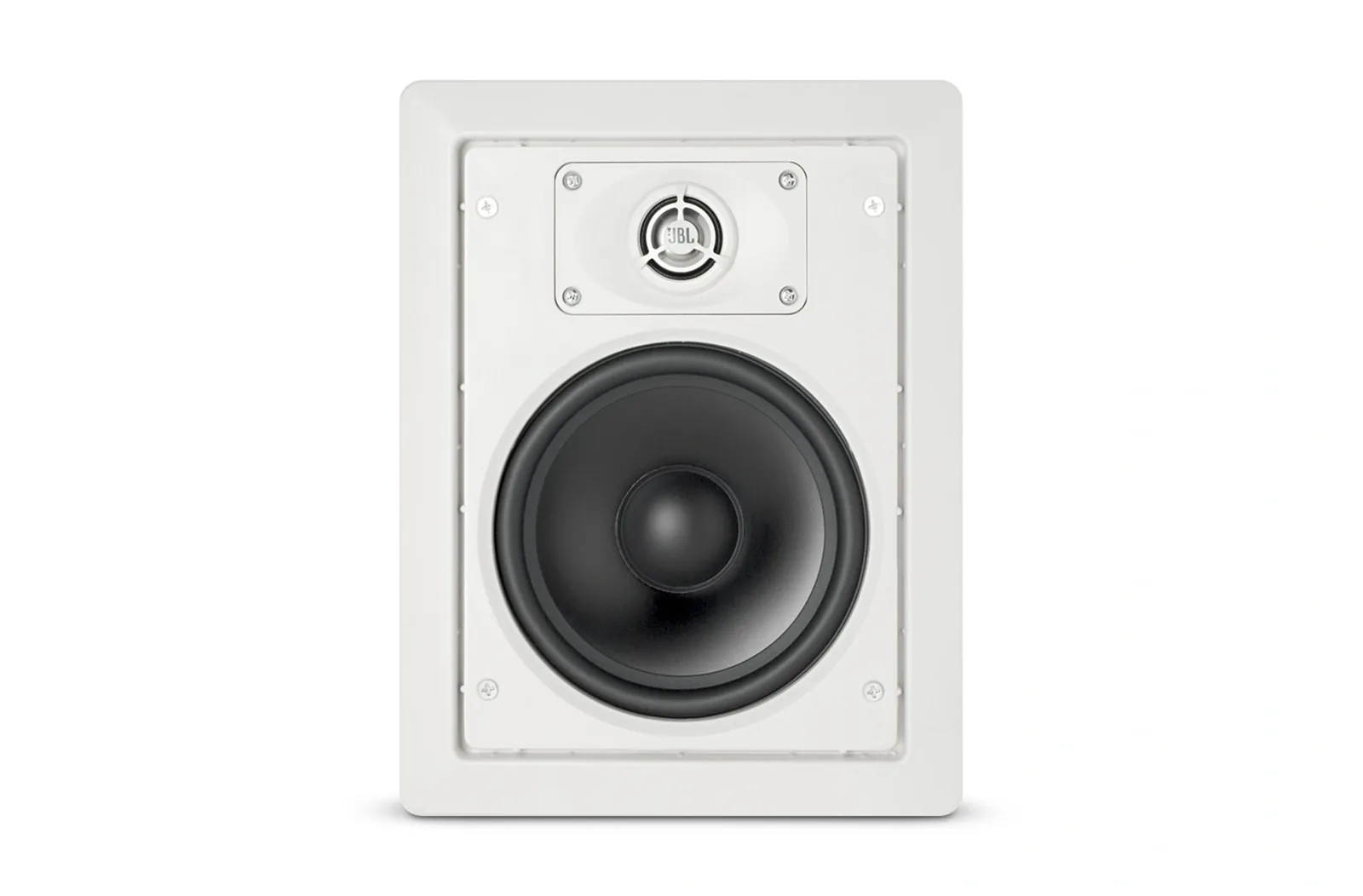

JBL Control 126 WT In-Wall Loudspeaker

The Control 126 WT is a in-wall loudspeaker, from the Control Contractor installed range. Transducers are LF: 165 mm (6.5 in) polymer-coated aluminum cone. HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability. Nominal coverage is 180 degrees H x 160 degrees V. Frequency range is 38 Hz - 20 kHz (-10 dB). JBL rates it at 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise. Nominal impedance is 8 ohms.

Transformer taps are 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps. Connections are Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2. Net weight is 2.7 kg (5.9 lb). In the box: Cutout template & paint shield.

Type	In-Wall Loudspeaker
Frequency Range	38 Hz - 20 kHz (-10 dB)
Power Rating	200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise
Transformer Taps	70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
Sensitivity	88 dB SPL
Coverage Angle	180 degrees H x 160 degrees V
Impedance	8 ohms
Drivers	LF: 165 mm (6.5 in) polymer-coated aluminum cone. HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Input Connectors	Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
