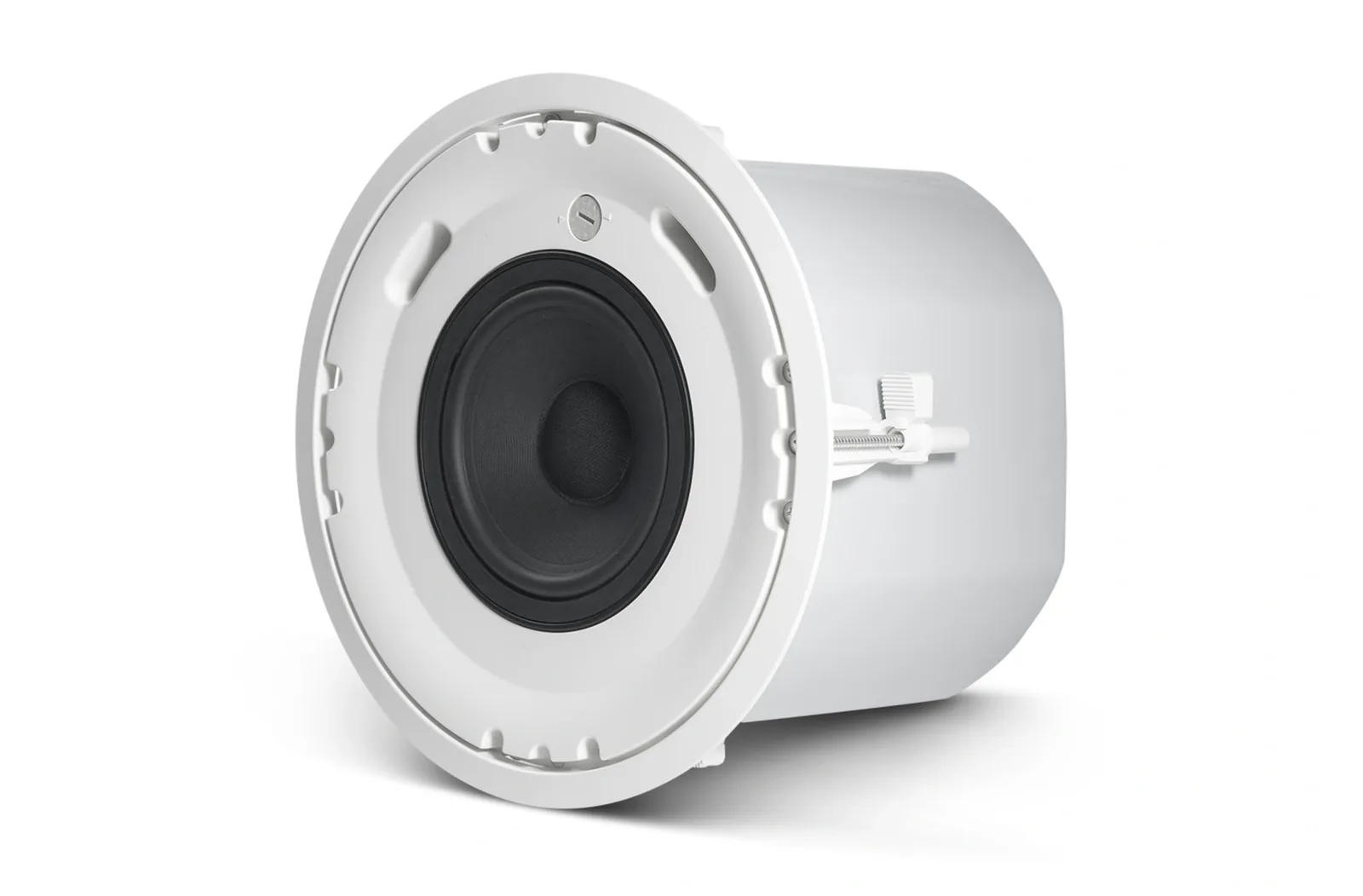

The Control 226C/T is a 6.5" coaxial ceiling loudspeaker with HF compression driver, from the Control Contractor installed range. Transducers are LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil. Nominal coverage is 120 degrees conical, constant directivity. Frequency range is 47 Hz - 19 kHz. JBL rates it at IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs. Maximum SPL at 1 m is 112 dB (low-impedance, 118 dB peak) 108 dB (top 70V/100V tap).

Transformer taps are 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass. Connections are Removable locking connector with screw-down terminals. Net weight is 9.1 kg (20.0 lb). In the box: Press-in Grille, C-Ring, Tile Rails.

Type	6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver
Frequency Range (-10dB)	47 Hz - 19 kHz
Power Rating	IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs
Transformer Taps	68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass
Sensitivity	90 dB (1 kHz - 16 kHz)
Coverage Angle	120 degrees conical, constant directivity
Drivers	LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil
Dimensions (H x Dia)	330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
Net Weight (each)	9.1 kg (20.0 lb)
