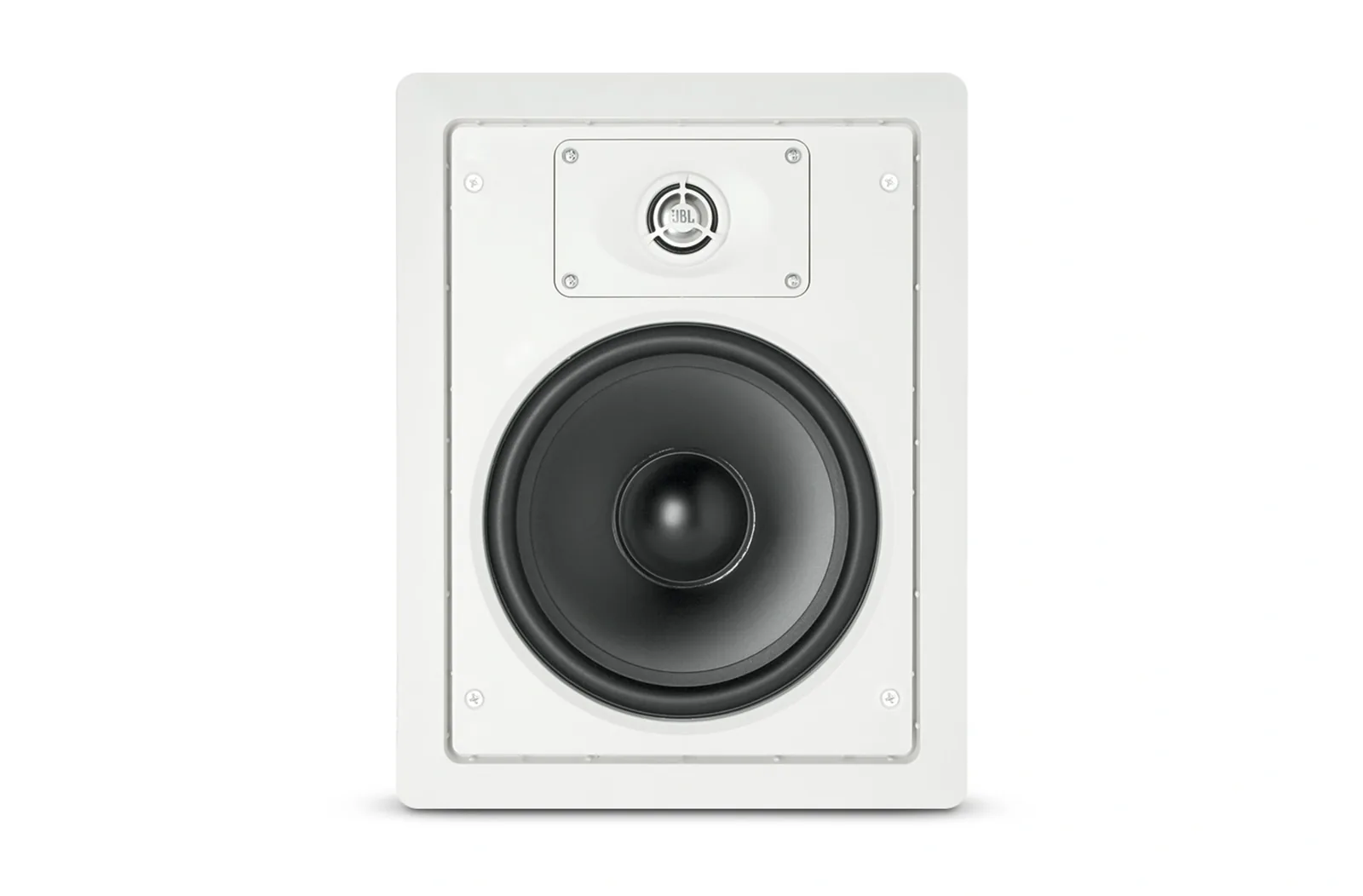

JBL Control 128 W In-Wall Loudspeaker

The Control 128 W is a in-wall loudspeaker, from the Control Contractor installed range. Nominal coverage is 180 degrees H x 160 degrees V. Frequency range is 30 Hz - 20 kHz (-10 dB). JBL rates it at 200 W Peak 100 W Continuous Program Power 50W Continuous Pink Noise. Nominal impedance is 8 ohms. Sensitivity is 90 dB SPL.

Connections are Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2. Net weight is 2.6 kg (5.5 lb). In the box: Cutout template & paint shield.

Type	In-Wall Loudspeaker
Frequency Range	30 Hz - 20 kHz (-10 dB)
Power Rating	200 W Peak 100 W Continuous Program Power 50W Continuous Pink Noise
Sensitivity	90 dB SPL
Coverage Angle	180 degrees H x 160 degrees V
Impedance	8 ohms
Drivers	LF: 200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround. HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Input Connectors	Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network	2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
