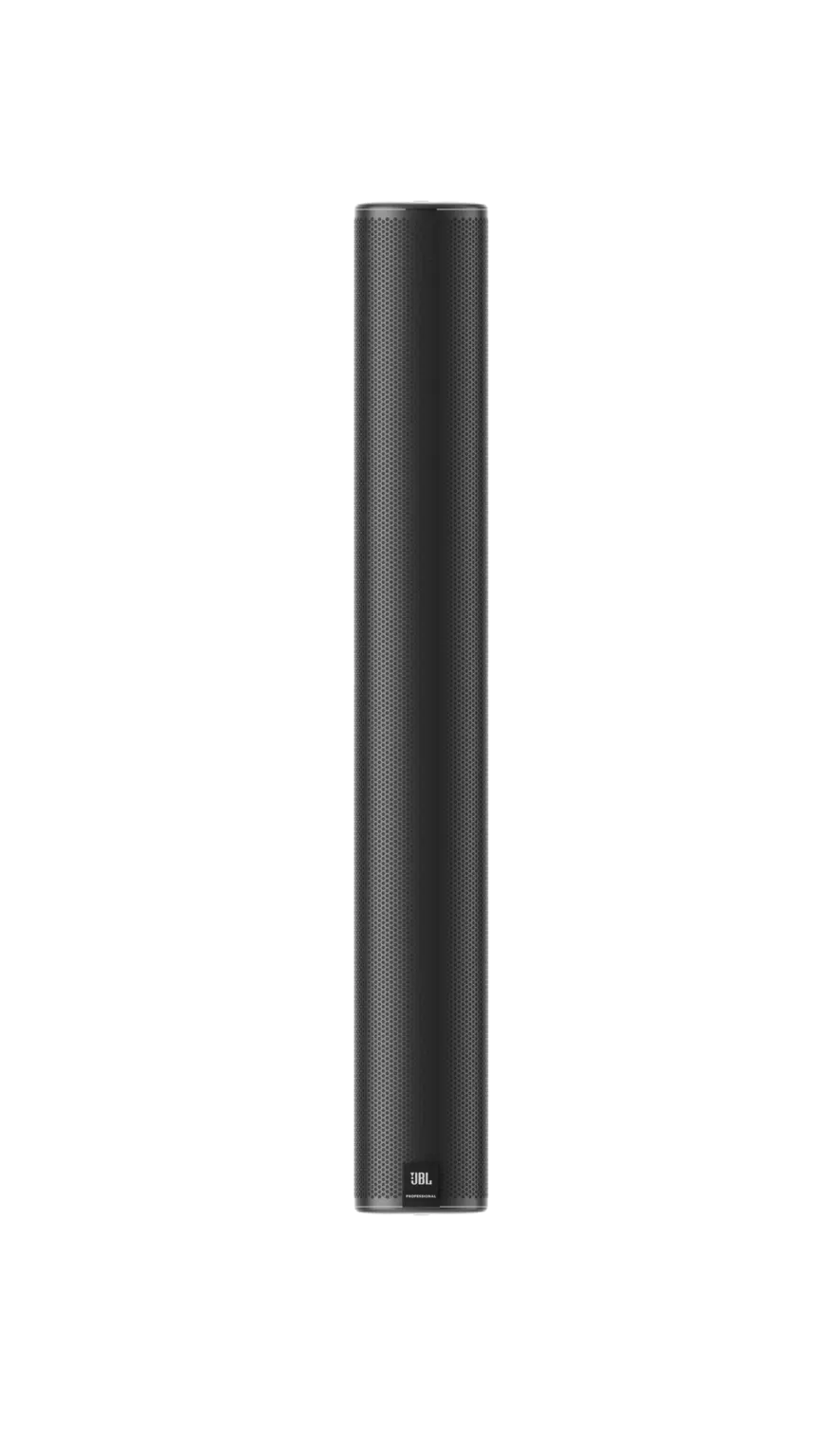

JBL COL600 Slim Column Loudspeaker
The COL600 is a slim column loudspeaker. Transducers are Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space). Nominal impedance is 8 (in Thru/direct mode).
The grille is Plated SPCC with polyester powder coat finish. Transformer taps are 20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8 thru, selectable via switch. It measures 598 x 102 x 93 mm (23.6 x 4.1 x 3.7 inches). Net weight is 3.5 kg (7.8 lbs) each. In the box: Low-profile Swivel (Pan) / Tilt WALL BRACKET; 2 x L-BRACKETS that can be positioned on top/bottom or side/side insert points. Ordering covers Black, White and White; pick the one you need above and the SKU and price follow your choice.
| Type | COL600 Slim Column Loudspeaker |
|---|---|
| Frequency Range (-10 dB) | 70 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 105 Hz - 20 kHz |
| Power Rating (8 setting)2 | 160W Continuous Program (2 hrs) 80W (320W peak) Continuous Pink Noise (2 hrs) 60W (240W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity (2.83V @ 1m) | 86 dB |
| Coverage Pattern | Vertical 110 degrees [1kHz-4 kHz average]; 10 degrees down-tilt to aiming access for+45 degrees /-65 degrees coverage in relation to physical cabinet aim Horizontal 160 degrees [1kHz - 4 kHz average] |
| Directivity (Q) | 7.8 |
| Directivity Index (DI) | 8.9 dB |
| Rated Maximum SPL | 105 dB Continuous (111 dB peak) @ 1m |
