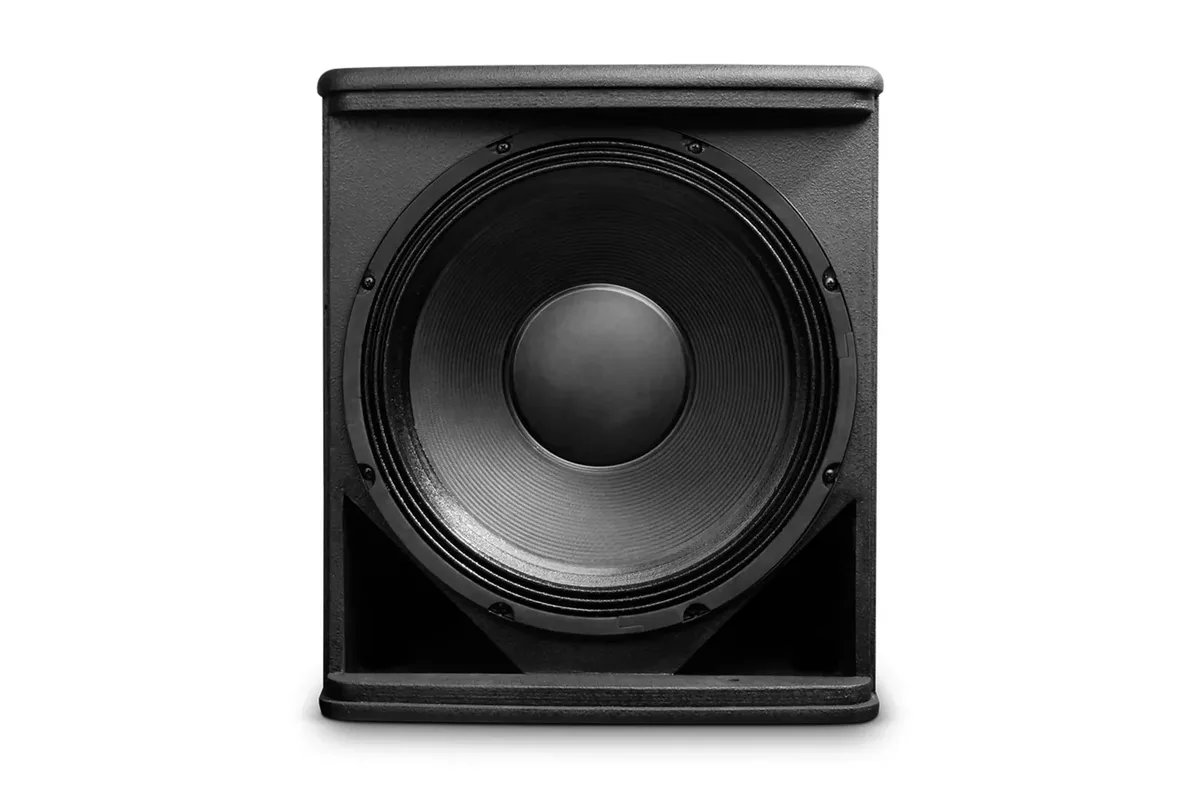

JBL AC115S 15-inch Subwoofer

The AC115S is a 15-inch subwoofer, part of JBL's AE Series installed range. The low-frequency section uses 1 x 15 in woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil. Frequency range is 32 Hz - 250 Hz. JBL rates it at 500W (2000W peak), 2 hrs (AES rated) 400 W/800 W/1600 W (Continuous/Program/Peak) (IEC rated). Maximum SPL at 1 m is 120 dB (126 dB peak). Nominal impedance is 8 ohms.

The enclosure is 18 mm multi-ply hardwood plywood. The grille is Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing. Finish is Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. Connections are Dual Neutrik NL4MP connectors plus covered barrier trip terminals. Rigging: 12 x M10 threaded suspension points. It measures 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in.
