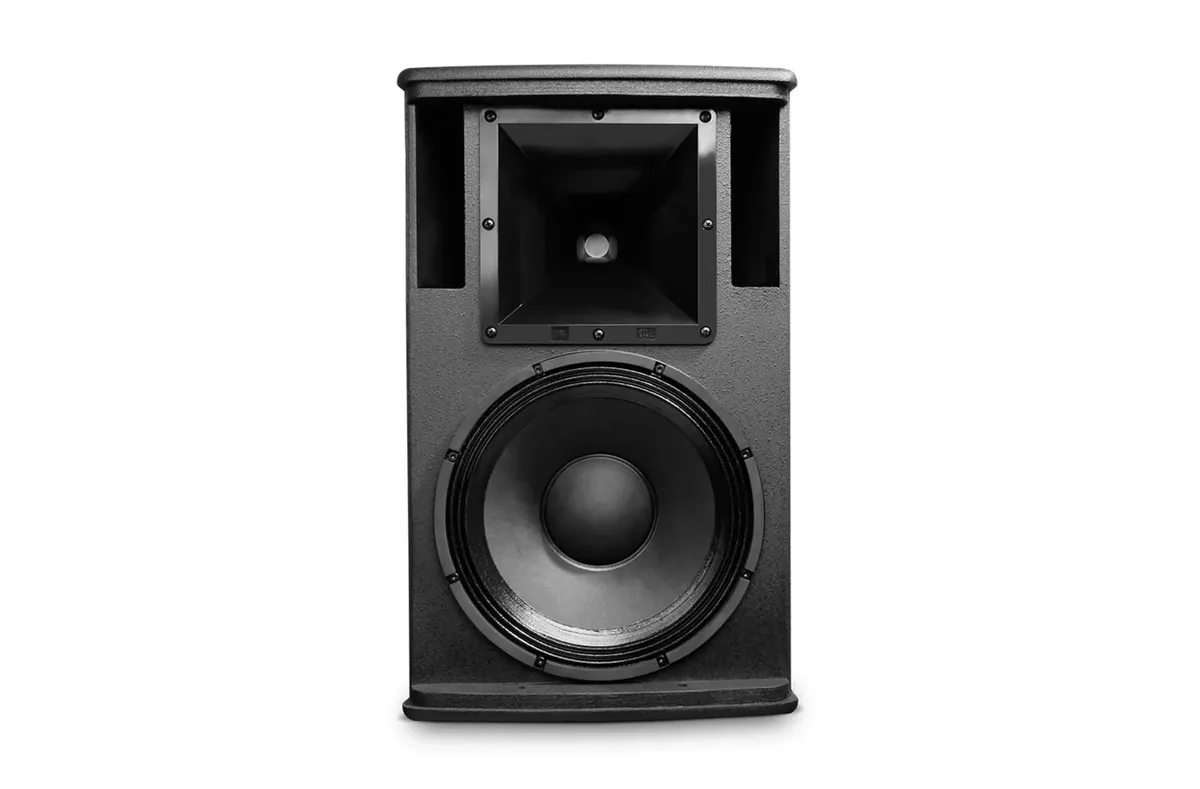

JBL AC266 12-inch 2-Way Speaker with 60 degrees x 60 degrees Horn

The AC266 is a 12-inch 2-Way speaker with 60 degrees x 60 degrees horn, part of JBL's AE Series installed range. The low-frequency section uses 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil. High frequencies come from 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil. Nominal coverage is 60 degrees x 60 degrees (H x V). Frequency range is 63 Hz - 20 kHz. JBL rates it at 350W (1400W peak), 2 hrs (AES rated) 250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated).

The enclosure is 15 mm multi-ply hardwood plywood. The grille is Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing. Finish is Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. Crossover: Passive. Connections are Dual Neutrik NL4MP connectors plus covered barrier trip terminals. It measures 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in.
