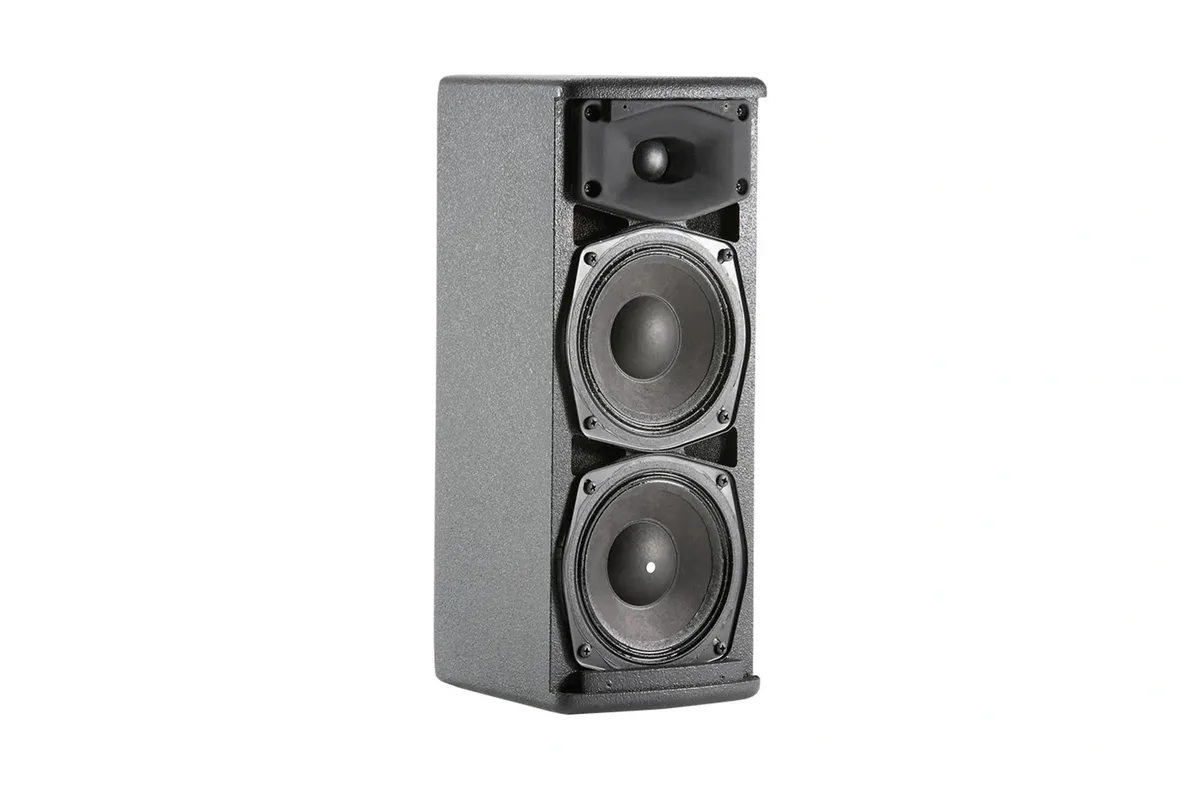

JBL AC25 Ultra Compact Dual 5-inch 2-way Loudspeaker

The AC25 is an ultra compact dual 5-inch 2-way loudspeaker, part of JBL's AE Series installed range. The low-frequency section uses 2 x JBL 225H, 135 mm (5.25 in) SFG driver with 38 mm (1.5 in) edge wound voice coil. High frequencies come from 1 x JBL 201J, 25mm (1 in) voice coil dome tweeter. Nominal coverage is 90 degrees x 90 degrees. Frequency range is 80 Hz - 20 kHz. JBL rates it at 300 W (AES rated) 225 W / 450 W / 900 W (Continuous/Program/Peak) (IEC rated).

The enclosure is 12 mm exterior grade multi-ply hardwood plywood. Crossover: Passive. Rigging: 4 x M8 points; 1 top, 1 bottom, 2 rear. 4 x M6 rear for MultiMount MM-022-BT, MM-024-BT, or MM-020-CM. Environmental rating: Mil-Std 810; IPx3 per IEC529. It measures 377.8 x 150.3 x 177.8mm (14.9 x 5.9 x 7.0in). Net weight is 7.5 kg (16.5 lb).
