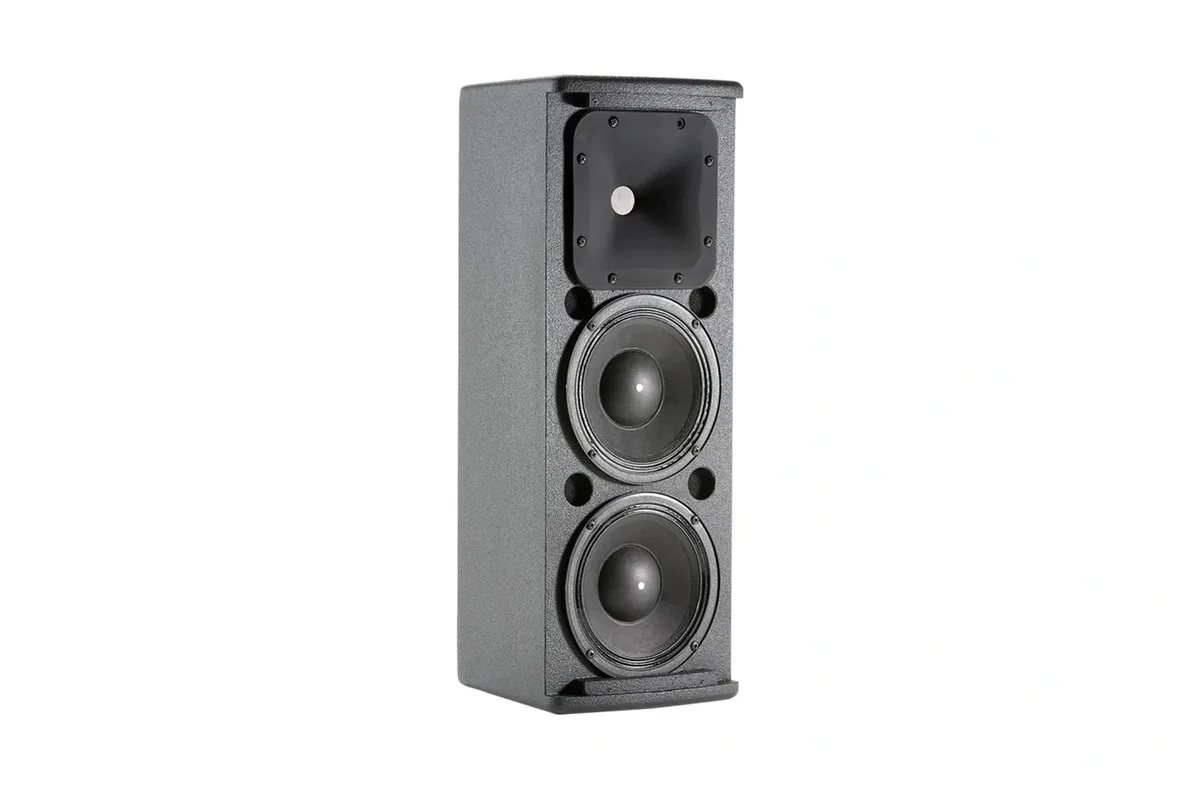

JBL AC26 Ultra Compact 6-inch 2-way Loudspeaker

The AC26 is an ultra compact 6-inch 2-way loudspeaker, part of JBL's AE Series installed range. The low-frequency section uses 2 x JBL 226J, 165 mm (6.5 in) SFG driver with 50 mm (2 in) edge wound voice coil. High frequencies come from 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil. Nominal coverage is 90 degrees x 90 degrees. Frequency range is 55 Hz - 20 kHz. JBL rates it at 350 W (AES rated) 180 W / 360 W / 720 W (Continuous/Program/Peak) (IEC rated).

The enclosure is 12 mm and 15 mm exterior grade multi-ply hardwood plywood. Rigging: 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount 30.0 or MultiMount MM-022-BT, MM-024-BT, MM-020-CM. Environmental rating: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. It measures 539.8 x 199.4 x 226.1mm (21.3 x 7.8 x 8.9in). Net weight is 11.0 kg (24.3 lb). Ordering covers Black and White; pick the one you need above and the SKU and price follow your choice.
