FSR IPS Cable Pass-Through Inserts

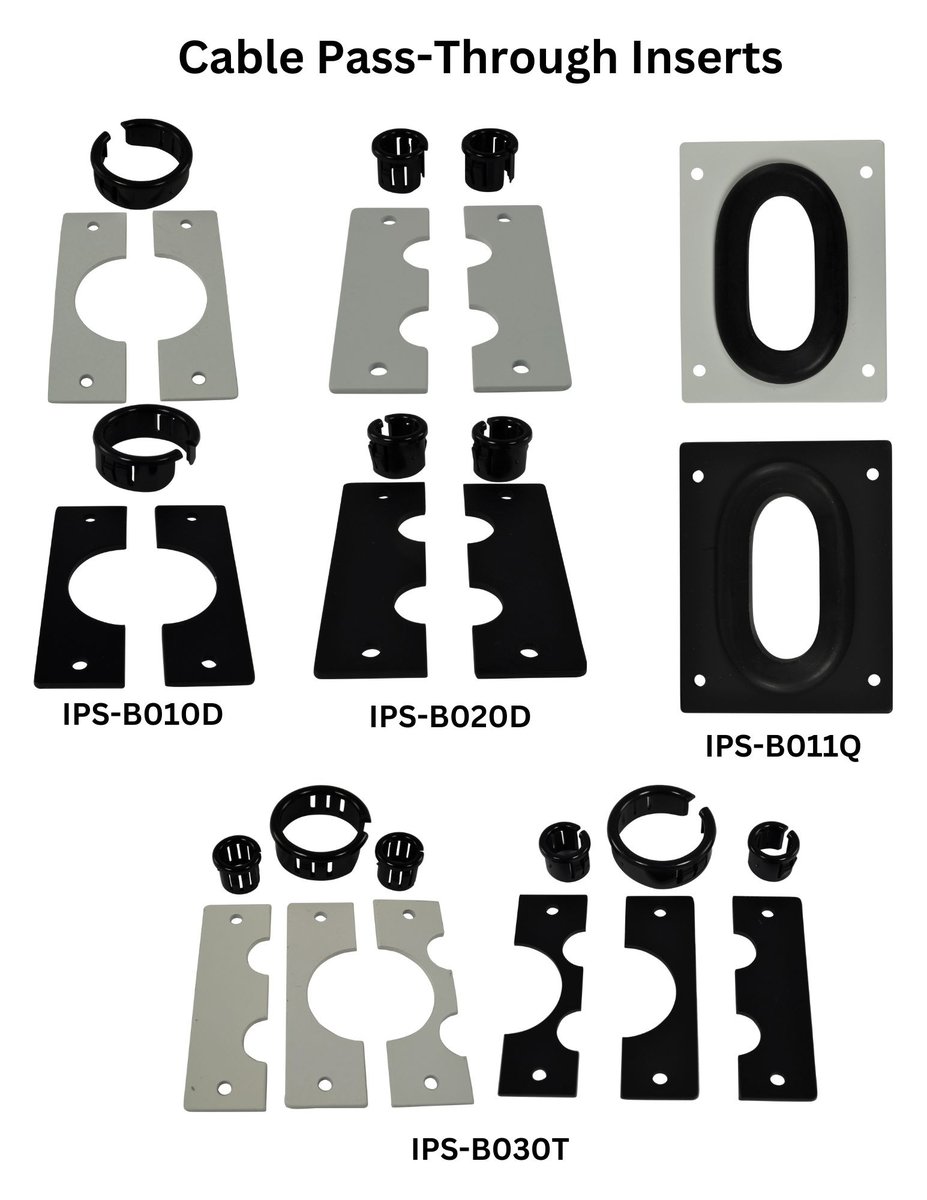

A pass-through insert is the honest answer when a room needs a cable to reach a table rather than a connector on a plate. FSR splits the bushings so a finished cable drops in without removing its connector, and the plate still closes cleanly around it. The B010D takes one .812 in bushing across two IPS positions, the B020D two .312 in bushings, and the B030T combines two .312 in and one .812 in across three positions.

Where a bundle rather than a single cable has to pass, the B011Q opens a 1 in x 2 in grommet hole over four IPS positions. All four fit the same IPS wall plates, under-table enclosures and IPS-RK12 rack mount as the connector inserts, so a plate can mix a pass-through with live connector positions, and all are stocked in white and black.

SeriesFSR Intelligent Plate Solutions (IPS)
Insert TypeCable pass-through inserts
Bushing Sizes.312 in and .812 in inside diameter split bushings
Grommet Opening1 in x 2 in on the IPS-B011Q
Insert HeightsDouble, triple and quad height
Insert FinishesWhite and black
MountingFSR IPS wall plates, IPS under-table enclosures, IPS-RK12 1RU rack mount
Wall Plate Material1/4 in thick milled aluminum, inserts mount flush
Labeling Option-LB part numbers ship as labeled inserts
ApplicationsClassrooms, lecterns, boardrooms, conference rooms, lobbies, hotels, hospitals, houses of worship, control rooms, airports
