FSR IPS Computer Video Connector Inserts

Name: FSR IPS Computer Video Connector Inserts
Brand: FSR
SKU: IPS-AV920D-BLK
Availability: InStock

$54.00

IPS-AV920D-BLK

Choose an option

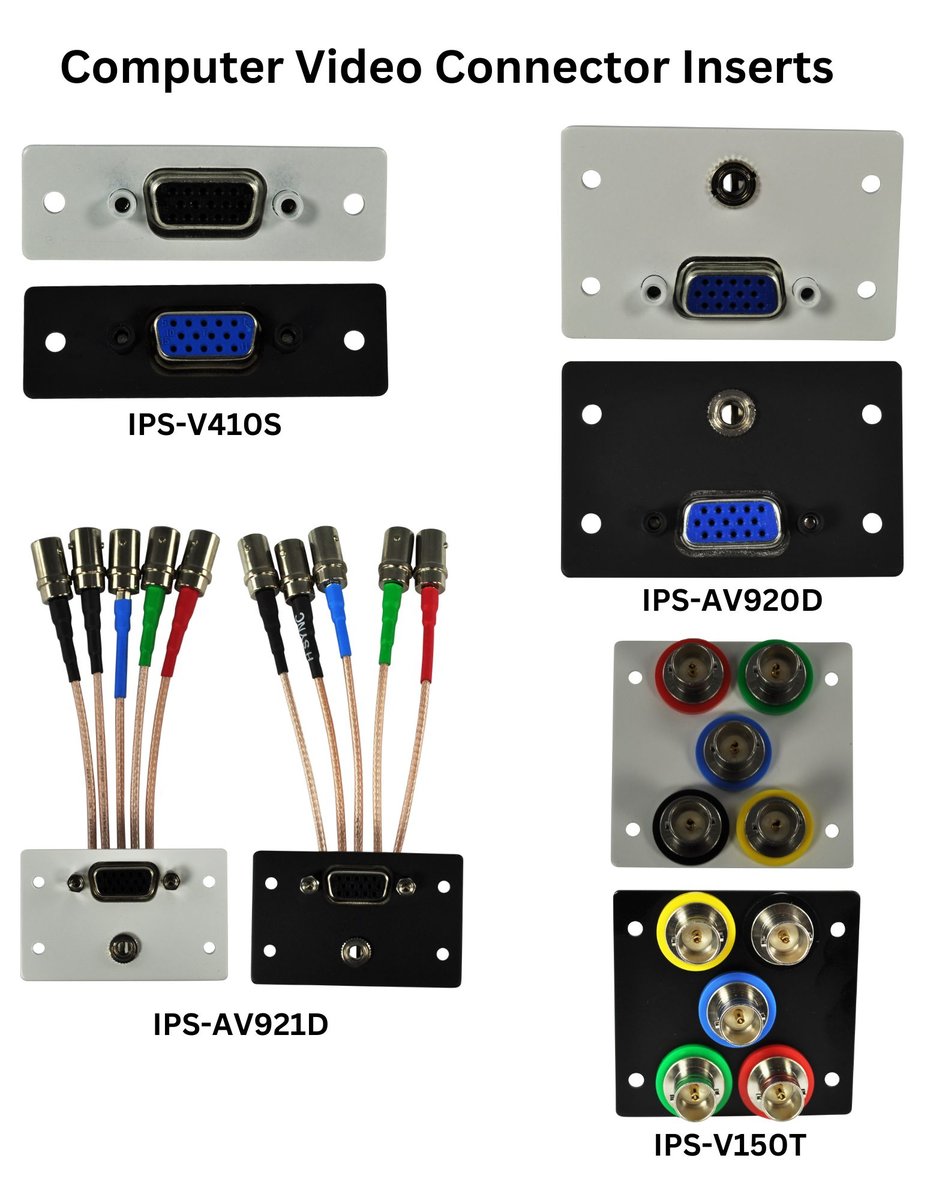

Double-height HD-15 inserts, bulkhead or 5-BNC breakout, each with a mini stereo audio tail.

Both parts here are the analog computer video connection for an IPS plate, and both take two IPS positions. The AV920D is the straight pass-through: an HD-15 female bulkhead front and back, with a 3.5mm mini stereo jack terminated to solder for the program audio that travels with it.

The AV921D swaps the rear HD-15 for a five-BNC breakout, so an RGBHV run built on coax lands directly on the plate without an adapter block behind the wall. Mini stereo audio is handled the same way. Both inserts sit flush in IPS wall plates, under-table enclosures and the IPS-RK12 rack mount, and both are stocked in white and black with labeled -LB versions.

Series	FSR Intelligent Plate Solutions (IPS)
Insert Type	Computer video connector inserts
Connector Types	HD-15, BNC, 3.5mm mini stereo
Terminations	HD-15 female bulkhead, 5-BNC breakout, mini stereo to solder
Insert Height	Double height, 2 IPS positions
Insert Finishes	White and black
Mounting	FSR IPS wall plates, IPS under-table enclosures, IPS-RK12 1RU rack mount
Wall Plate Material	1/4 in thick milled aluminum, inserts mount flush
Labeling Option	-LB part numbers ship as labeled inserts
Applications	Classrooms, lecterns, boardrooms, conference rooms, lobbies, hotels, hospitals, houses of worship, control rooms, airports
