FSR IPS Voice and Data Connector Inserts

Name: FSR IPS Voice and Data Connector Inserts
Brand: FSR
SKU: IPS-D710S-BLK
Availability: InStock

$52.00

IPS-D710S-BLK

Choose an option

CAT 5e through shielded CAT 6A, RJ-11, USB A and B, and ST and LC fiber, all on the one insert format.

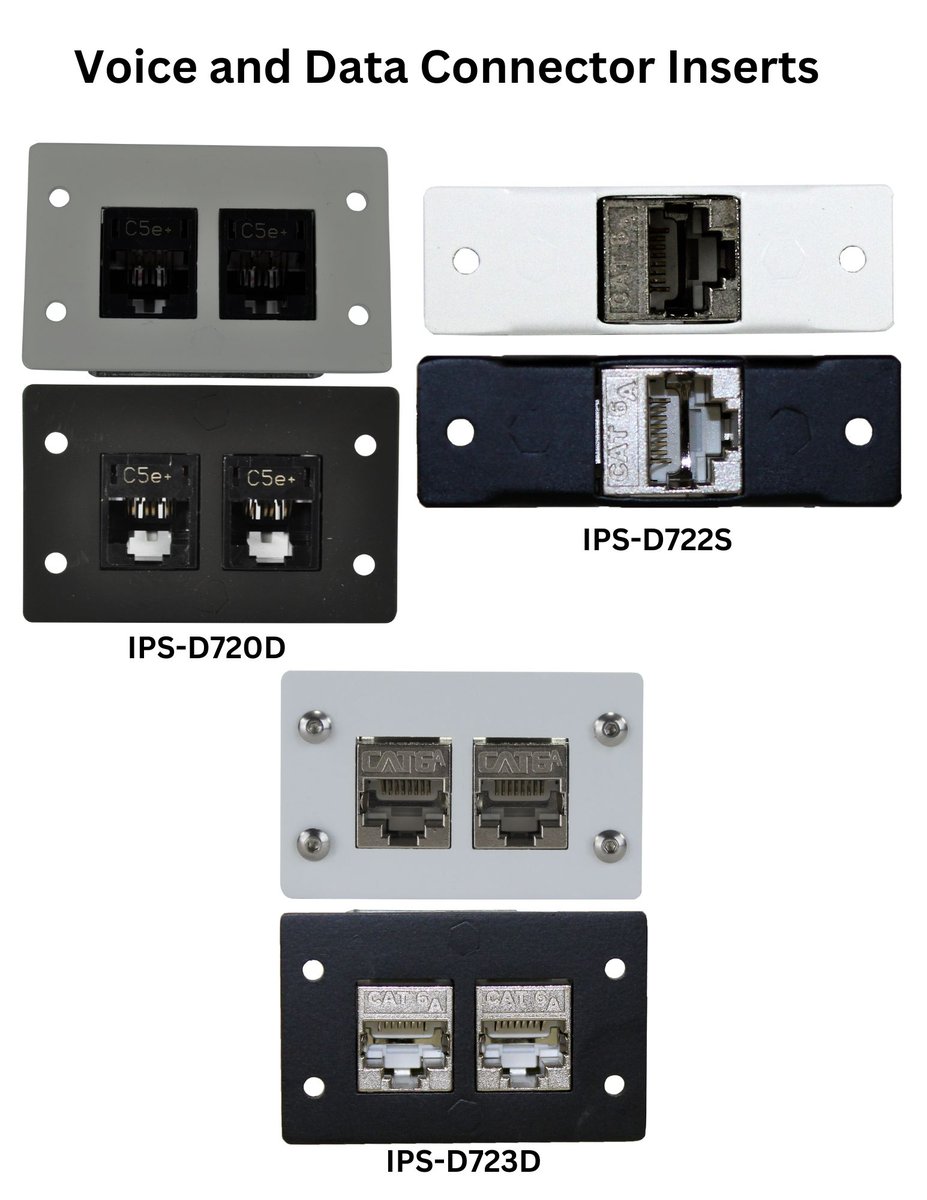

The voice and data inserts are the ones that get specified most often, because every plate in a classroom or huddle room ends up with at least one network position. FSR builds them across the whole copper range: CAT 5e and CAT 6 punch down on the D710S and D711S, CAT 6 bulkhead on the D713S, shielded CAT 6A on the D722S, and RJ-11 for voice on the D714S. The D720D, D721D and D723D double them up on a two-position module.

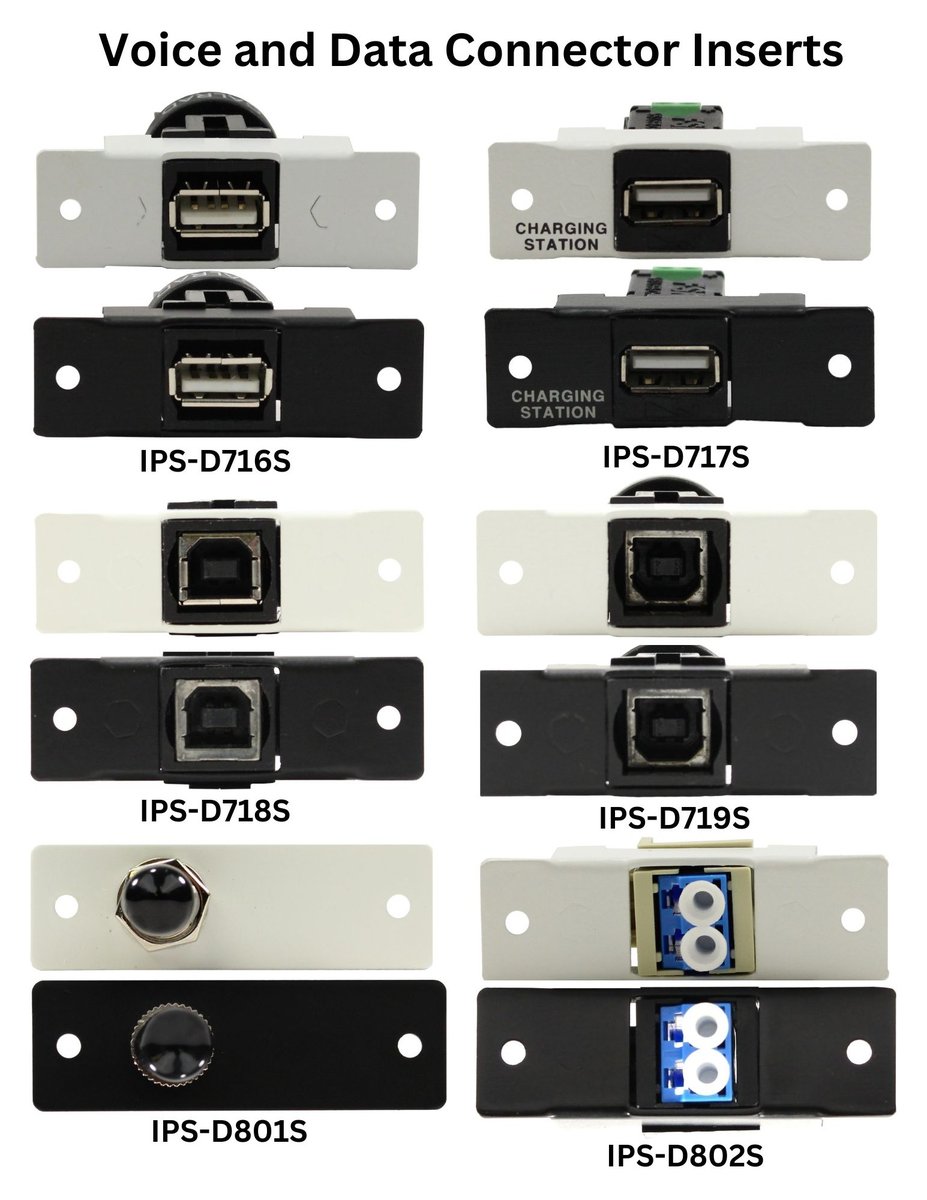

USB is handled by four parts, bulkhead or hardwired, in both A and B; fiber by the D801S ST bulkhead and the D802S dual LC bulkhead. Punch down parts terminate behind the plate with no patch tail, and bulkhead parts pass a finished cable straight through. Everything mounts flush in IPS wall plates, under-table enclosures and the IPS-RK12 rack mount, in white or black, with labeled -LB versions where FSR offers them.

Series	FSR Intelligent Plate Solutions (IPS)
Insert Type	Voice and data connector inserts
Copper Formats	RJ-45 CAT 5e, CAT 6, shielded CAT 6A, RJ-11
Other Formats	USB A, USB B, fiber ST, dual fiber LC
Terminations	Punch down, bulkhead, hardwired
Insert Heights	Single and double height
Insert Finishes	White and black
Mounting	FSR IPS wall plates, IPS under-table enclosures, IPS-RK12 1RU rack mount
Wall Plate Material	1/4 in thick milled aluminum, inserts mount flush
Labeling Option	-LB part numbers ship as labeled inserts
Applications	Classrooms, lecterns, boardrooms, conference rooms, lobbies, hotels, hospitals, houses of worship, control rooms, airports
