FSR IPS Control Connector Inserts

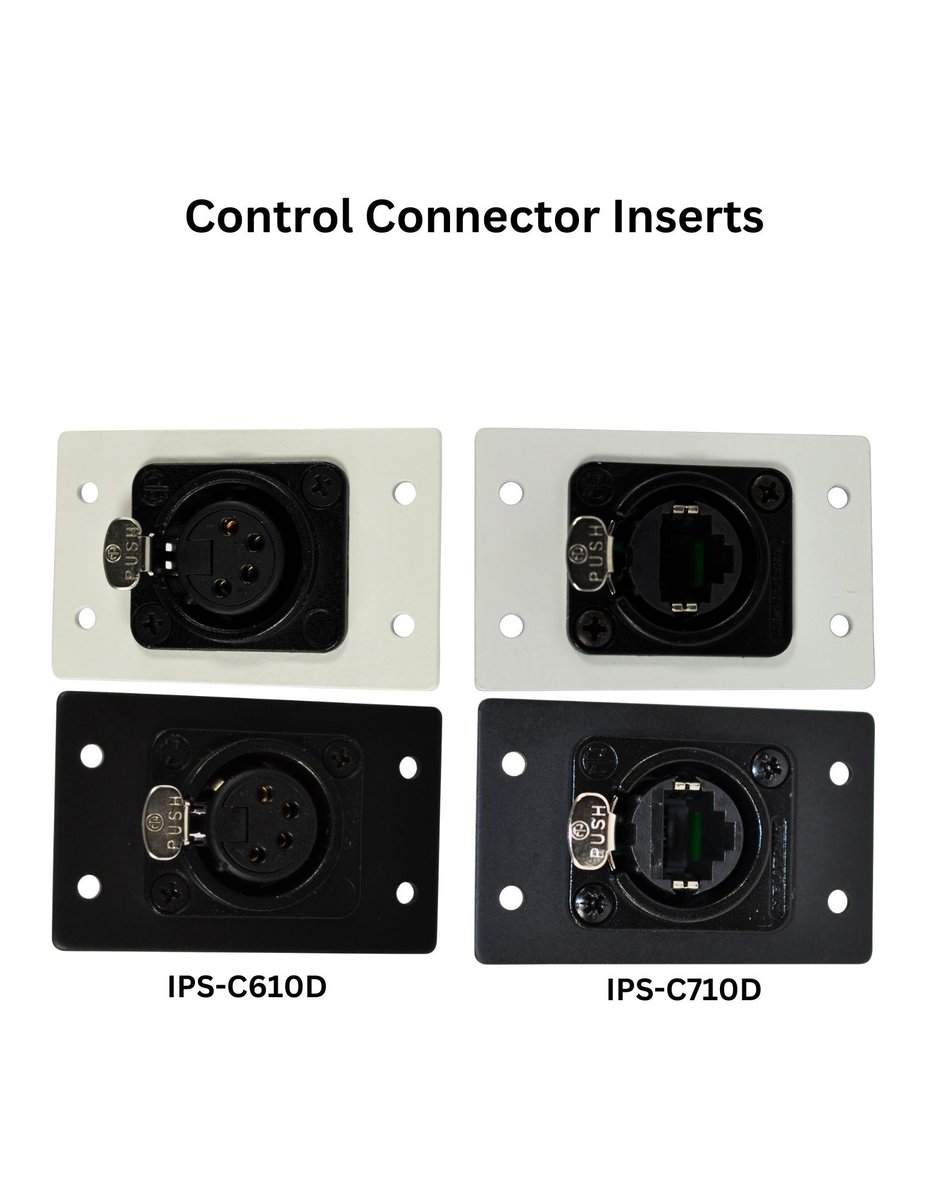

Control runs and intercom drops need different connectors than program audio, and the IPS control inserts cover them without a custom panel. The C410S and C411S both front a 9-pin D male, one carried straight through to a female bulkhead and one landing on solder cups behind the plate. The C610D takes a 4-pin XLR female to solder on a double-height module, and the C611S puts a mini 4-pin XLR male on a cap screw terminal.

The C710D is the ruggedized network position: a Neutrik EtherCon RJ-45 on a double-height insert, for the touring and stage work where a bare RJ-45 will not survive. The C910S and C920S give a plate one or two momentary switches. All seven fit IPS wall plates, under-table enclosures and the IPS-RK12 rack mount, and are stocked in white and black.
