FSR IPS Video Connector Inserts

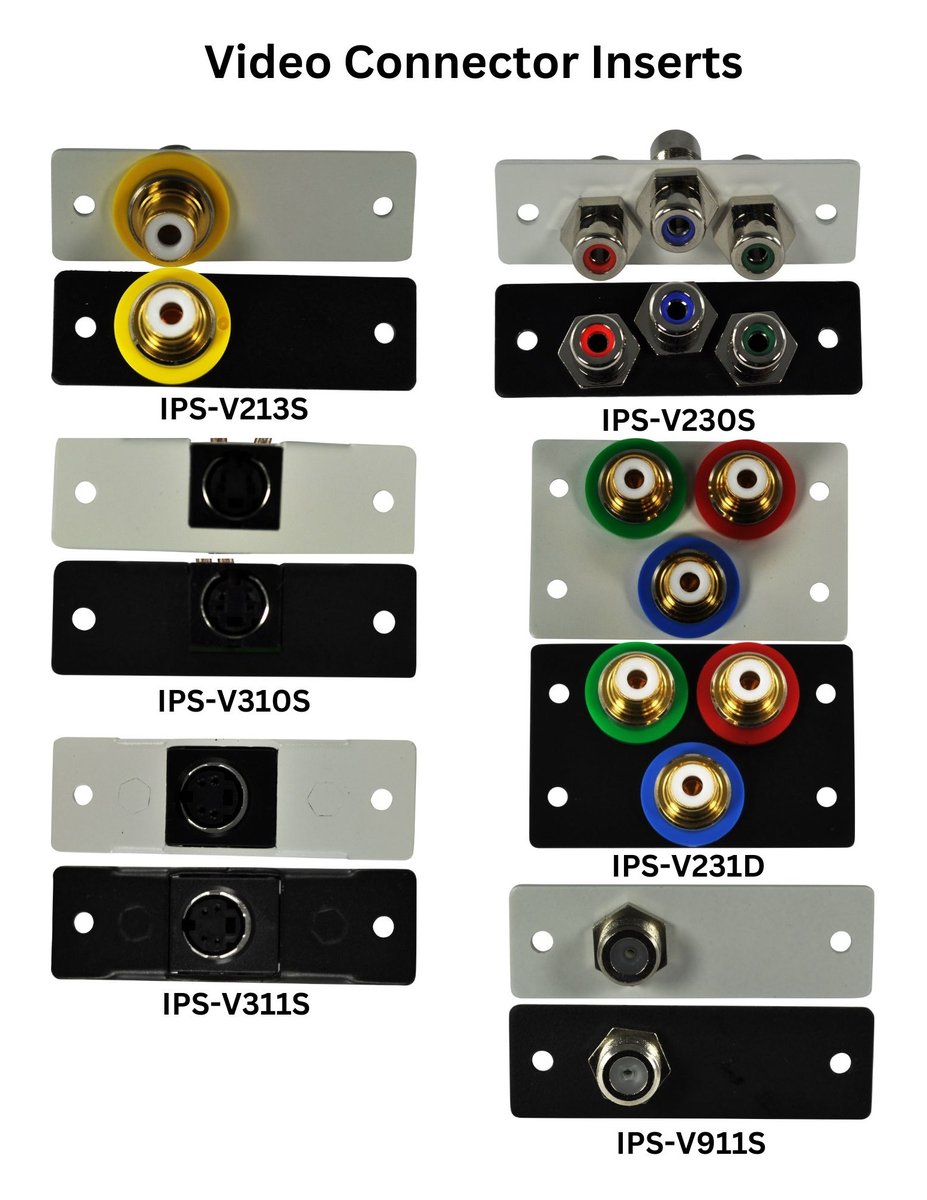

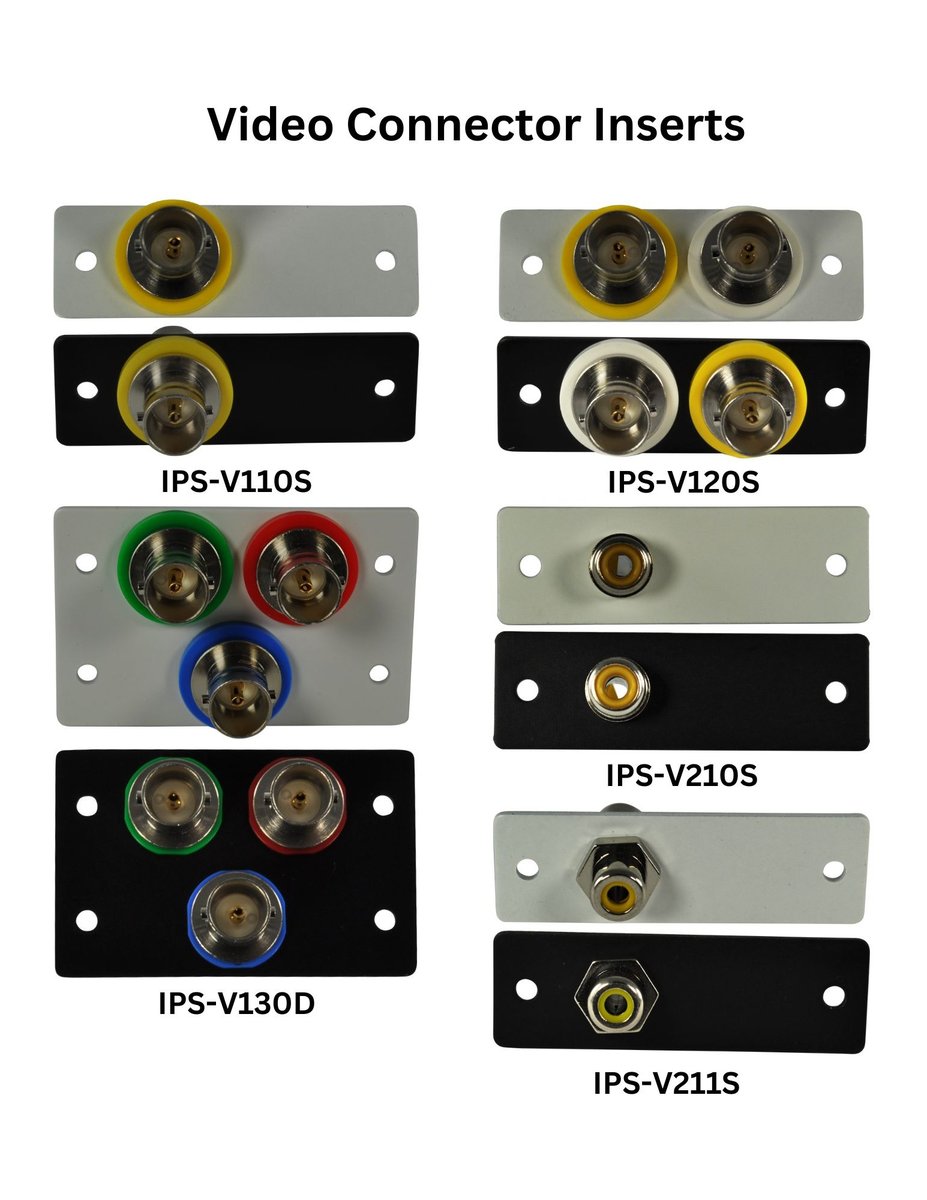

This is the video half of the IPS insert range, from a single composite RCA on one IPS position up to a triple-height DVI-I bulkhead. Composite and component work is covered by the V213S, V230S and V231D, with RCA on the front and either RCA or BNC on the rear so a plate can meet whichever cable the room was wired with. The V120S, V130D and V150T are the all-BNC parts, the V150T carrying a full five-BNC RGBHV set across three IPS positions.

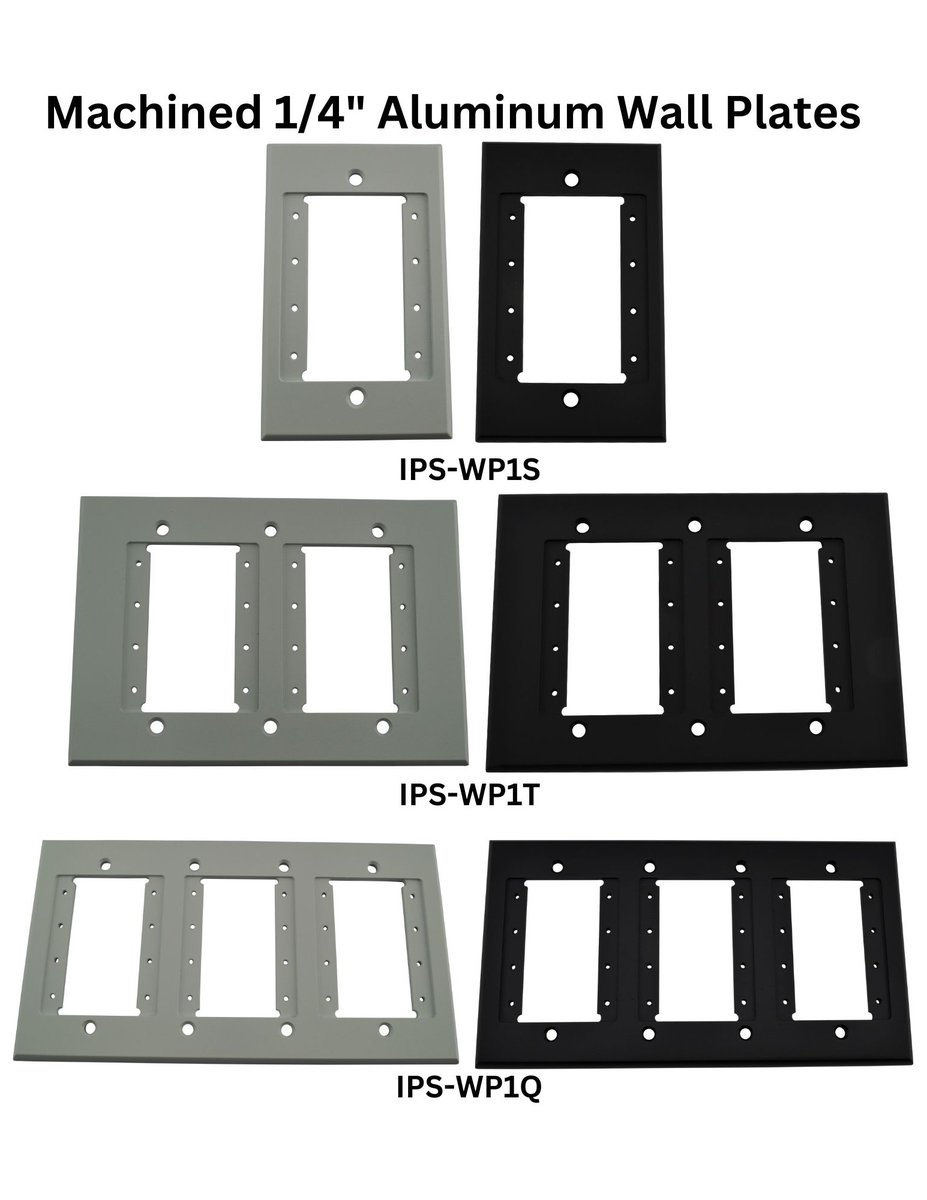

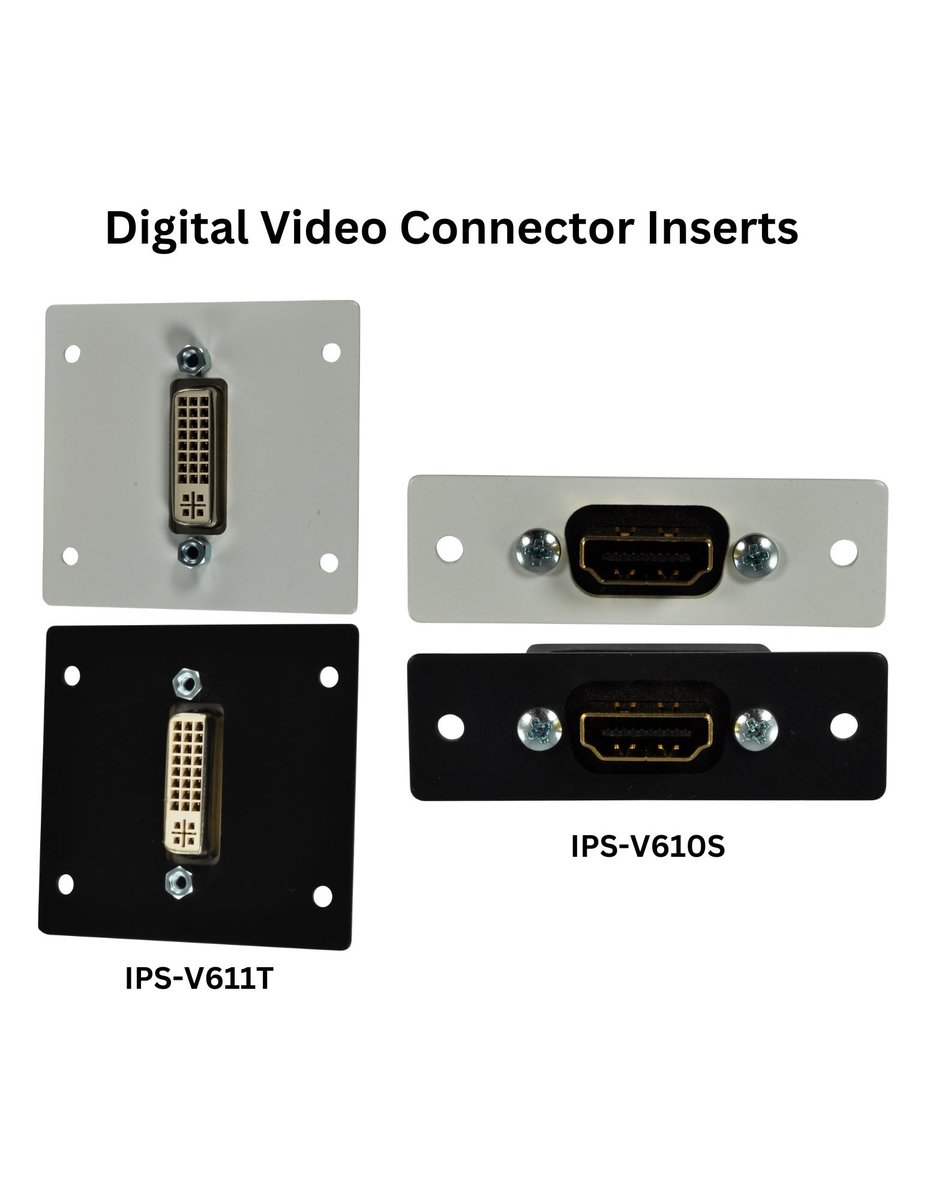

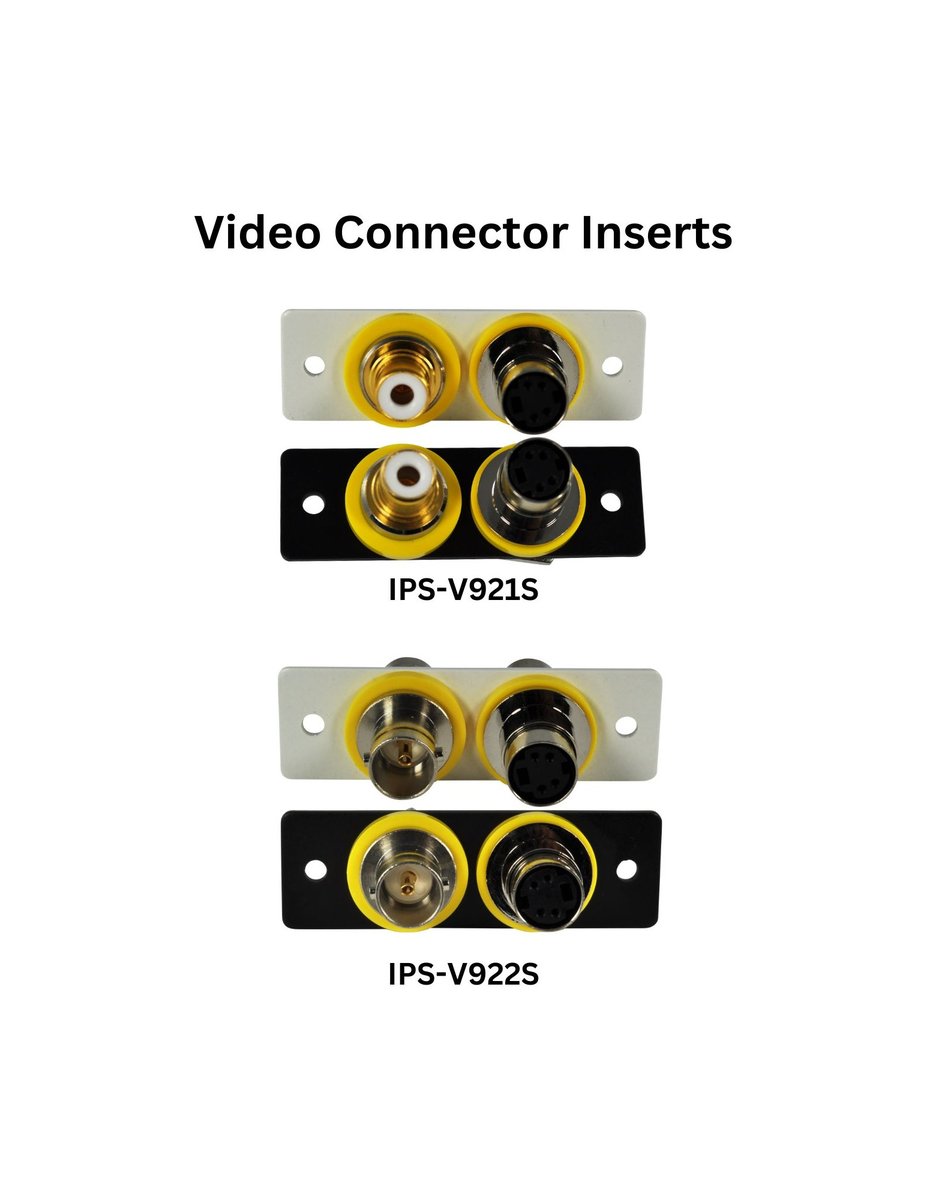

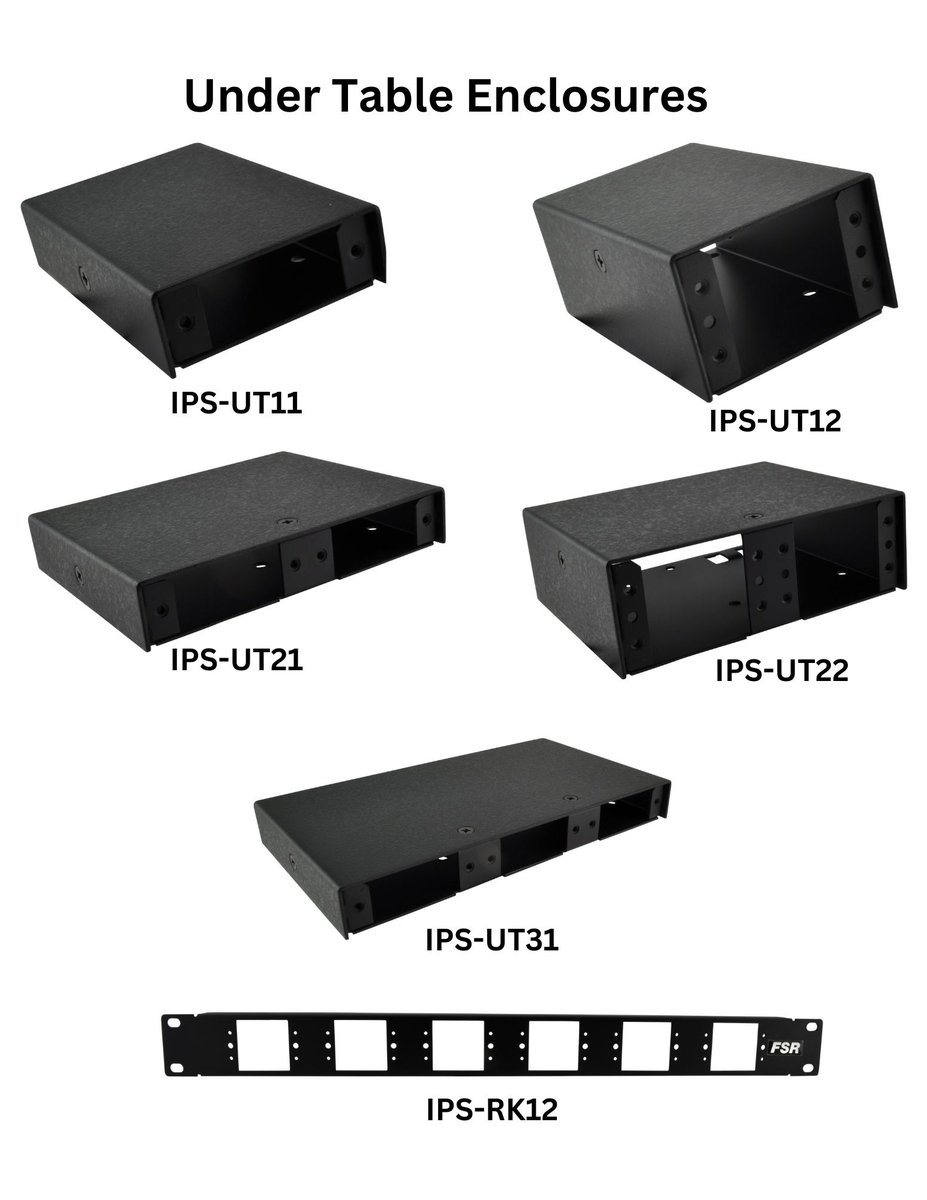

S-Video appears on its own with the V311S and combined with a composite or BNC feed on the V921S and V922S, and the V310S breaks S-Video out to two BNC. For digital sources the V610S is a single-height HDMI female bulkhead and the V611T a triple-height DVI-I female bulkhead. Every insert mounts flush in IPS wall plates, under-table enclosures and the IPS-RK12 rack mount, in white or black, with labeled -LB versions on the parts FSR labels.
