FieldCast Adapter Four

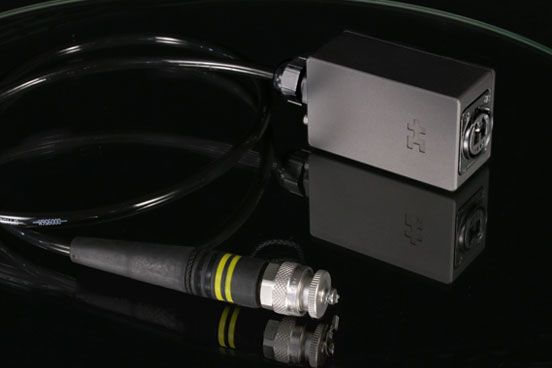

Adapter Four does for four-fiber runs what Adapter Three does for two: it bridges an existing Neutrik opticalCON Quad cable drum to FieldCast 4Core infrastructure so a venue's installed opticalCON Quad plant can carry FieldCast signal without a cable swap. A color-coded 4Core single-mode male connector on a one-meter outlet cable with pull relief connects to the black Neutrik opticalCON Quad connector on the other side of the adapter.

Inside the pearl-blasted, anodized aluminum housing, a custom bend-insensitive patch cable splits out to four standard PC-polished LC connections at the back of the opticalCON Quad connector. A quarter-inch steel insert with two M3 taps 47mm apart gives it a solid mounting point, and multimode 50/125 OM3 fiber is available on request.
