FieldCast Adapter Six

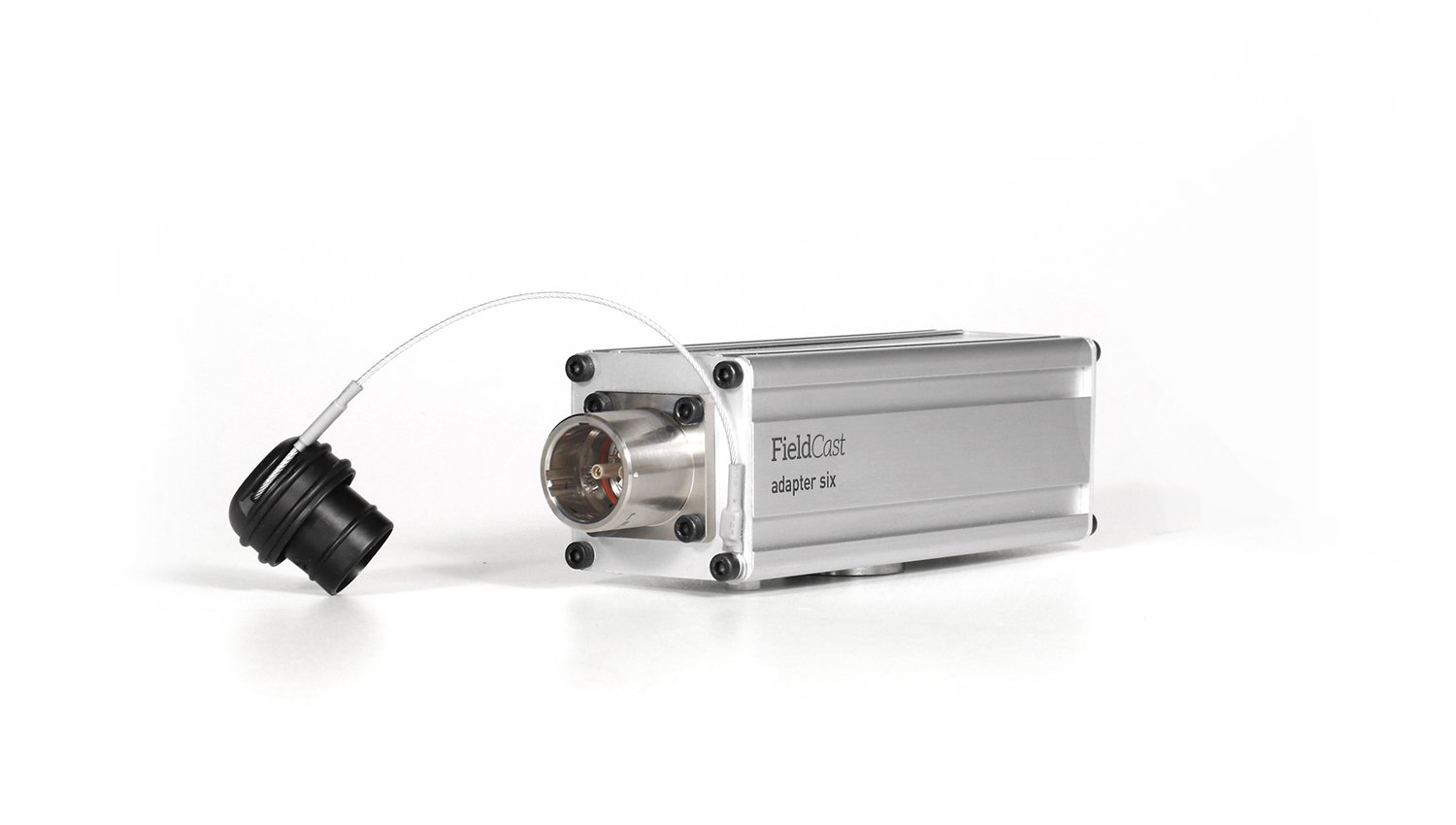

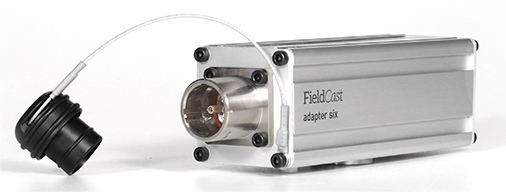

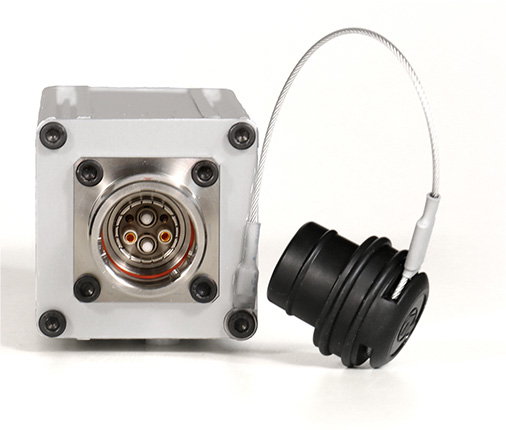

Adapter Six is the complementary connector to Adapter Five, using a Lemo Male EDW chassis connector on one side and an internally dust-capped Senko LC Duplex connection on the other so crews can bridge either gender of SMPTE 311M/304-style broadcast fiber cable into FieldCast LC infrastructure. It shares the same pearl-blasted, silver-anodized aluminum housing and compact footprint as Adapter Five.

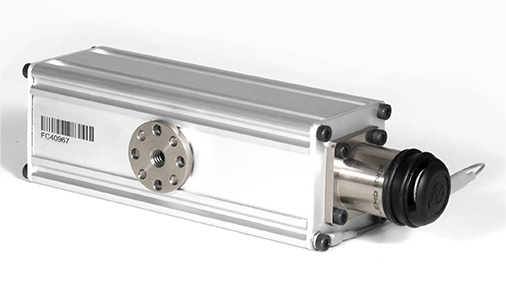

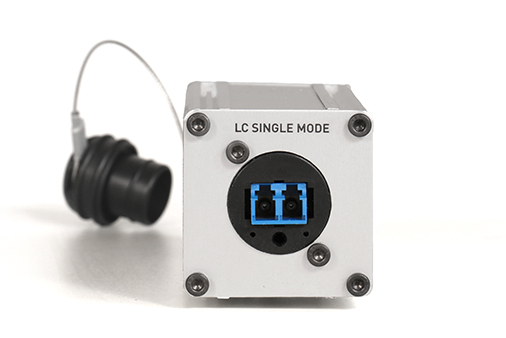

Inside, the LC/UPC outlet of the Lemo Male EDW assembly (UNF.3K.93C.EDW.025 / EDW.3K.93C) routes directly to the Senko LC Duplex connection over single mode 9/125 fiber. A quarter-inch-20 round screw plate provides a solid mounting point on cases, panels, or camera rigs.
