FieldCast Adapter Five

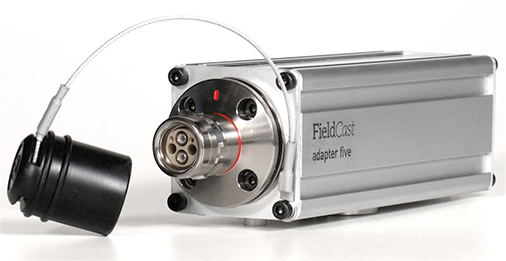

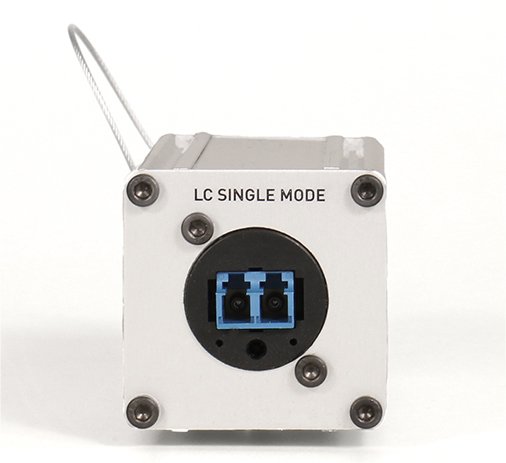

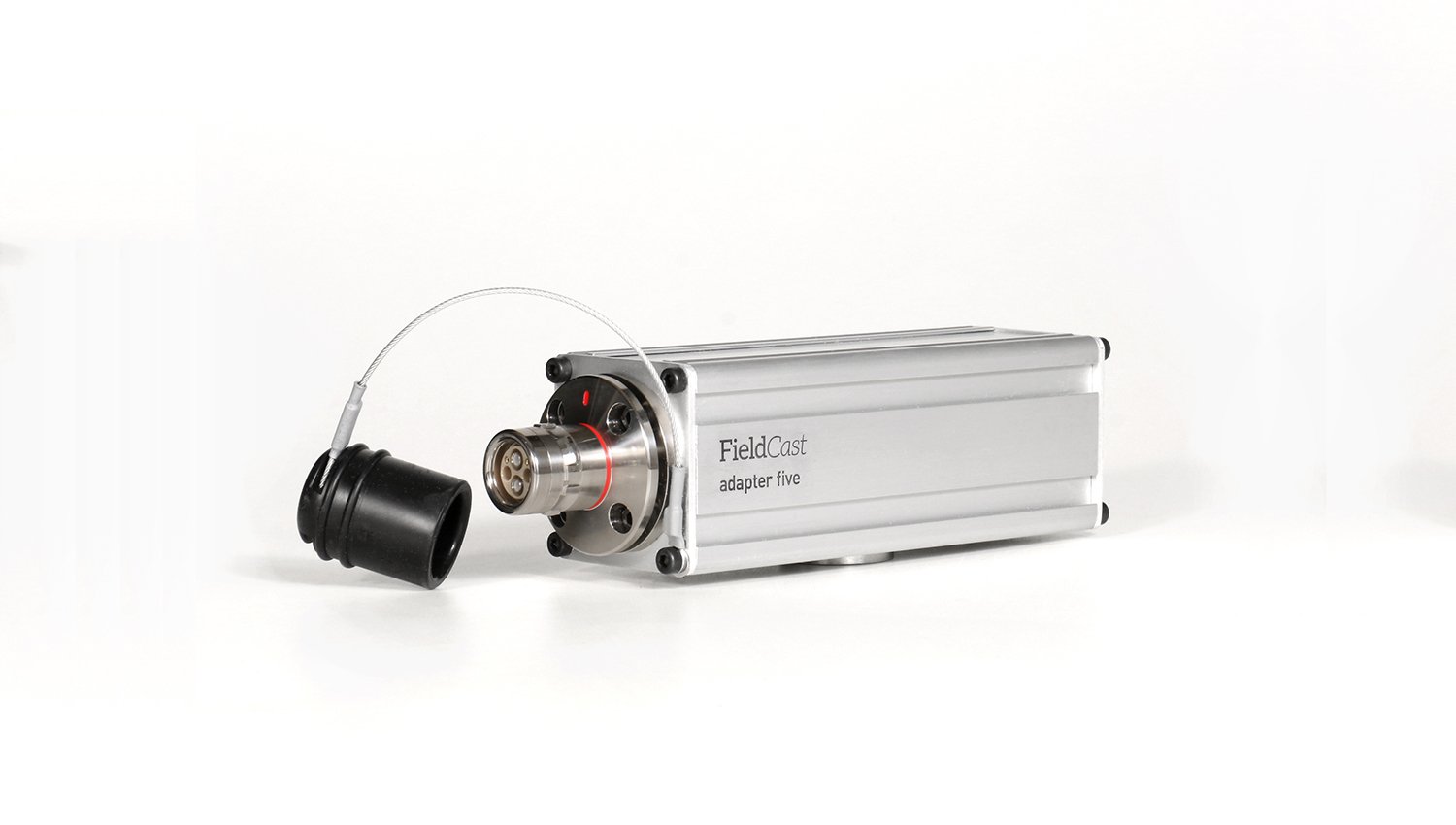

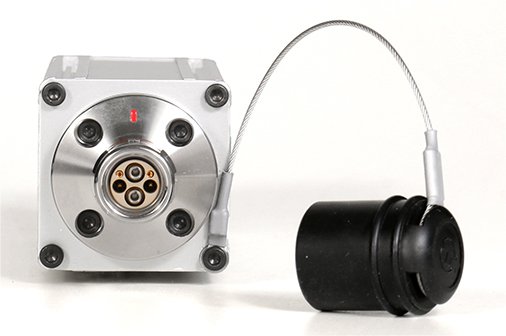

Adapter Five connects an SMPTE 311M/304 fiber camera cable to FieldCast LC infrastructure, using a Lemo Female FXW chassis connector on one side and an internally dust-capped Senko LC Duplex connection on the other. It's built for crews standardizing on FieldCast LC gear while still needing to plug in cable built around the broadcast-standard Lemo FXW connector.

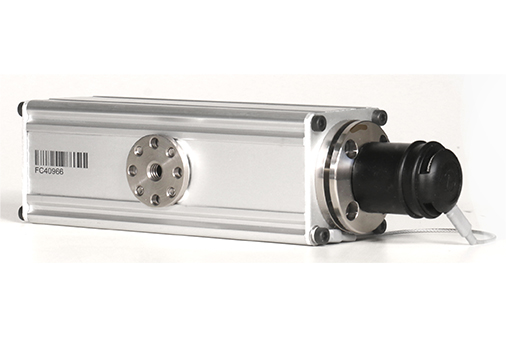

The pearl-blasted, silver-anodized aluminum housing routes the LC/UPC outlet of the Lemo assembly (UNF.3K.93C.FXW.019 / FXW.3K.93C) straight to the Senko LC Duplex connection over single mode 9/125 fiber. A quarter-inch-20 round screw plate gives it a solid mounting point in a compact 156 x 40 x 42mm body.

Material	Rugged milled aluminum case, pearl-blasted, silver anodized
Fiber Connector	Lemo Female FXW chassis connector to Senko LC Duplex
Fiber Type	Single mode 9/125
Internal Fiber Patching	LC/UPC outlet of Lemo FXW assembly to Senko LC Duplex
Mounting	1/4-inch-20 round screw plate
Weight	240 grams
Dimensions	156 x 40 x 42 mm
