Electro-Voice PXM-12MP Powered Coaxial Monitor

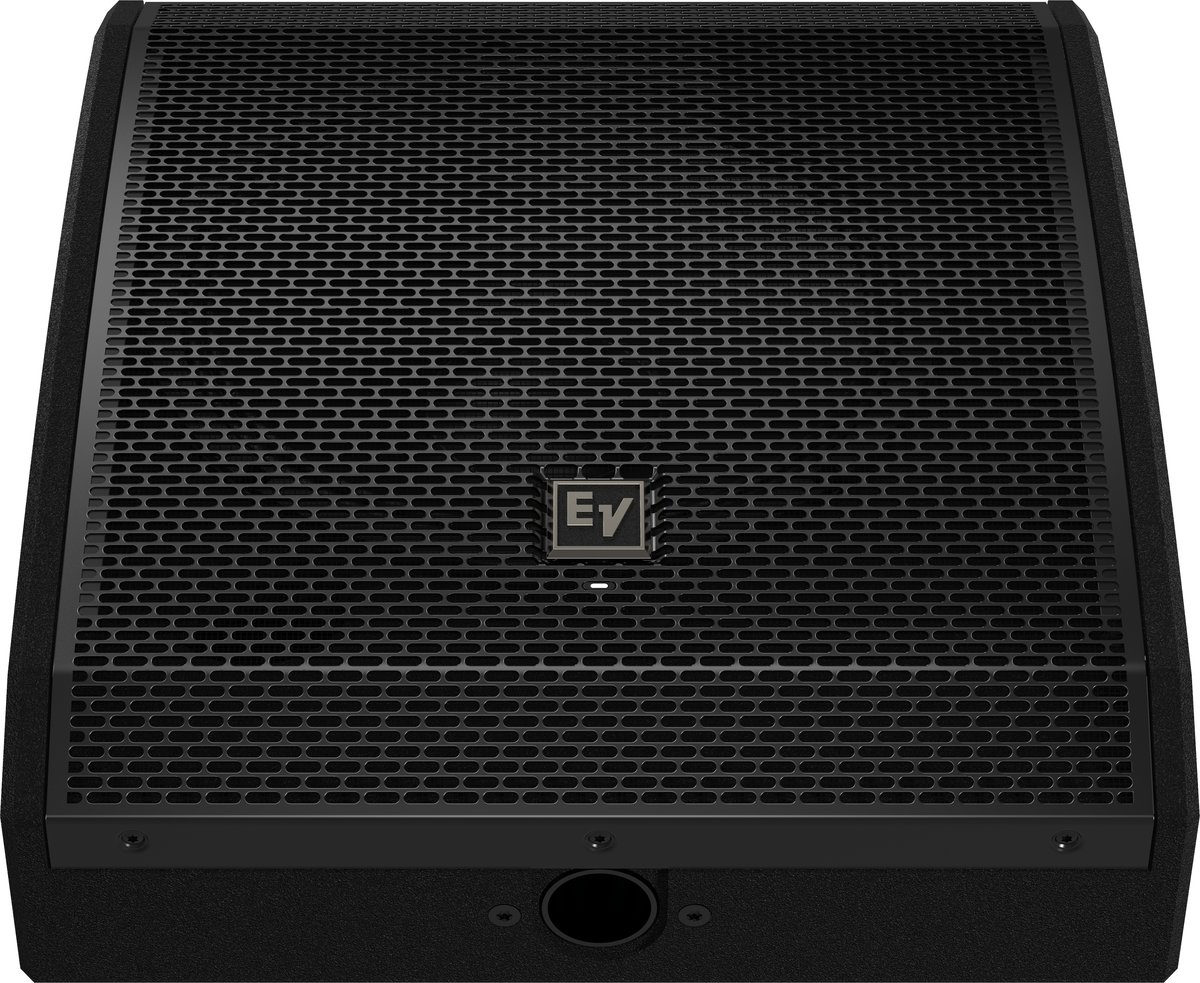

The PXM-12MP is a 12 inch coaxial powered cabinet cut for monitor duty: the wedge face sits at 55 degrees, and the single coaxial transducer keeps the source in one place so a performer moving across the wedge hears the same thing throughout. Stand it upright on a pole and it works as a main instead.

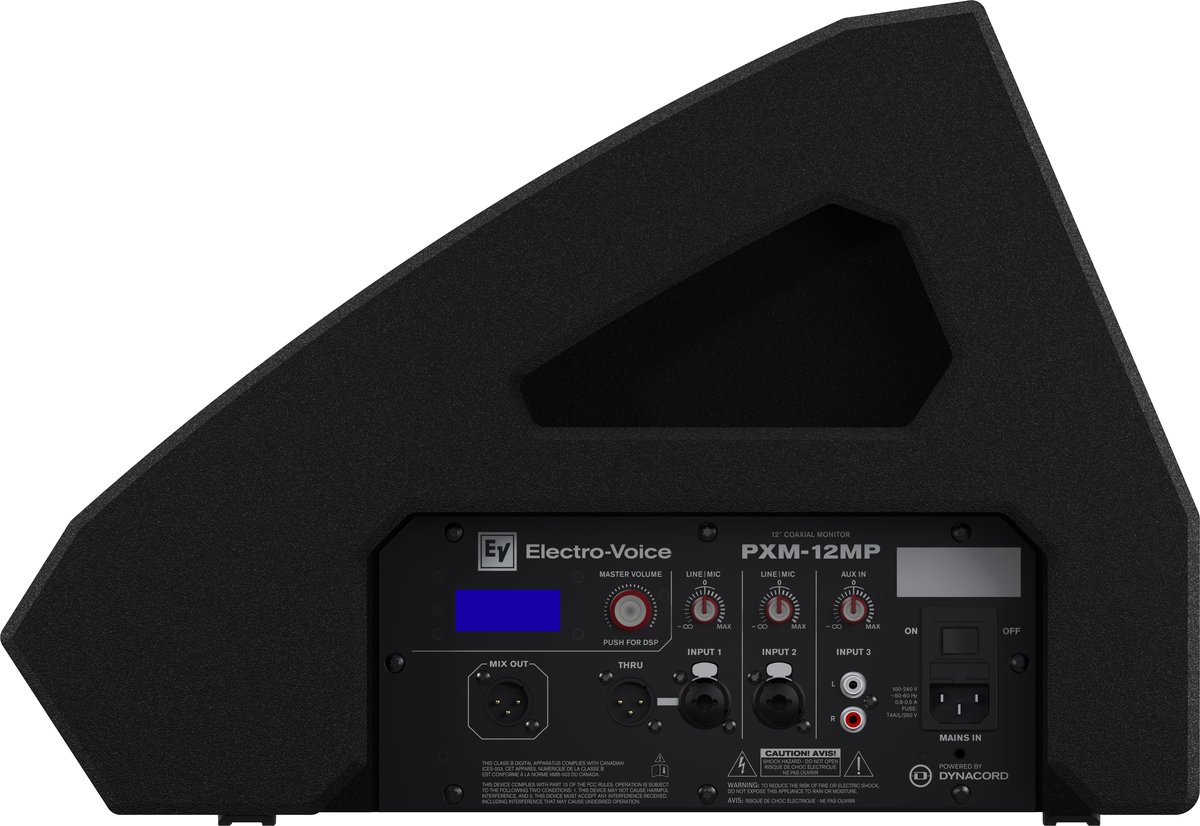

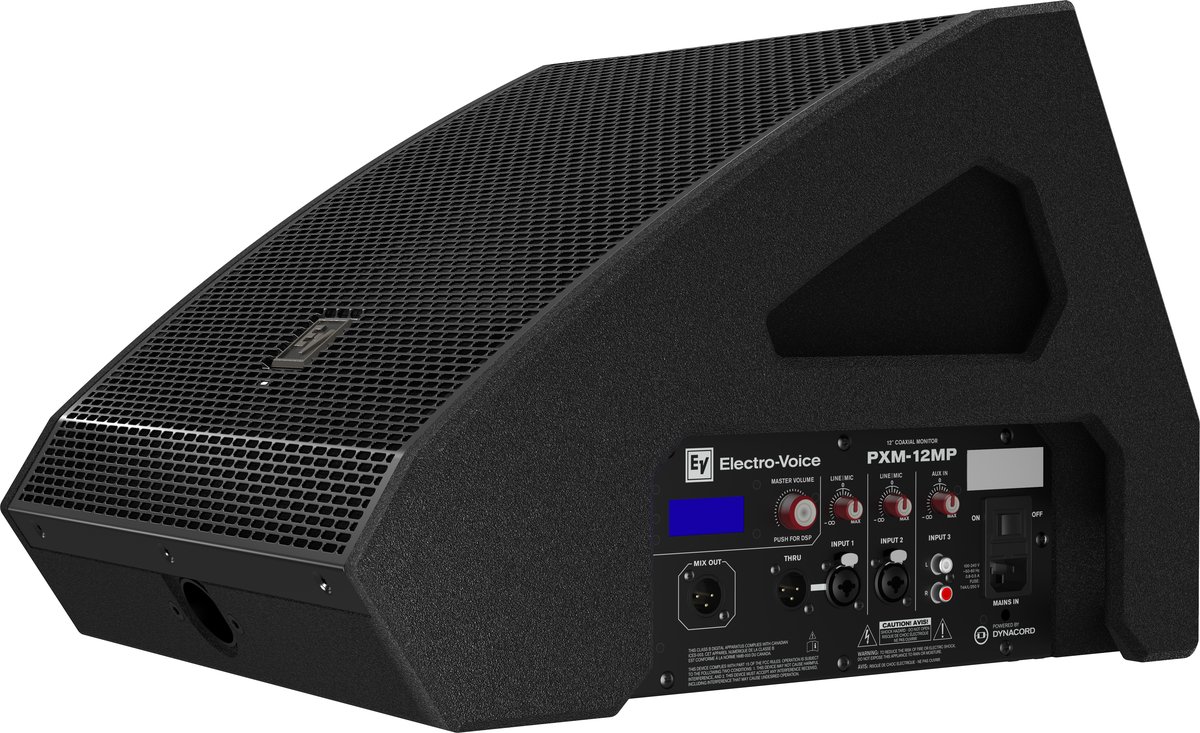

A 700 W Class-D amplifier designed by Dynacord drives it, with QuickSmartDSP handling four presets, sub and top matching, three-band EQ, five user presets, limiter status, input metering and master gain from the LCD. A GUITARCAB setting voices it for a guitar rig. Inputs are two XLR/TRS combo, a stereo RCA pair and an XLR through.

Frequency response (-3 dB)	64 Hz - 20 kHz
Frequency range (-10 dB)	53 Hz - 20 kHz
Maximum SPL	129 dB
Coverage (H x V)	90˚ x 90˚
Monitor angle	55°
Amplifier rating	700 W

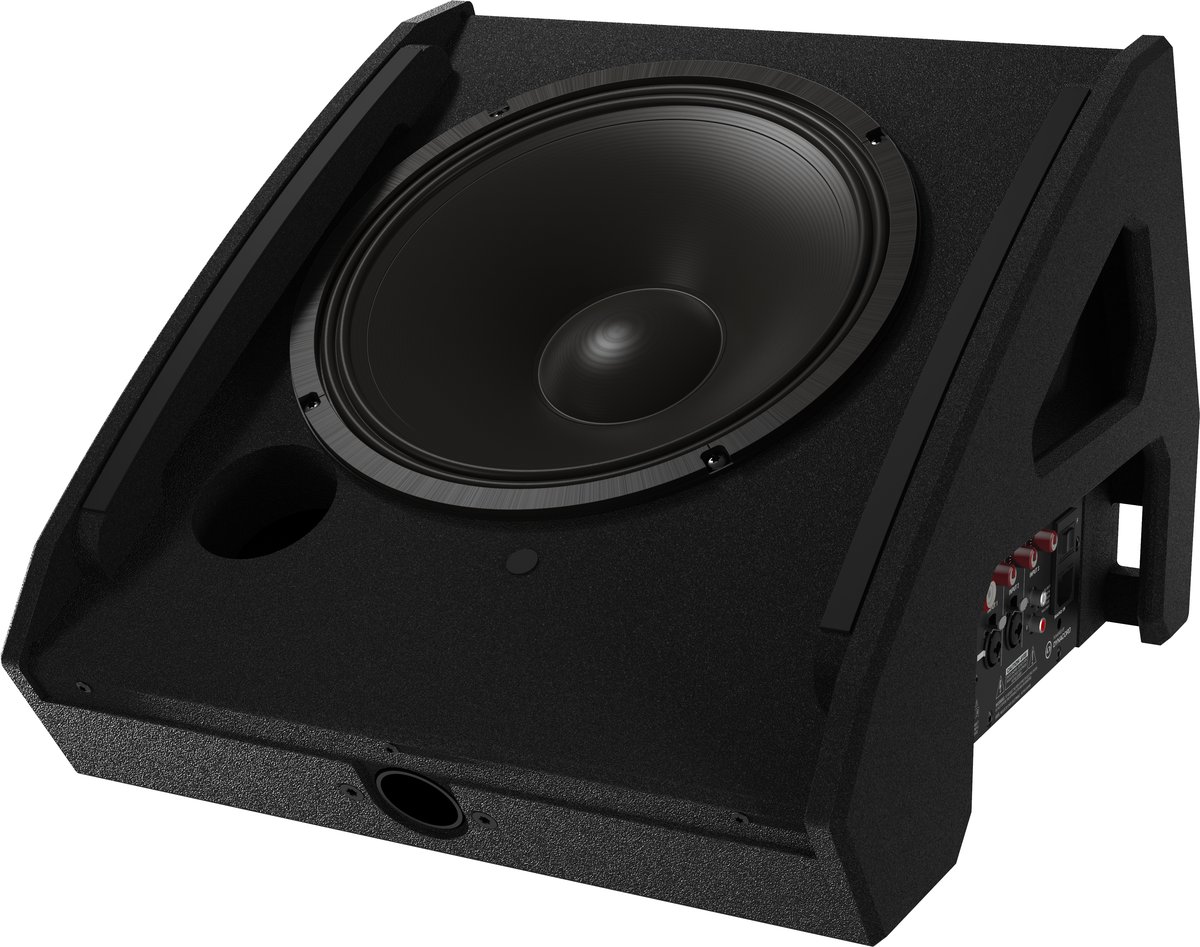

Transducer	CXCA2128-1NA 12” / 1.75” 2-way coaxial
Crossover frequency	1.6 kHz
Connectors	2x XLR/TRS combo input, 1x Stereo RCA input, 1x XLR THRU input
Dimensions (H x W x D)	334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in)
Net weight	13.5 kg (29.8 lb)
Power	100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A
