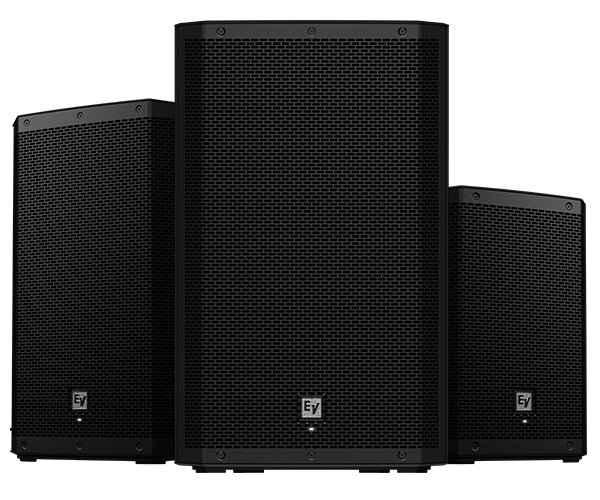

Electro-Voice ZLX-8P-G2 Powered Loudspeaker
The ZLX-8P-G2 is the powered 8 inch cabinet in the second-generation ZLX line. The Dynacord-designed Class-D amplifier and the onboard DSP do the work that used to need a rack: a small digital mixer with effects, feedback suppression, a ducker and parametric EQ sit behind the panel, and the QuickSmart Mobile app drives all of it from a phone.

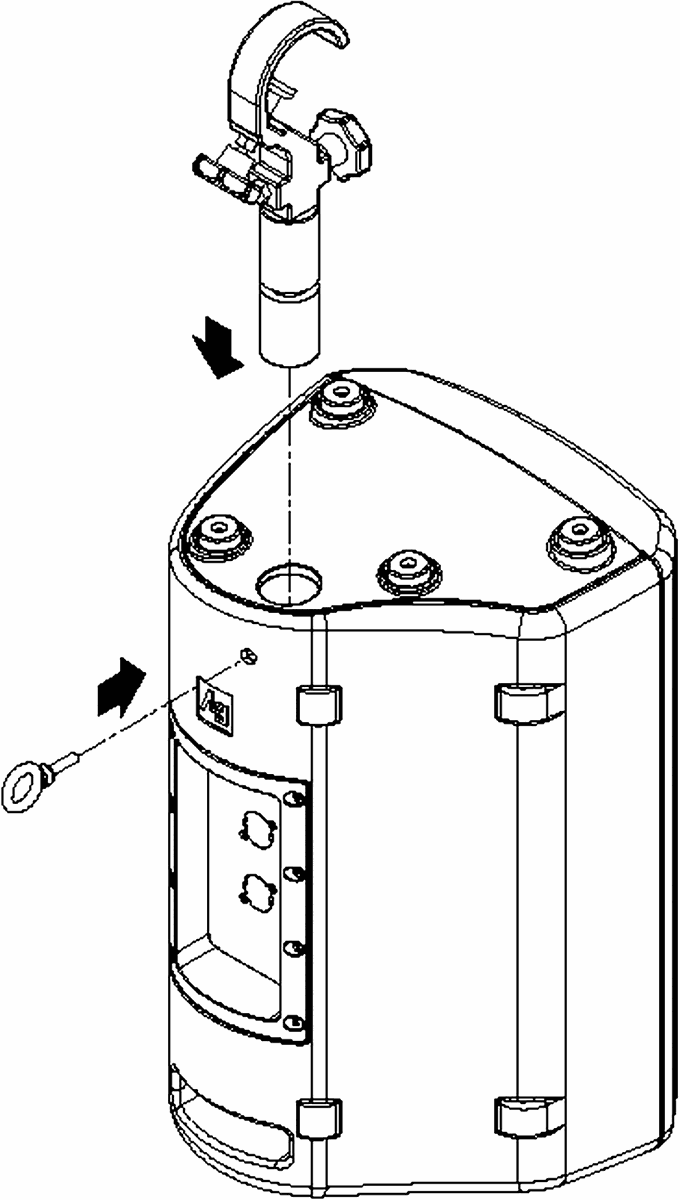

Bluetooth stereo streaming is built in for background music between sets. Pole-mount and M10 suspension points let the same box go on a stick, in the air, or on its side as a monitor. If you already own amplifiers, the passive ZLX-8-G2 covers the same cabinet without the electronics.
| Frequency response (-3 dB) | 58 Hz - 20,000 Hz |
|---|---|
| Frequency range (-10 dB) | 50 Hz - 20,000 Hz |
| Maximum SPL at 1 m | 126 dB |
| Coverage (H x V) | 90° x 60° |
| Crossover frequency | 1.40 kHz |
| Amplifier power | 1000 W |
| LF transducer | WECA2088 |
| HF transducer | DECA2516 |
| Dimensions (H x W x D) | 459.6 mm x 289.9 mm x 280.5 mm |
