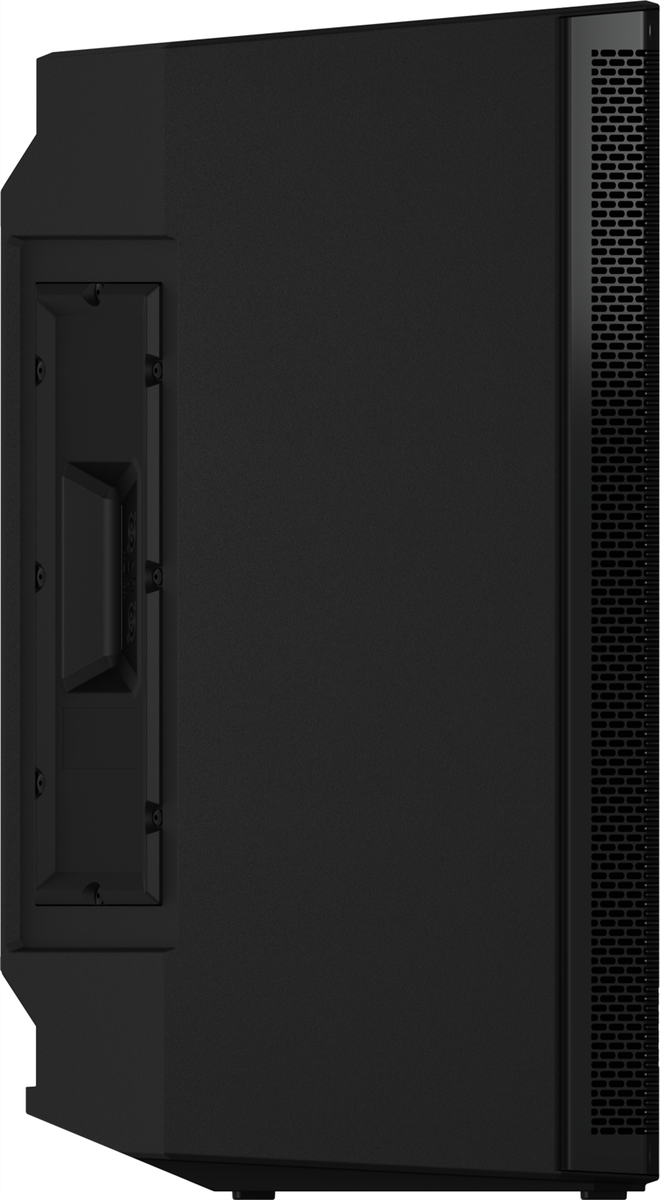

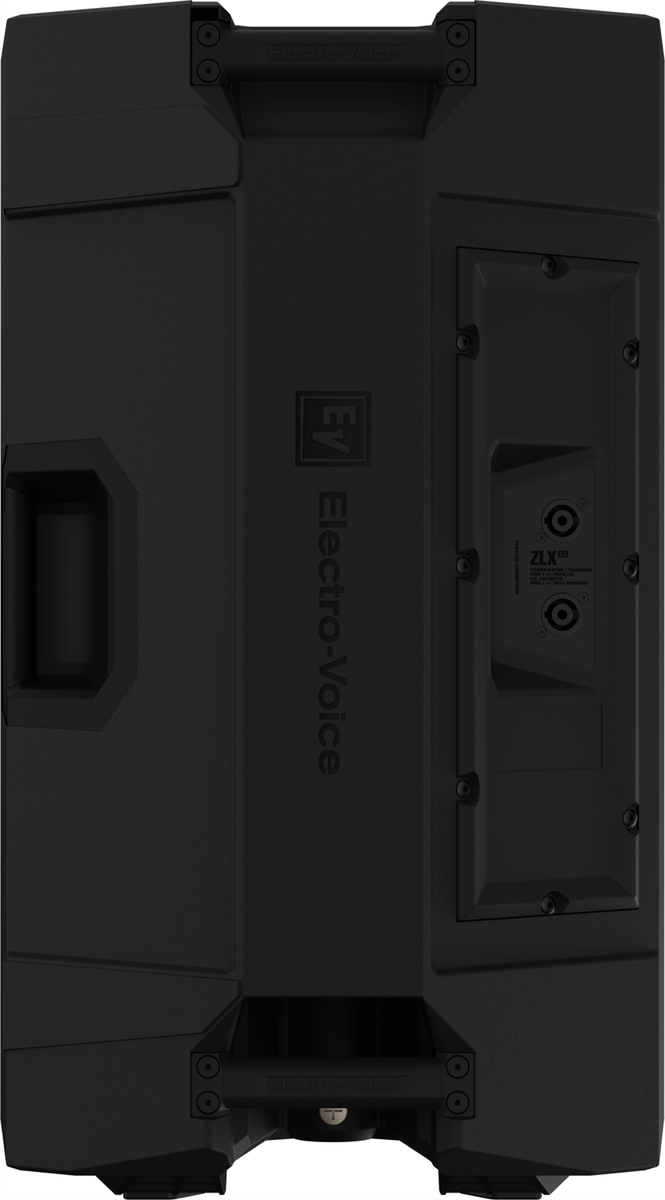

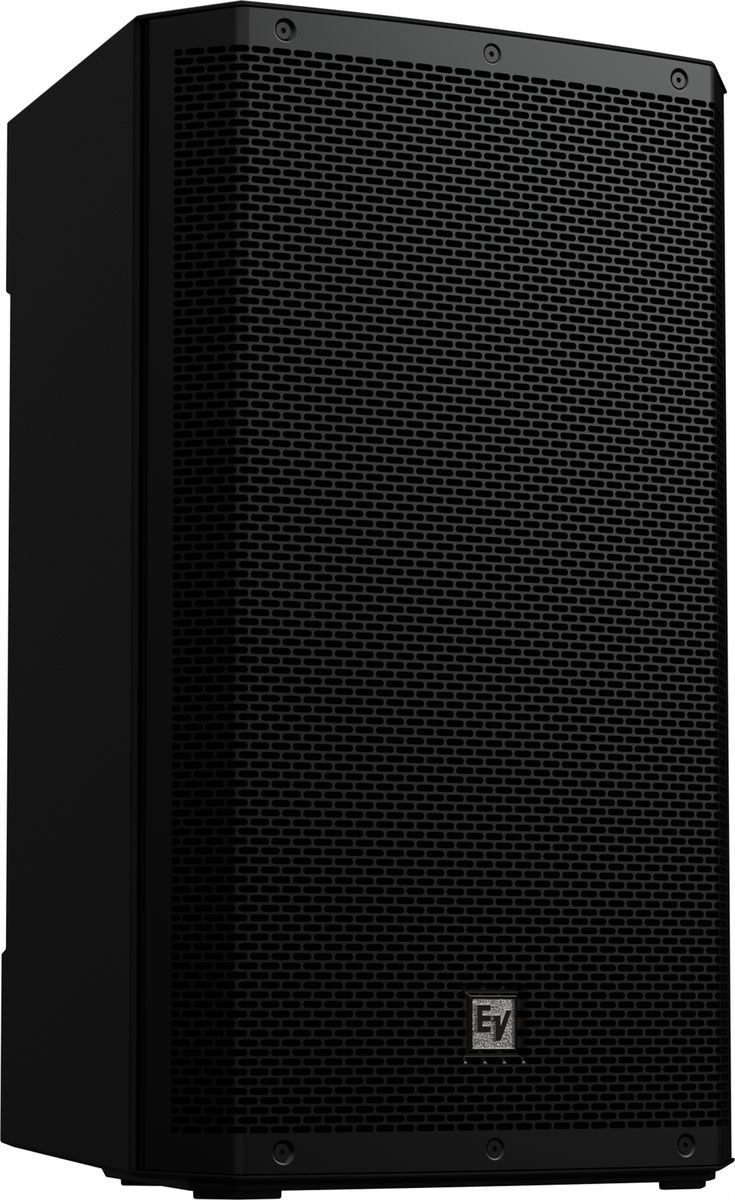

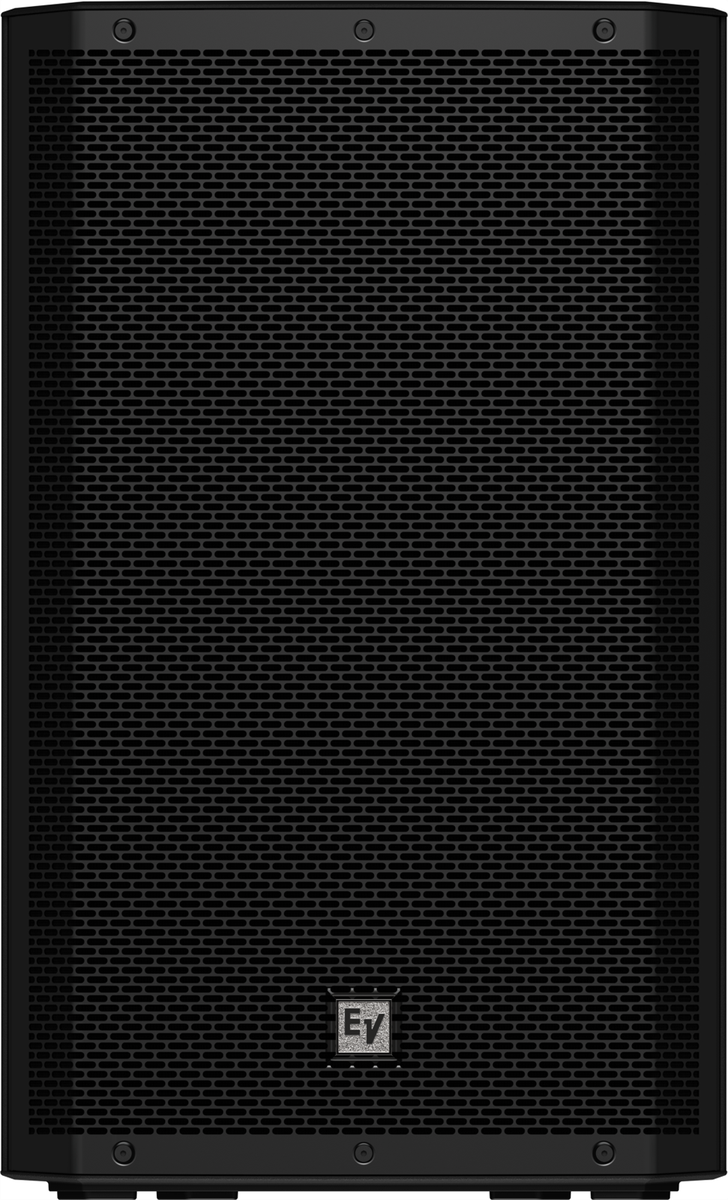

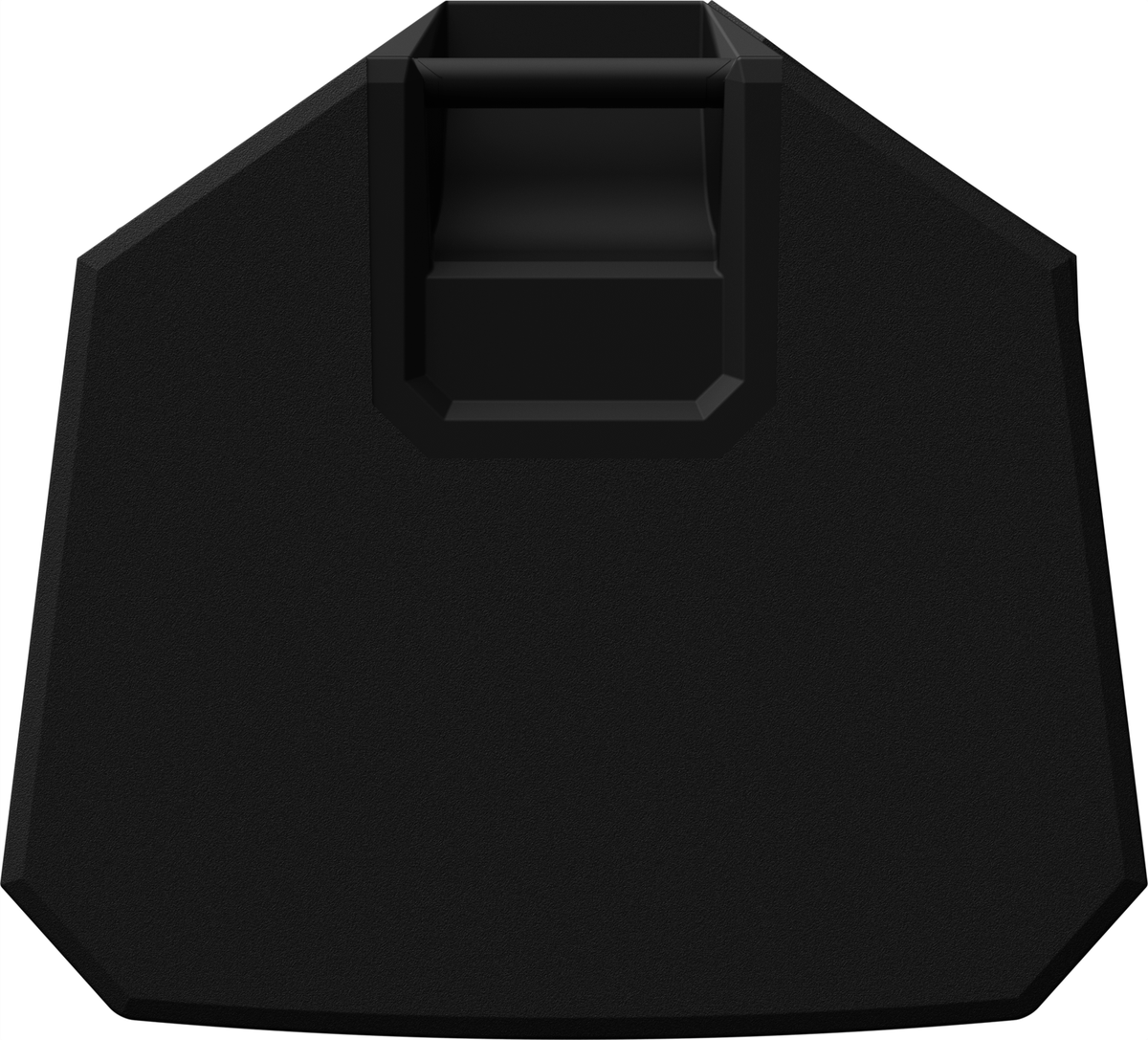

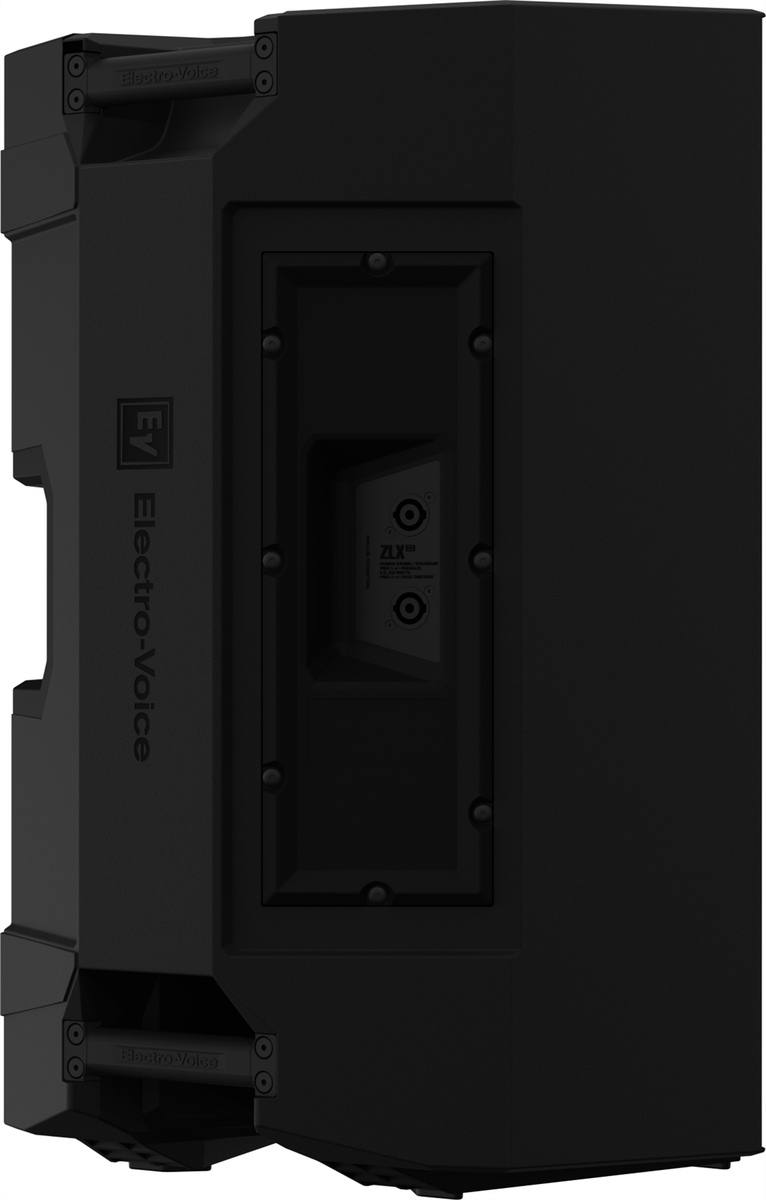

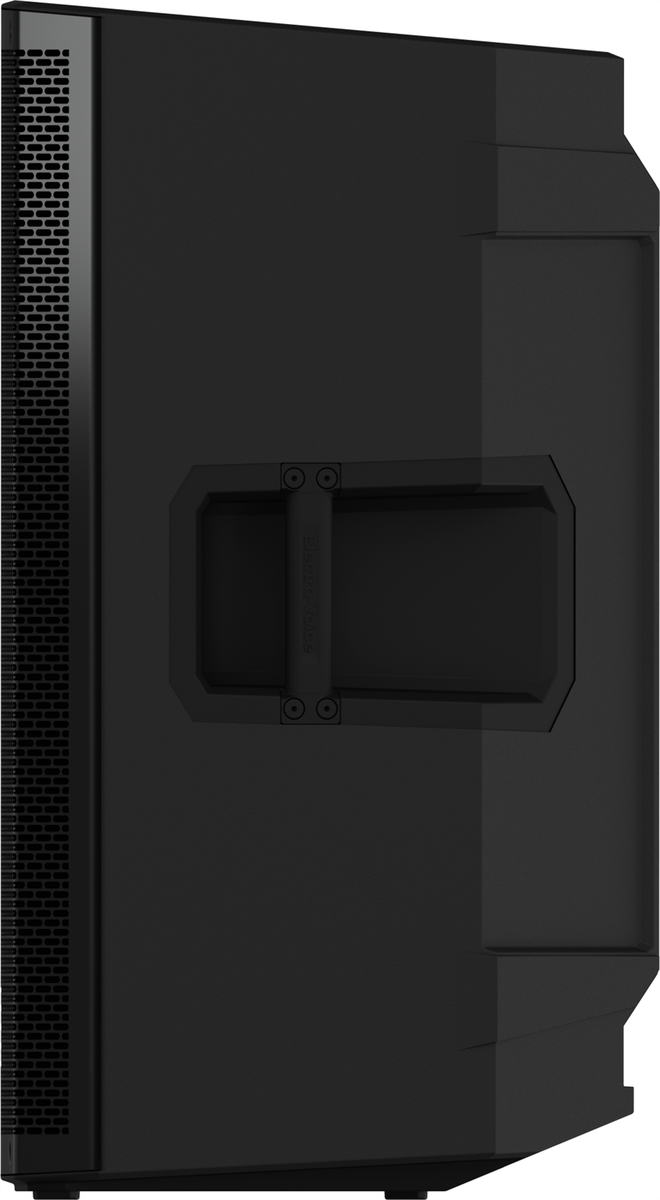

Electro-Voice ZLX-15-G2 Passive Loudspeaker
The ZLX-15-G2 is the passive cabinet in the second-generation ZLX line, a 15 inch two-way box for bands, DJs and rental stock that has to survive being loaded in and out every week. New EV transducers and a low-loss crossover lift both the output and the low end over the original ZLX, and the minimum impedance stays a stable load for a shared amplifier channel.
The enclosure carries pole-mount and M10 suspension points, so the same box works on a stick over a sub, flown from a bracket, or tipped on its side as a floor wedge. Amplify it with any competent power amp; if you want the amplifier, processing and Bluetooth built in, the matching ZLX-15P-G2 powered version covers that.
| Frequency response (-3 dB) | 68 Hz - 18,000 Hz |
|---|---|
| Frequency range (-10 dB) | 53 Hz - 20,000 Hz |
| Axial sensitivity | 95 dB SPL 1W/1m |
| Maximum SPL at 1 m | 126 dB |
| Coverage (H x V) | 90° x 60° |
| Crossover frequency | 2 kHz |
| LF transducer | WECA2158 |
| HF transducer | DH-1K |
| Dimensions (H x W x D) | 697.6 mm x 422.8 mm x 383.1 mm |
