Elgato Wave XLR MK.2

Wave XLR MK.2 converts a single XLR microphone into a digital USB-C source, running at 48kHz/24-bit with a 135dB dynamic range and up to 80dB of gain. Onboard DSP and Clipguard 2.0 catch sudden level spikes before they clip, and Wave Link software handles routing and mixing on the computer side.

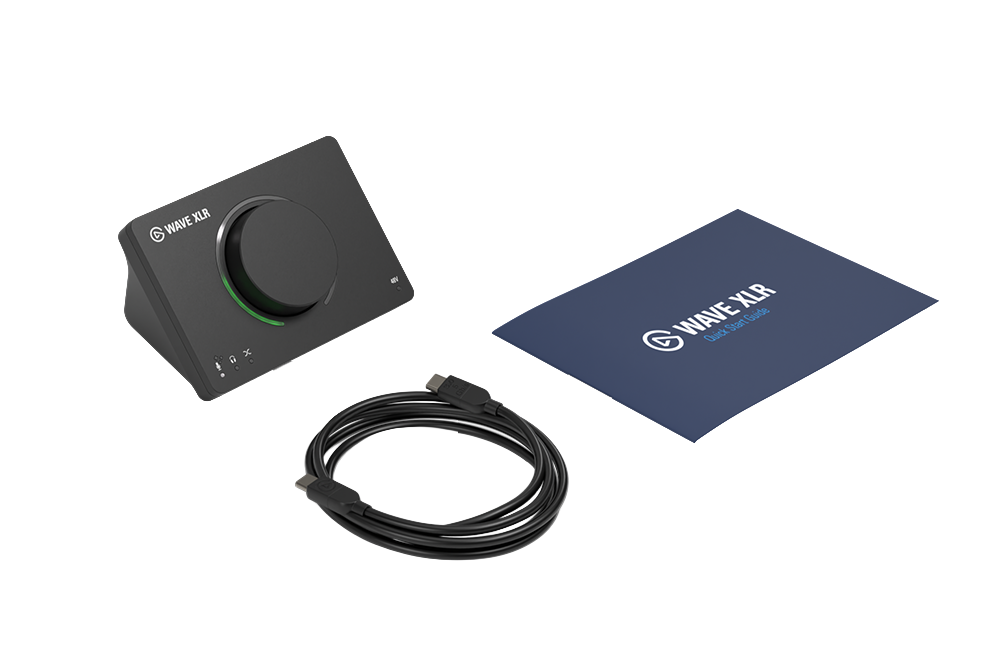

48V phantom power runs condenser mics directly from the interface, and a 3.5mm stereo headphone jack gives zero-latency monitoring of the input. It draws up to 900mA over its USB-C connection and ships with a 150cm USB-C cable and a quick start guide.

Input1x XLR, balanced
Frequency Response20 Hz - 20 kHz (XLR input and headphone out)
Dynamic Range135 dB
GainUp to 80 dB
Phantom Power+48V
Sample Rate48 kHz, 24-bit
Output3.5 mm stereo headphone jack
Dimensions93 x 118 x 73 mm (D x W x H)
Weight320 g (11.3 oz)
