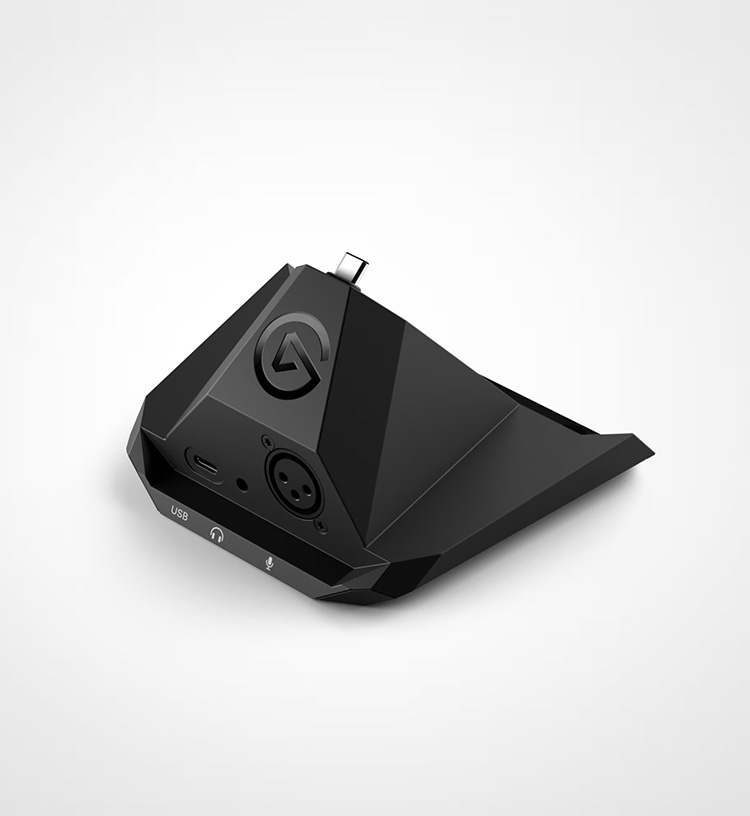

Elgato XLR Dock MK.2

XLR Dock MK.2 plugs directly into the base of a Stream Deck + with no cable, adding a balanced XLR microphone input and a 3.5mm stereo headphone output built around 24-bit/48kHz conversion with a 137dB dynamic range. Gain runs up to 80dB of ultra-low-noise amplification, with 48V phantom power for condenser mics and Clipguard 2.0 to protect against sudden level spikes.

Zero-latency monitoring lets a user hear their own voice and other audio through the headphone jack without perceptible delay, and the free Wave Link software handles routing and mixing alongside the Stream Deck app. It draws up to 900mA over the USB-C connection and requires a Stream Deck + (sold separately); it is not compatible with the Stream Deck + XL.

InputXLR microphone, balanced, mono
Output3.5 mm stereo headphone jack
Conversion24-bit, 48 kHz
Dynamic Range137 dB
GainUp to 80 dB, ultra-low-noise
Phantom Power+48V for condenser mics
CompatibilityRequires Stream Deck + (not compatible with Stream Deck + XL)
ConnectionDirect USB-C mount, no cable; up to 900 mA
