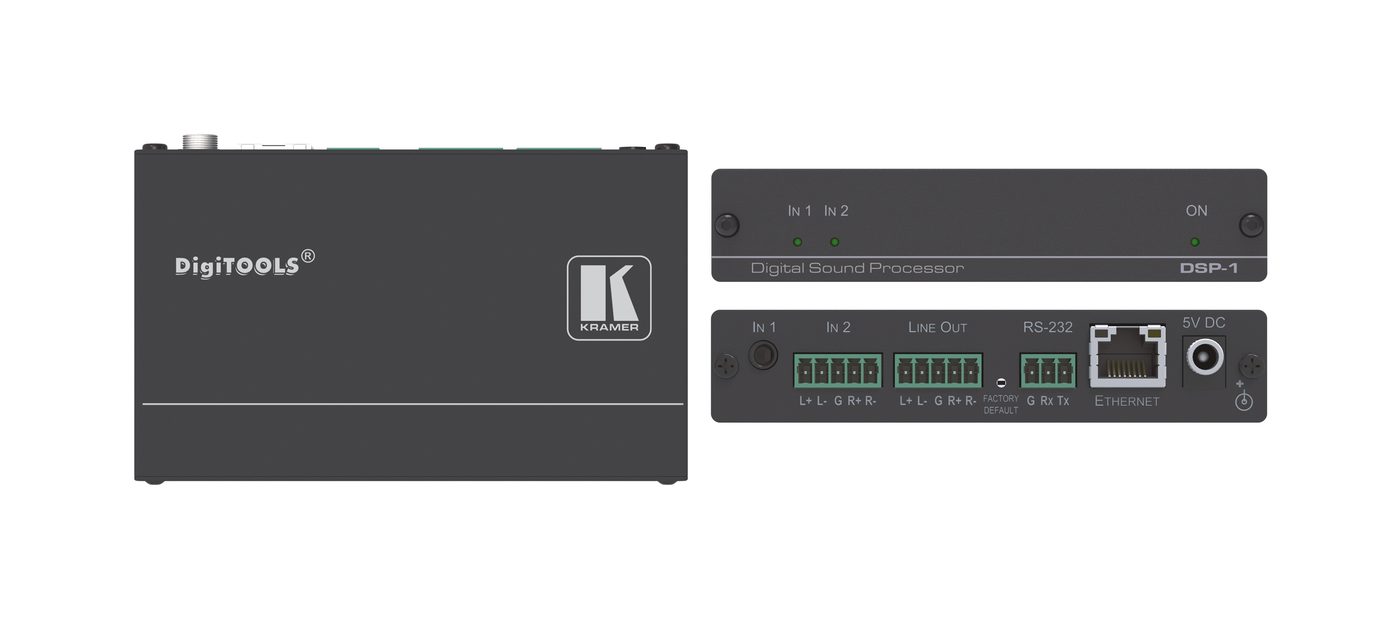

Kramer DSP-1 Mini Digital Sound Processor

The Kramer DSP-1 is a mini digital sound processor, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: On a 5-pin terminal block connector (inputs - 1 balanced stereo audio); On a 3.5mm Mini Jack (inputs - 1 unbalanced stereo audio); On a 5-pin terminal block connector (outputs - 1 balanced stereo audio). Also: On a 3-pin terminal block connector (ports - 1 rs-232); On an RJ-45 connector (ports - 1 ethernet); 5V DC, 350mA (power - consumption); Power supply, mounting bracket (accessories - included); 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H (product dimensions).

Inputs - 1 Balanced Stereo Audio	On a 5-pin terminal block connector
Inputs - 1 Unbalanced Stereo Audio	On a 3.5mm Mini Jack
Outputs - 1 Balanced Stereo Audio	On a 5-pin terminal block connector
Ports - 1 RS-232	On a 3-pin terminal block connector
Ports - 1 Ethernet	On an RJ-45 connector
Power - Consumption	5V DC, 350mA
Accessories - Included	Power supply, mounting bracket
Product Dimensions	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
