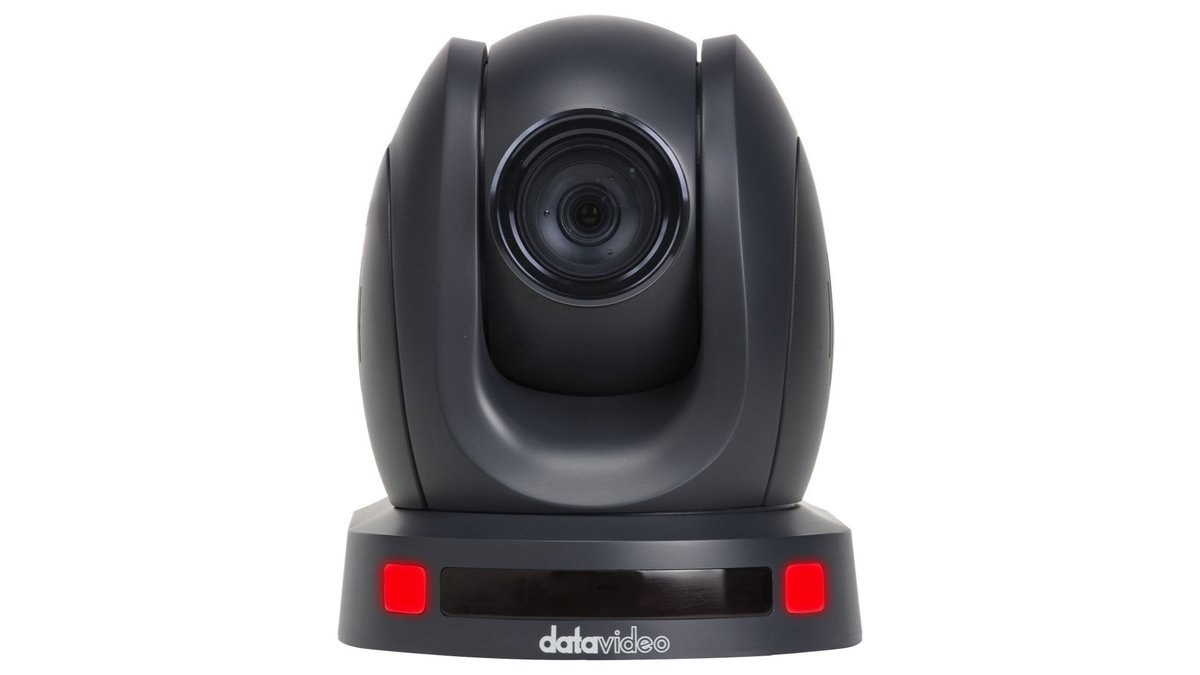

Datavideo PTC-145T HD 20x HDBaseT Tracking PTZ Camera

The PTC-145T is the HDBaseT-only member of the tracking PTZ line: a Sony 1/2.8 inch CMOS behind a 20x optical zoom (8x digital), reaching from 5.05mm to 91.49mm at f1.8 to f2.9. Everything leaves on one shielded Cat6A cable, which is the whole point of the T models in a fixed install.

Auto tracking keeps a moving presenter framed without an operator, and 255 presets cover a lecture theatre or council chamber. Pan is 340 degrees and tilt runs +90 to -30 degrees. Control speaks Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP and ONVIF, and it streams RTSP, RTMP(S), SRT in caller and listener modes, ONVIF and multicast in H.264, H.265 or MJPEG. It is powered by IEEE 802.3af PoE and pairs with the HS-1650T, HS-1600T Mark II, RMC-2P and RMC-180 or RMC-300 series controllers.

Image Sensor	Sony 1/2.8 inch CMOS, 2.07 megapixels
Zoom	20x optical, 8x digital
Focal Length	5.05mm to 91.49mm, F1.8 wide to F2.9 tele
Video Format	1080p60/59.94/50/30/29.97/25, 1080i, 720p

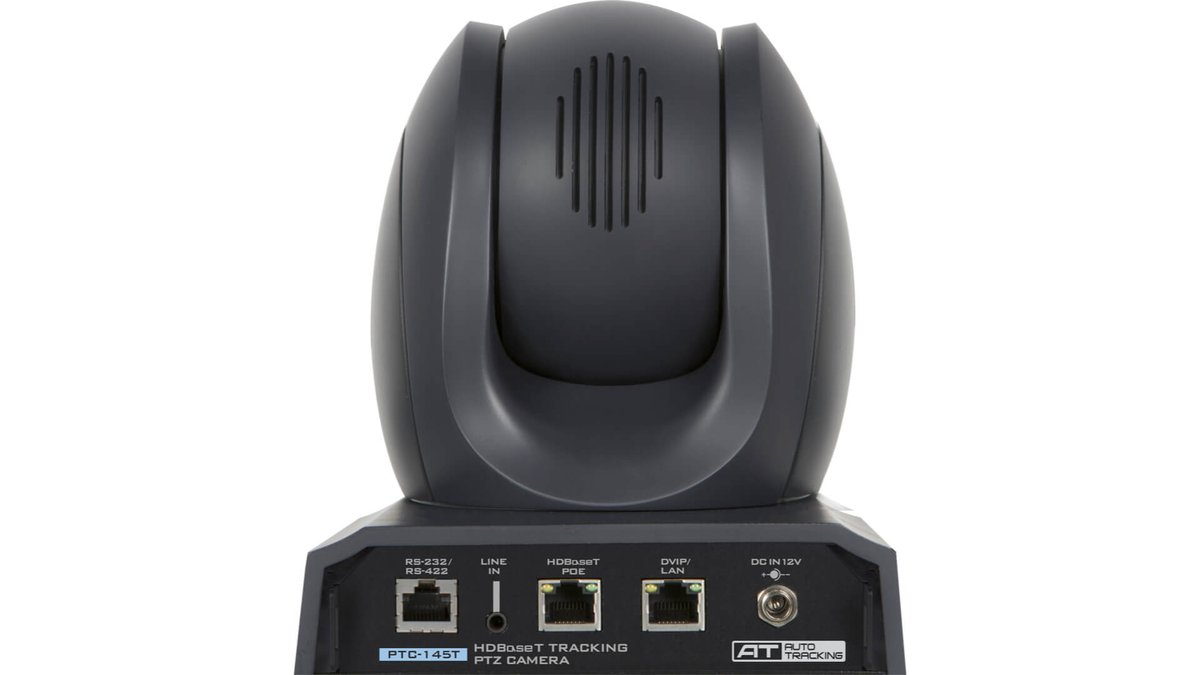

Video Output	HDBaseT (PoE) x 1, RJ-45 x 1, Cat6A shielded
Pan / Tilt	Pan 340 degrees, tilt +90 to -30 degrees
Presets	255 positions
Control Protocols	Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
Streaming	RTSP, RTMP(S), ONVIF, SRT (caller and listener), multicast
Power	IEEE 802.3af PoE, or DC 12V 14W
Weight	1.6 kg
