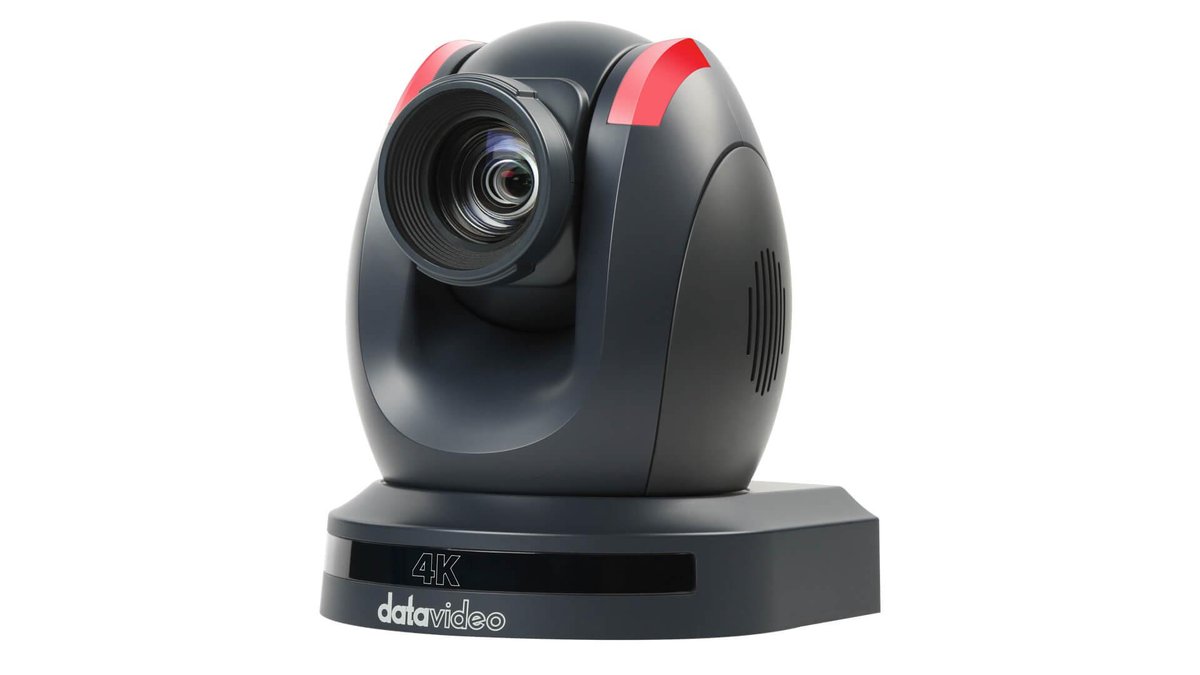

Datavideo PTC-305G 4K 20x 12G-SDI Tracking PTZ Camera
The PTC-305G moves up to a Sony 1/1.8 inch CMOS, which is the practical difference between a camera that holds up in a dim auditorium and one that does not. A 20x optical zoom (16x digital) runs f = 6.7mm to 125mm at F1.58 to F3.95, with a 60 degree wide field of view.

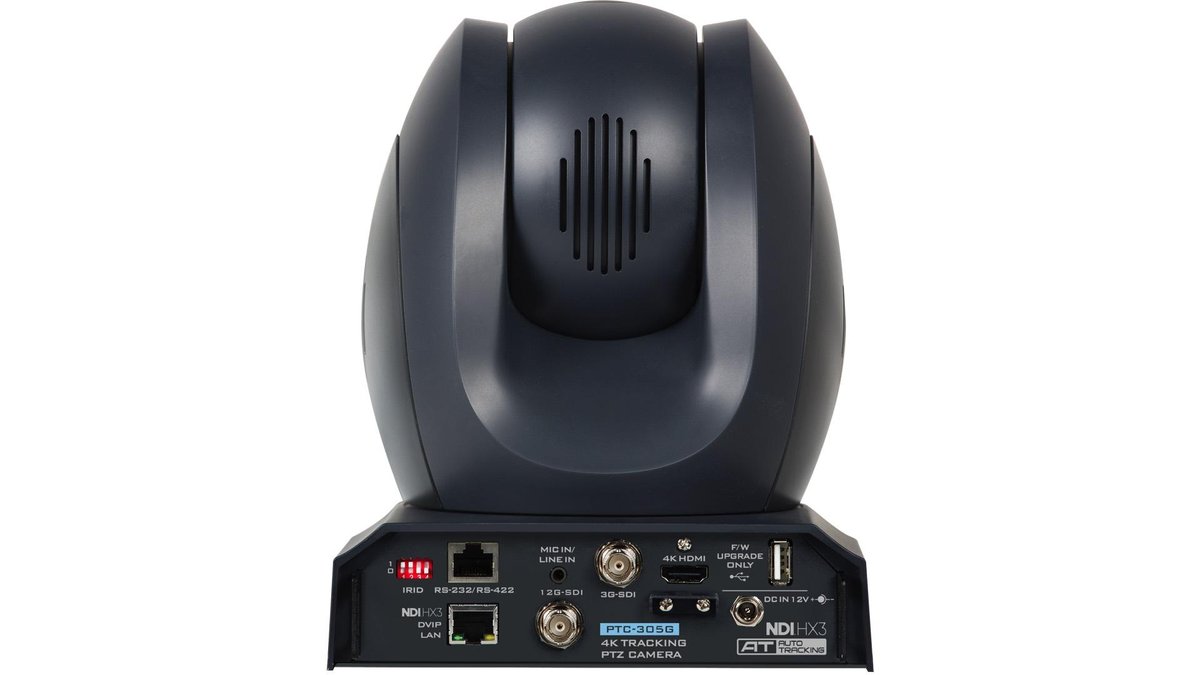

Outputs are HDMI 2.0, 3G-SDI, 12G-SDI and gigabit RJ-45 with PoE, all live at once, and the network side carries NDI|HX3 at 1080p plus RTSP, RTMP(S), SRT, ONVIF and multicast. Control covers Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF and NDI, driven from an RMC-2P, RMC-180 or RMC-300 series panel or the PTZ View Assist app. Pan 300 degrees, tilt +90 to -15, 255 presets, IEEE 802.3at PoE or DC 12V 3A.
| Image Sensor | Sony 1/1.8 inch CMOS, 8.42 megapixels |
|---|---|
| Zoom | 20x optical, 16x digital |
| Focal Length | 6.7mm to 125mm, F1.58 to F3.95 |
| Video Output | HDMI 2.0, 3G-SDI, 12G-SDI, 10/100/1000M RJ-45 (PoE) |
| Video Format | Up to 2160p60/59.94/50, 1080p, 1080i, 720p |
| Pan / Tilt | Pan 300 degrees, tilt +90 to -15 degrees |
| Presets | 255 |
| Control Protocols | Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI |
| Streaming | RTSP, RTMP(S), ONVIF, multicast, SRT, NDI|HX3 (1080p) |
| Power | IEEE 802.3at PoE, or DC 12V 3A (26W) |
| Weight | 2.6 kg |
