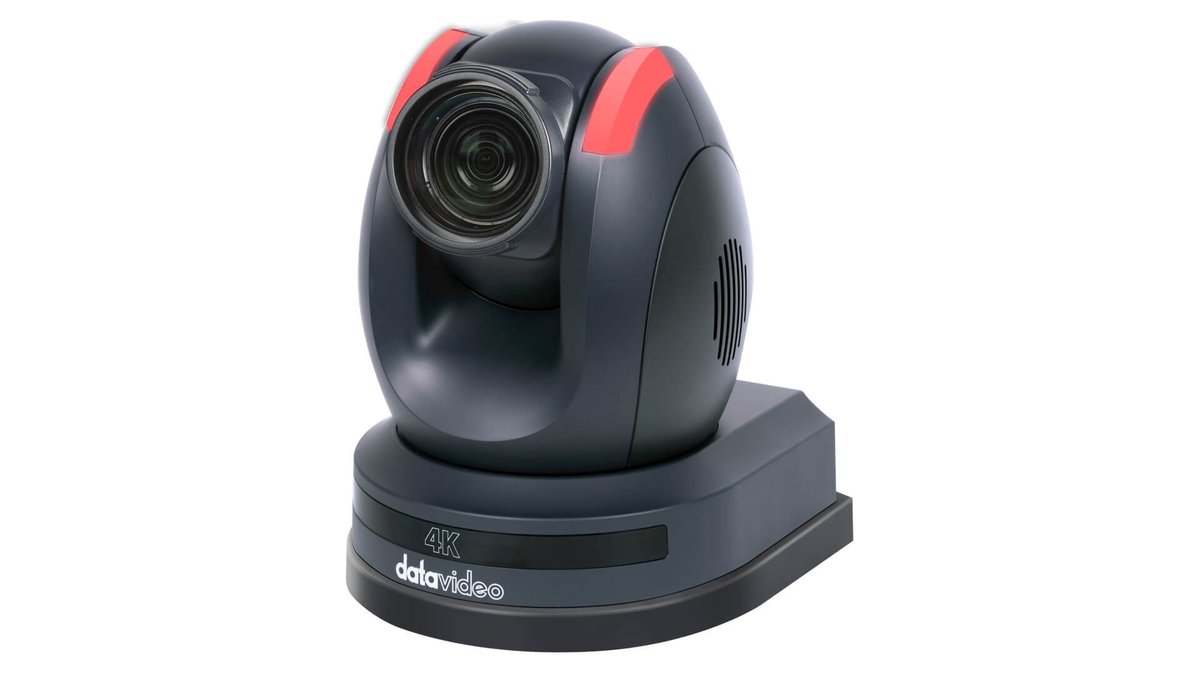

Datavideo PTC-285T 4K 12x HDBaseT Tracking PTZ Camera

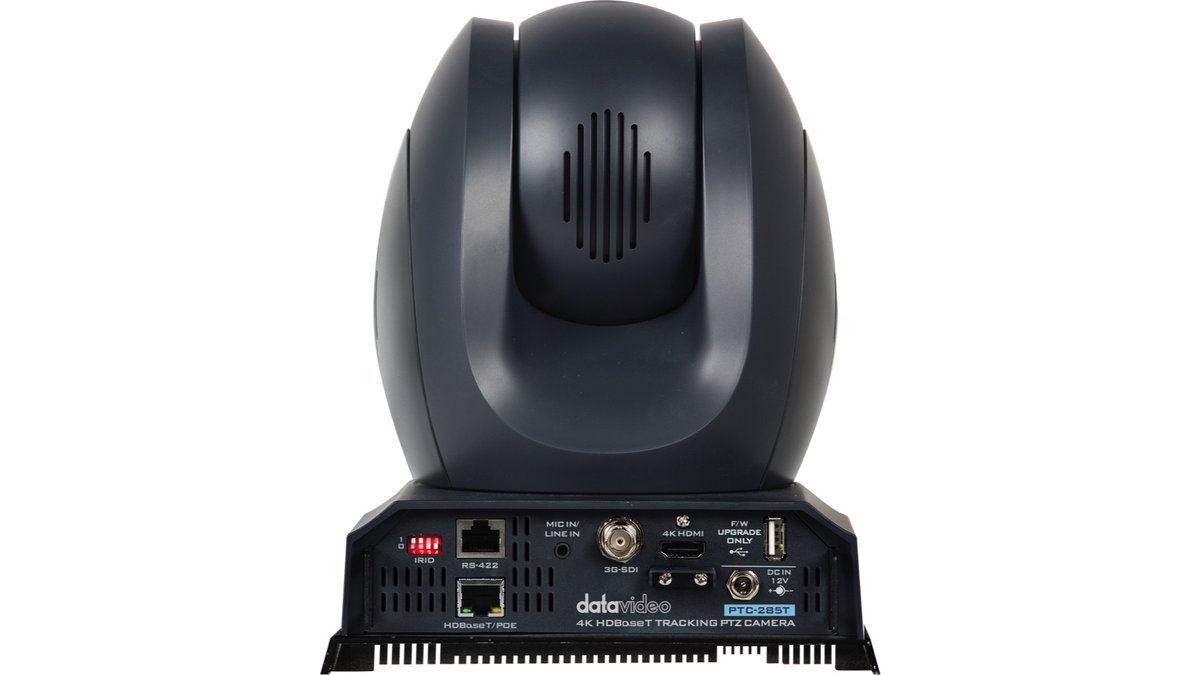

The PTC-285T takes the 4K 12x tracking head and puts HDBaseT on the back of it, so a single shielded Cat6A run carries 2160p60 video, RS-422 and DVIP control, and PoE out to the camera position. HDMI 2.0 and 3G-SDI remain on the body for local monitoring or a short second feed.

The imager is a Sony 1/2.8 inch CMOS at 8.51 megapixels behind a 12x optical zoom (16x digital), f = 4.4mm to 52.8mm at F1.8 to F2.6, with an 80 degree wide field of view. Auto tracking is driven by the supplied RMC-1AT IR remote, and the camera also answers to the HS-1650T and HS-1600T Mark II switchers and the RMC-2P, RMC-180 and RMC-300 controllers. Pan 300 degrees, tilt +90 to -15, 255 presets, IEEE 802.3at PoE or DC 12V at 22W.

Image Sensor	Sony 1/2.8 inch CMOS, 8.51 megapixels
Zoom	12x optical, 16x digital
Focal Length	4.4mm to 52.8mm, F1.8 to F2.6
Video Output	HDMI 2.0, 3G-SDI, HDBaseT (PoE), Cat6A shielded
Video Format	Up to 2160p60/59.94/50, 1080p, 1080i, 720p
Pan / Tilt	Pan 300 degrees, tilt +90 to -15 degrees
Presets	255
Control Protocols	Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
Streaming	RTSP, RTMP(S), ONVIF, multicast, SRT
Power	IEEE 802.3at PoE, or DC 12V 22W
Weight	2.7 kg
