Datavideo PTC-285G 4K 12x 12G-SDI Tracking PTZ Camera
The PTC-285G is the 12G-SDI build of Datavideo's 4K auto-tracking head. A Sony 1/2.8 inch CMOS at 8.51 megapixels sits behind a 12x optical zoom (16x digital), f = 4.4mm to 52.8mm at F1.8 to F2.6, with an 80 degree wide field of view for a classroom or boardroom.
Outputs run in parallel: HDMI 2.0, 3G-SDI, 12G-SDI and gigabit RJ-45 with PoE, so the same camera can feed a local display, a legacy SDI switcher and an NDI network at once. It carries NDI|HX3 at 1080p alongside RTSP, RTMP(S), SRT, ONVIF and multicast, and answers to Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF and NDI. Pan is 300 degrees, tilt +90 to -15, with 255 presets. It ships with the RMC-1AT auto-tracking IR remote and ceiling mount hardware, and runs on IEEE 802.3at PoE or DC 12V 3A.
| Image Sensor | Sony 1/2.8 inch CMOS, 8.51 megapixels |
|---|---|
| Zoom | 12x optical, 16x digital |
| Focal Length | 4.4mm to 52.8mm, F1.8 to F2.6 |

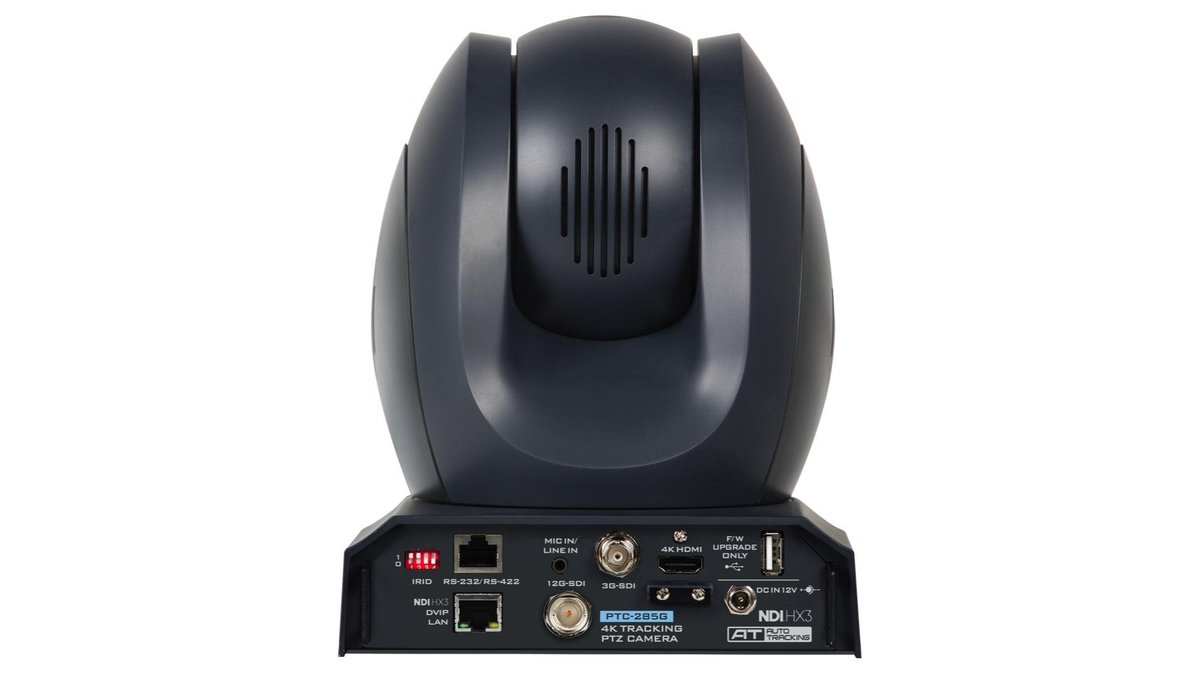

| Video Output | HDMI 2.0, 3G-SDI, 12G-SDI, 10/100/1000M RJ-45 (PoE) |
| Video Format | Up to 2160p60/59.94/50, 1080p, 1080i, 720p |
| Pan / Tilt | Pan 300 degrees, tilt +90 to -15 degrees |
| Presets | 255 |
| Control Protocols | Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI |
| Streaming | RTSP, RTMP(S), ONVIF, multicast, SRT, NDI|HX3 (1080p) |
| Power | IEEE 802.3at PoE, or DC 12V 3A (26W) |
| Weight | 2.6 kg |
