Crestron MP-WP-2XLRO-1G Media Presentation Wall Plate, XLR, 1-Gang

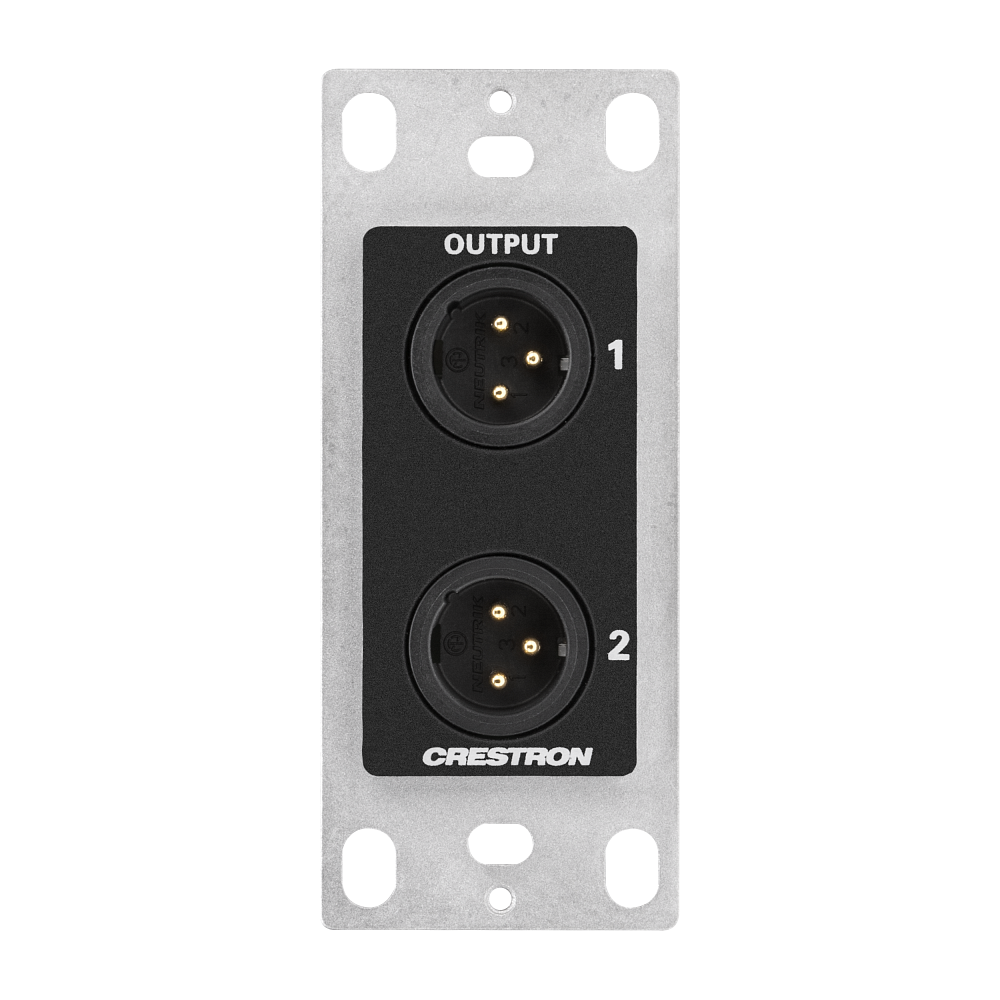

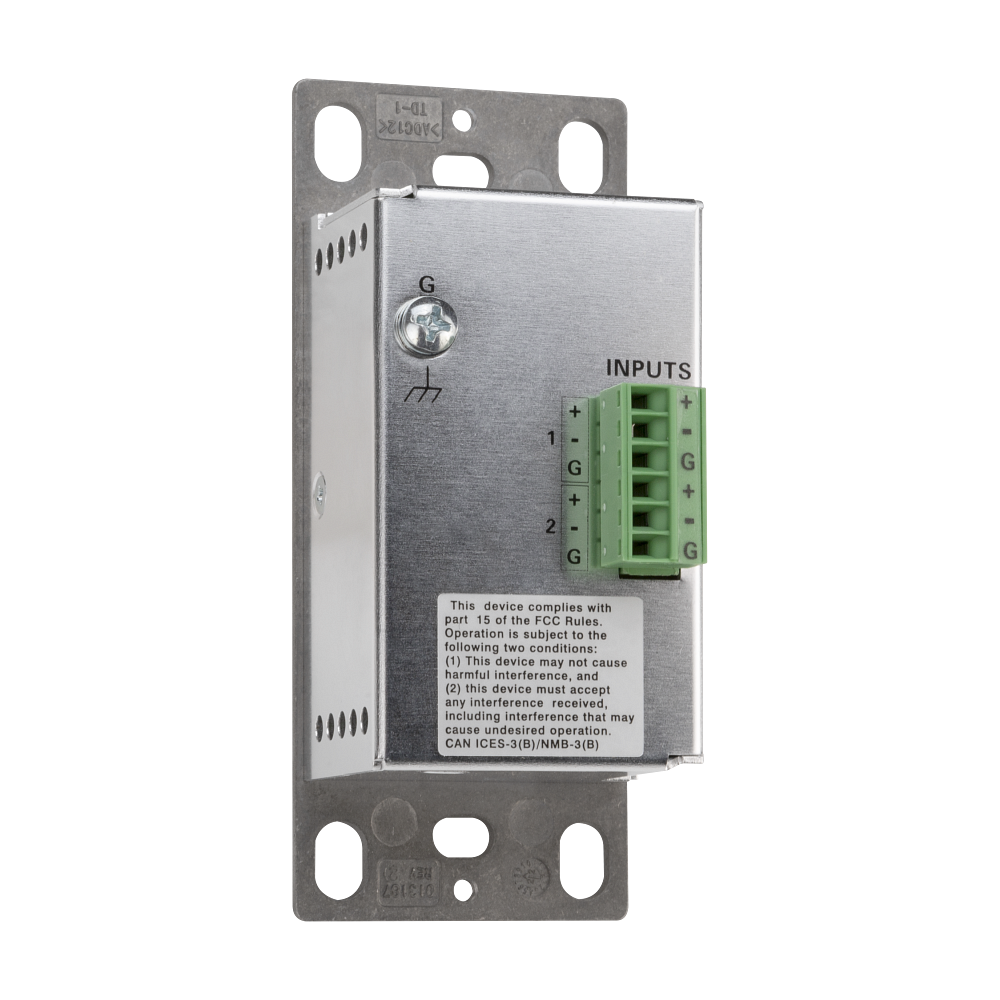

The MP-WP-2XLRO-1G brings two balanced XLR outputs out to the wall from a single gang, which is the connection a portable mixer, a recorder or a broadcast feed expects to find in a conference room or a lecture theatre. Two line-level sources arrive on a 6-pin 3.5 mm detachable terminal block at the rear, pins 1-3 for input 1 and pins 4-6 for input 2, and appear on the XLR connectors on the front.

Mounting options are a 1-gang U.S. electrical box or plaster ring with 3.5 in depth recommended, rack rail, or a flat surface using the included bracket, so the same part number covers a wall, a rack panel and a lectern. It is 1.85 in deep behind the plate, slightly more than the RCA version, and requires an FP-G1 decorative faceplate ordered separately.
