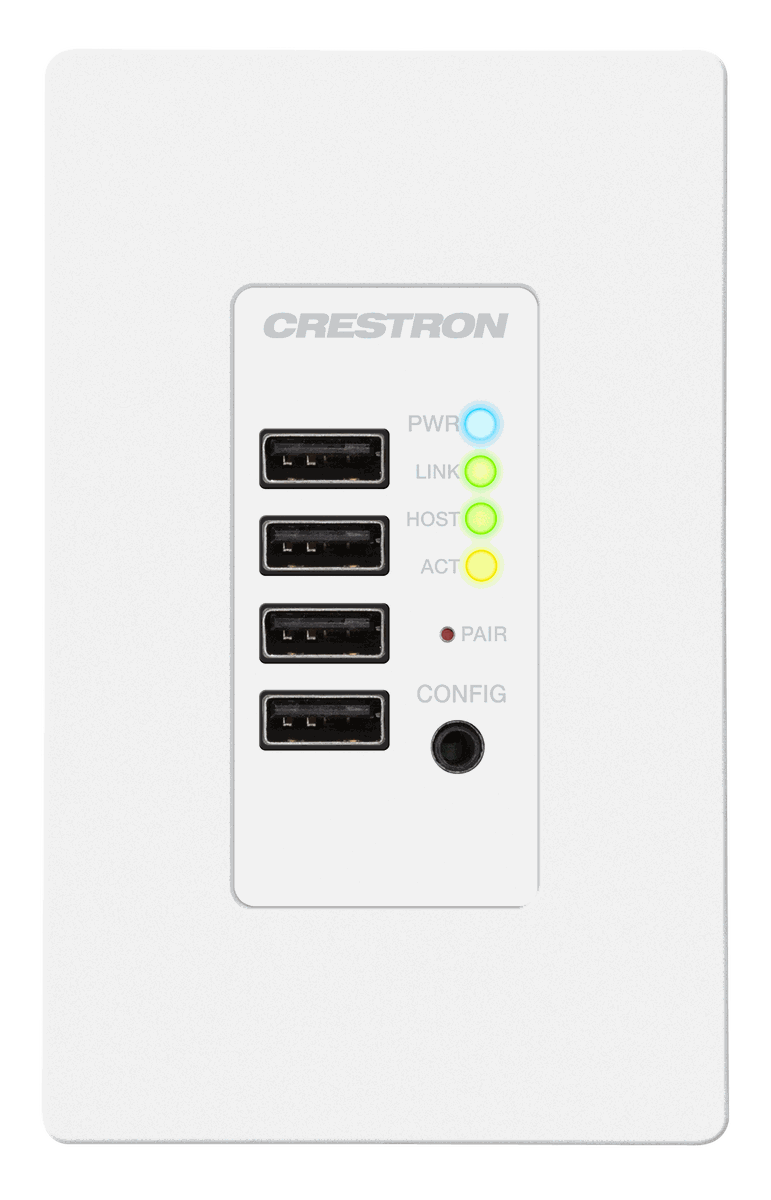

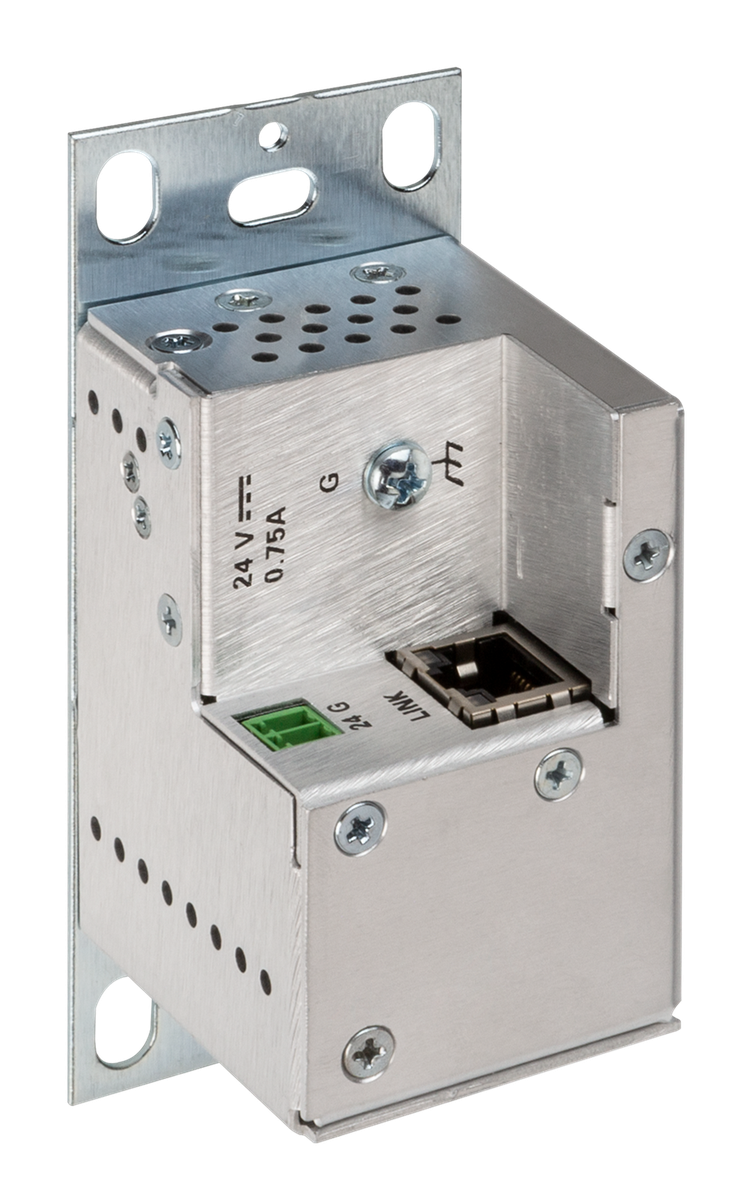

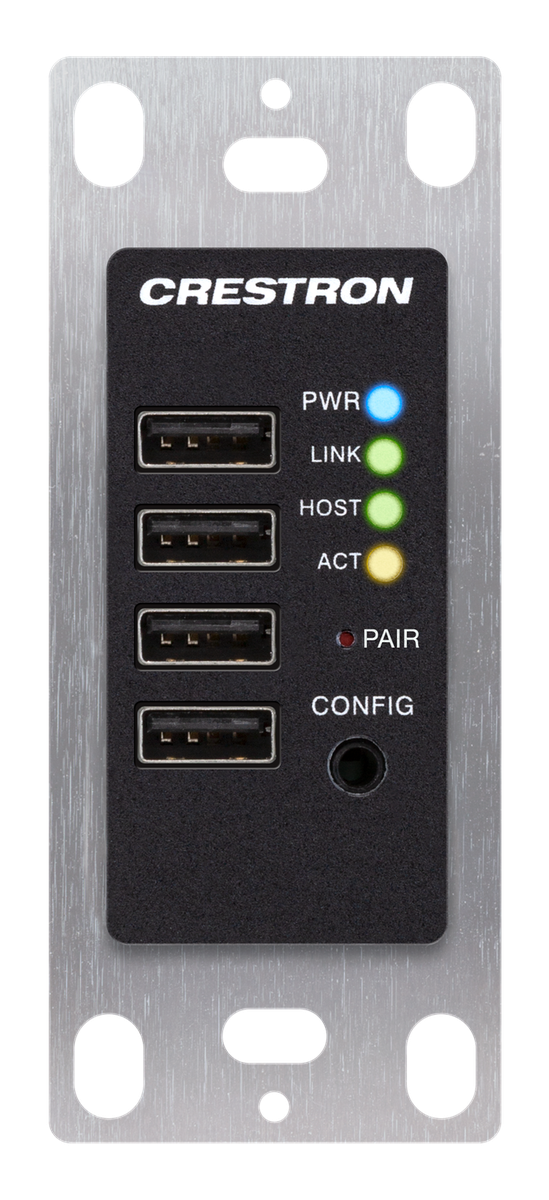

Crestron DM-NUX-R2-1G DM NUX USB over Network Wall Plate with Routing, Remote

The Crestron DM-NUX-R2-1G-B is a DM NUX USB over Network Wall Plate with Routing, Remote. DM NUX extends and routes USB peripherals over a standard network, so a camera, a speakerphone and a keyboard can follow whichever computer the room is running.

The Ethernet port is 100Base-T or 1000Base-T, Layer 2. USB support covers USB 1.0/1.1 and 2.0 with Hub compatible including isochronous devices. USB throughput is USB 2.0 up to 480 Mbps, USB 1.1 up to 12 Mbps. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

USB Device SupportUSB 1.0/1.1 and 2.0 with Hub compatible including isochronous devices
USB Hub SupportAny signal chain may include up to 4 USB hubs plus one DM-NUX-L2-1G and one DM-NUX-R2-1G
Maximum USB Devices30 USB devices, or 4 USB hubs with 26 USB devices
USB ThroughputUSB 2.0 up to 480 Mbps, USB 1.1 up to 12 Mbps
Host Computer OS SupportWindows, macOS, and Linux operating systems
Ethernet100Base-T or 1000Base-T, Layer 2
LINK SpeedUp to 480 Mbps, dependent upon network speed and quality
ConstructionMetal, black finish with white or black polycarbonate label overlay
