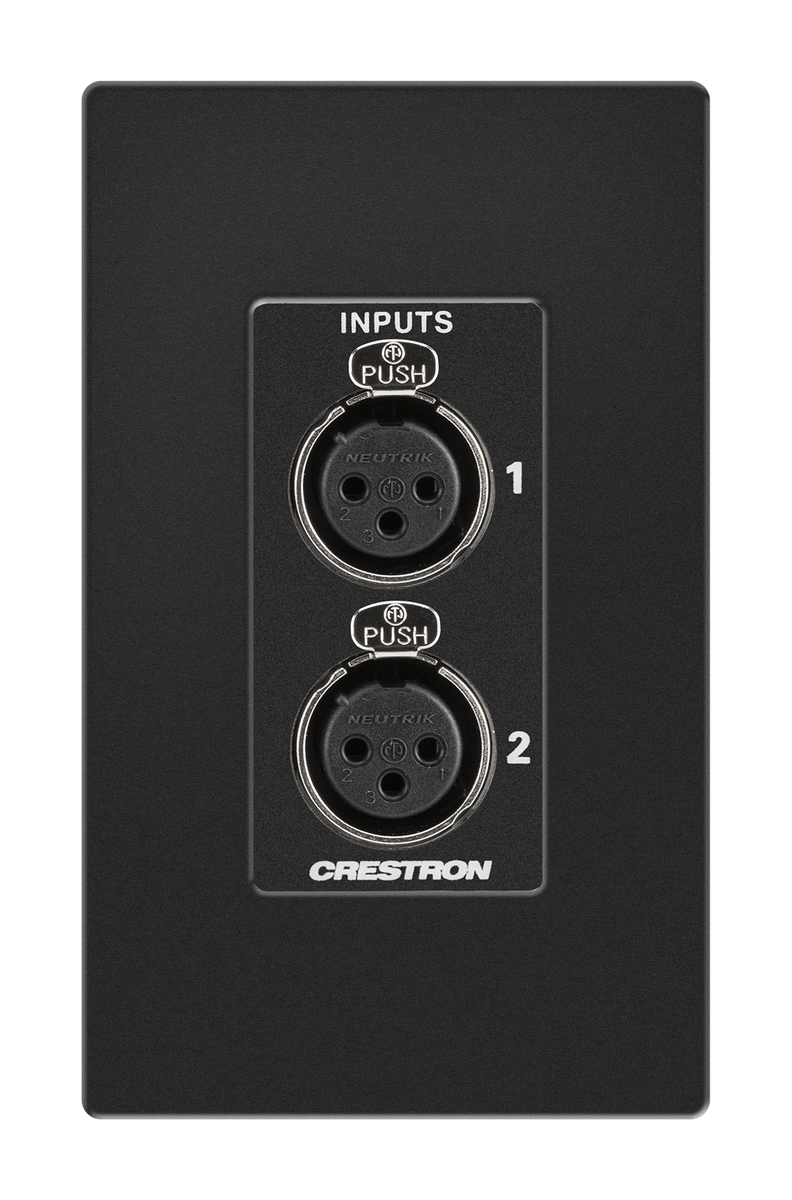

Crestron DM-NAX-2XLRI-1G DM NAX Audio-over-IP Wall Plate with XLR, Black, 1-Gang

The Crestron DM-NAX-2XLRI-1G is a DM NAX Audio-over-IP Wall Plate with XLR, Black, 1-Gang. DM NAX moves audio around a building over the same network that carries the video, so a zone becomes a switch port rather than a home run back to a rack of amplifiers.

Inputs accept Balanced/unbalanced analog line/mic-level; DM NAX/AES67 audio-over-IP. Outputs carry Balanced/unbalanced analog line-level; DM NAX/AES67 audio-over-IP. Power consumption is 2.9 W. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

Input Signal TypesBalanced/unbalanced analog line/mic-level; DM NAX/AES67 audio-over-IP

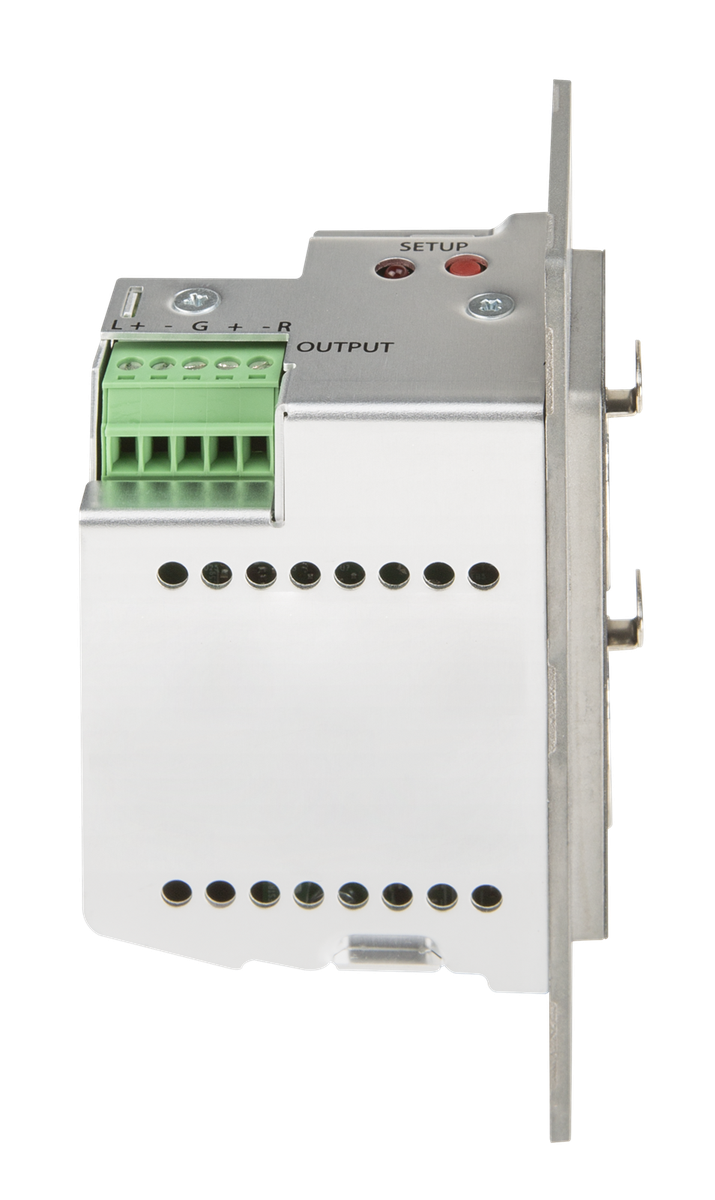

Output Signal TypesBalanced/unbalanced analog line-level; DM NAX/AES67 audio-over-IP
Frequency Response (at line-level output)From mic-level input: 20 Hz to 20 kHz +/-1.0 dB; From line-level input: 20 Hz to 20 kHz +0.1/-1.0 dB
PoEIEEE 802.3af Class 0 (12.95 W) compliant; Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE

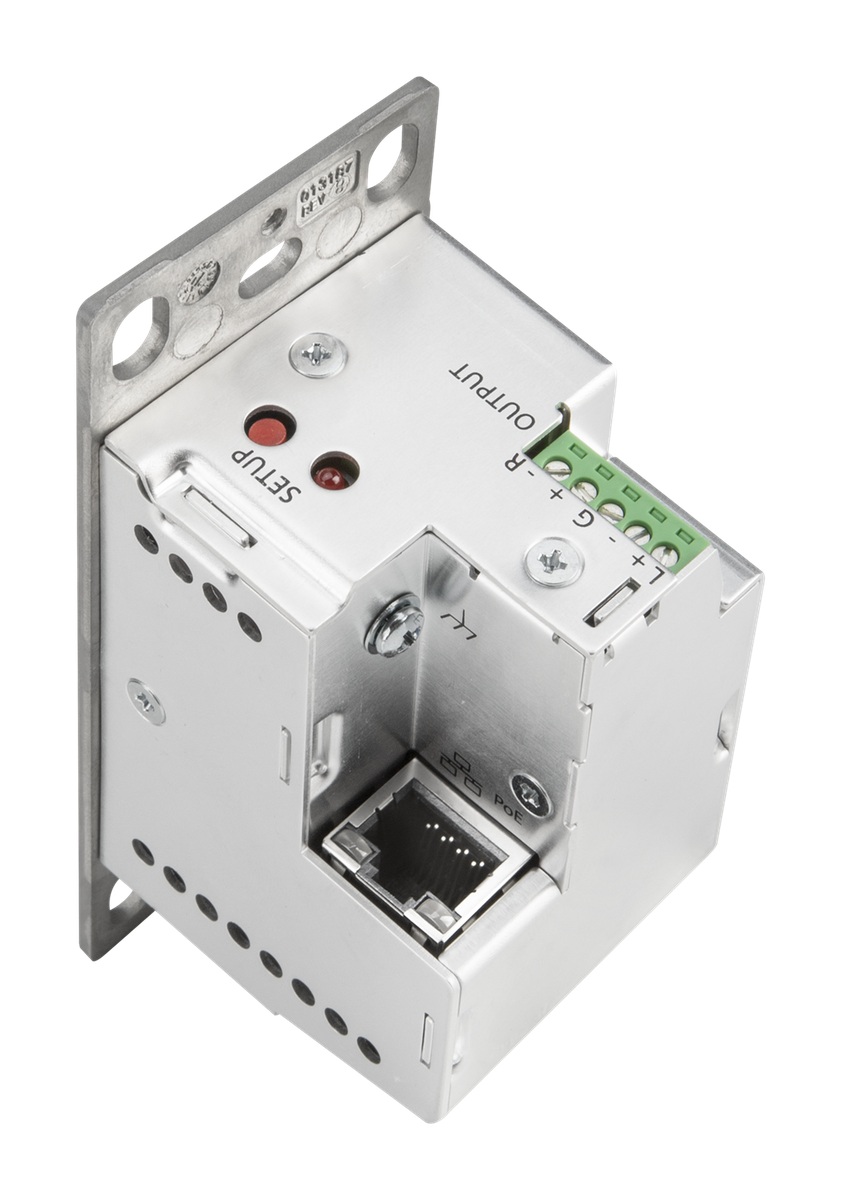

ETHERNET PoE(1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port
Power Consumption2.9 W
MountingMountable on the following: 1-gang U.S. electrical box or plaster ring (not included), 3.5 in. (89 mm) electrical box depth recommended; Rack rail
ChassisMetal, black and silver finish, vented sides
Expand The Power of DM NAX® Audio-over-IP with DM NAX Edge Devices
Crestron DM NAX™ Audio-over-IP: the basics
CTI | DM NAX™ Audio-over-IP Distribution System: DM NAX™ Overview
