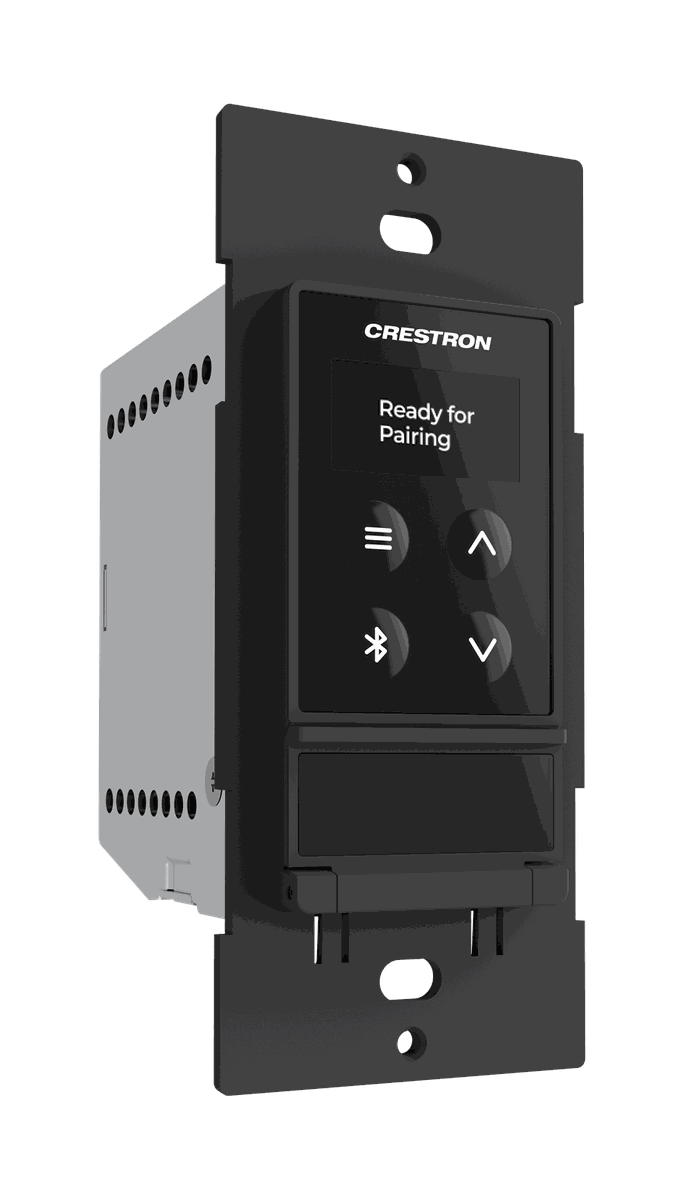

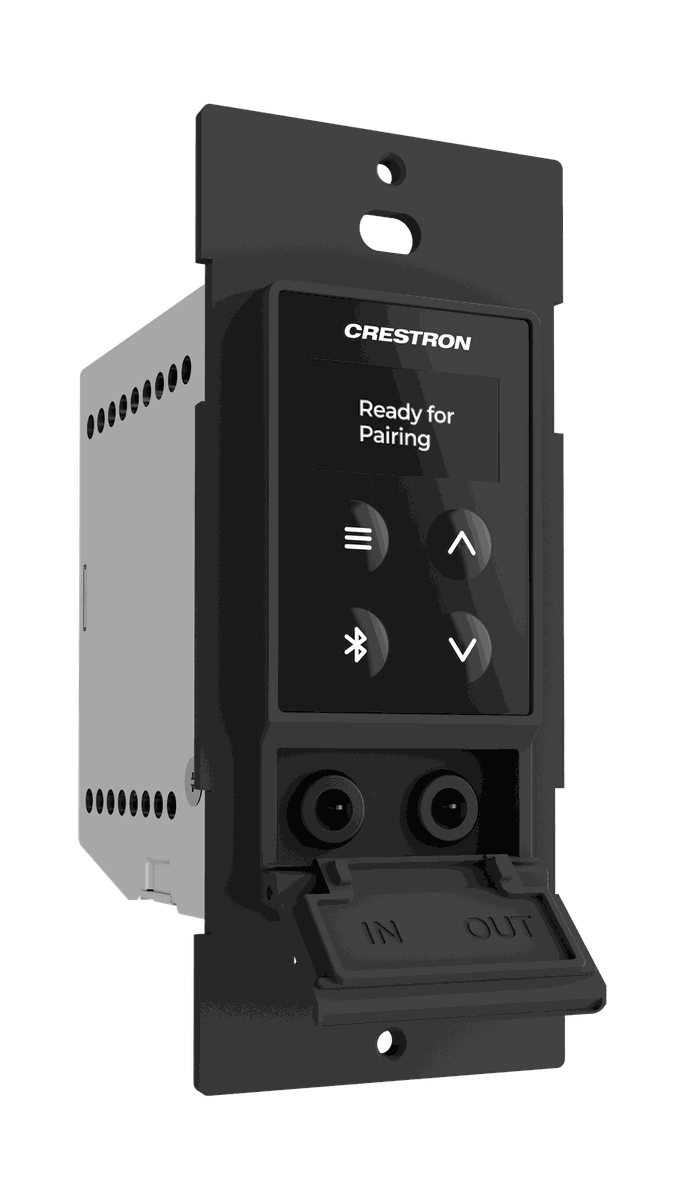

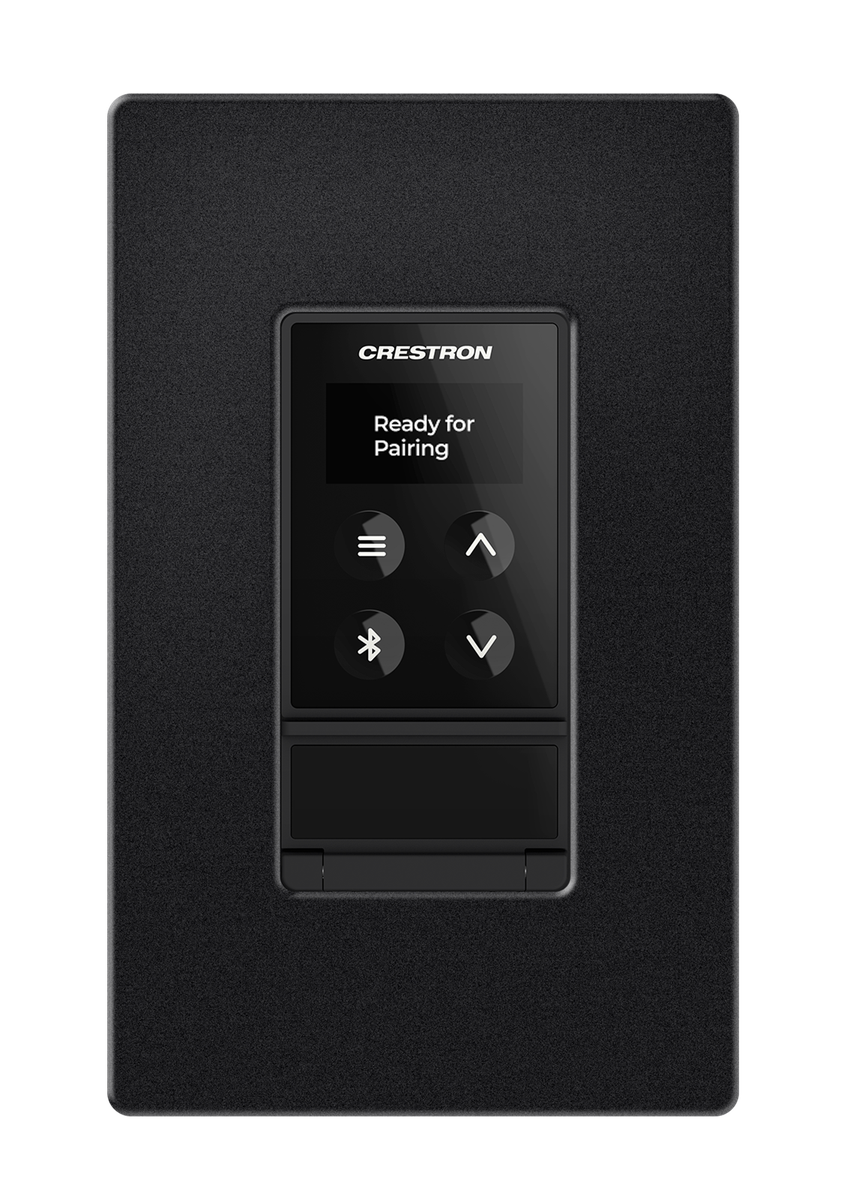

Crestron DM-NAX-BTIO-100-1G DM NAX Audio-over-IP Wall Plate with Bluetooth Audio Support, Analog

The Crestron DM-NAX-BTIO-100-1G is a DM NAX Audio-over-IP Wall Plate with Bluetooth Audio Support, Analog Audio Input and Output, 1-Gang. DM NAX moves audio around a building over the same network that carries the video, so a zone becomes a switch port rather than a home run back to a rack of amplifiers.

Power consumption is 3.5 W. The chassis is metal, black and silver finish, vented sides. Input Signal Types: Unbalanced stereo analog line-level; Stereo Bluetooth wireless; DM NAX/AES67 audio-over-IP. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

Input Signal TypesUnbalanced stereo analog line-level; Stereo Bluetooth wireless; DM NAX/AES67 audio-over-IP
Frequency Response (at line-level output)20 Hz to 20 kHz +/-0.5 dB
EthernetFor control and PoE, AoIP, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
PoEIEEE 802.3af Class 0 (12.95 W) compliant; Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE
ETHERNET PoE(1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port
Power Consumption3.5 W
MountingMountable on the following: 1-gang U.S. electrical box or plaster ring (not included), 3.5 in. (26 mm) electrical box depth recommended; Rack rail
ChassisMetal, black and silver finish, vented sides
Crestron DM NAX™ Audio-over-IP: the basics
Expand The Power of DM NAX® Audio-over-IP with DM NAX Edge Devices
CTI | DM NAX™ Audio-over-IP Distribution System: DM NAX™ Overview
