Crestron USB-EXT-2-1G USB over Category Cable Extender Wall Plate

This is the wall-plate form of the USB-EXT-2 extender: the same 330 ft point-to-point USB 1.1 and 2.0 extension over one solid-core CAT5e or better shielded twisted pair run, mounted into a 1-gang electrical box in black or white so nothing sits loose on a table or behind a display.

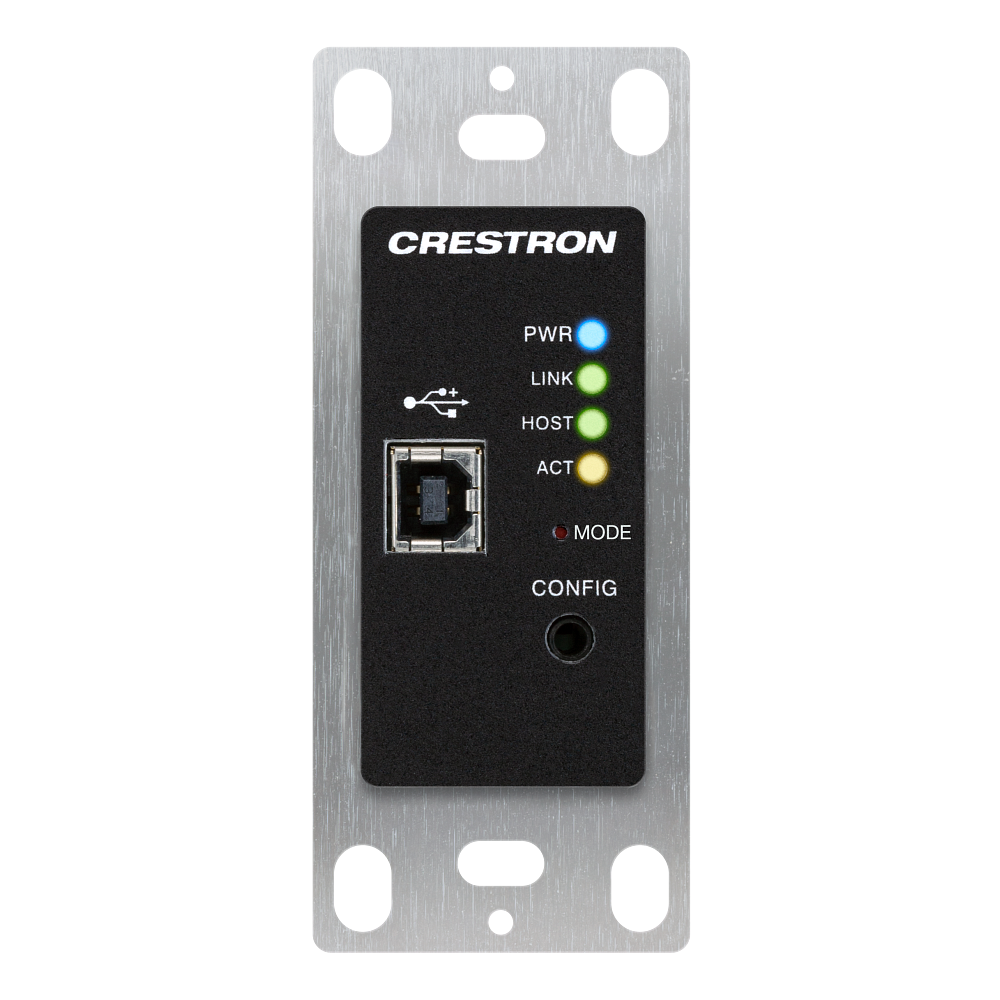

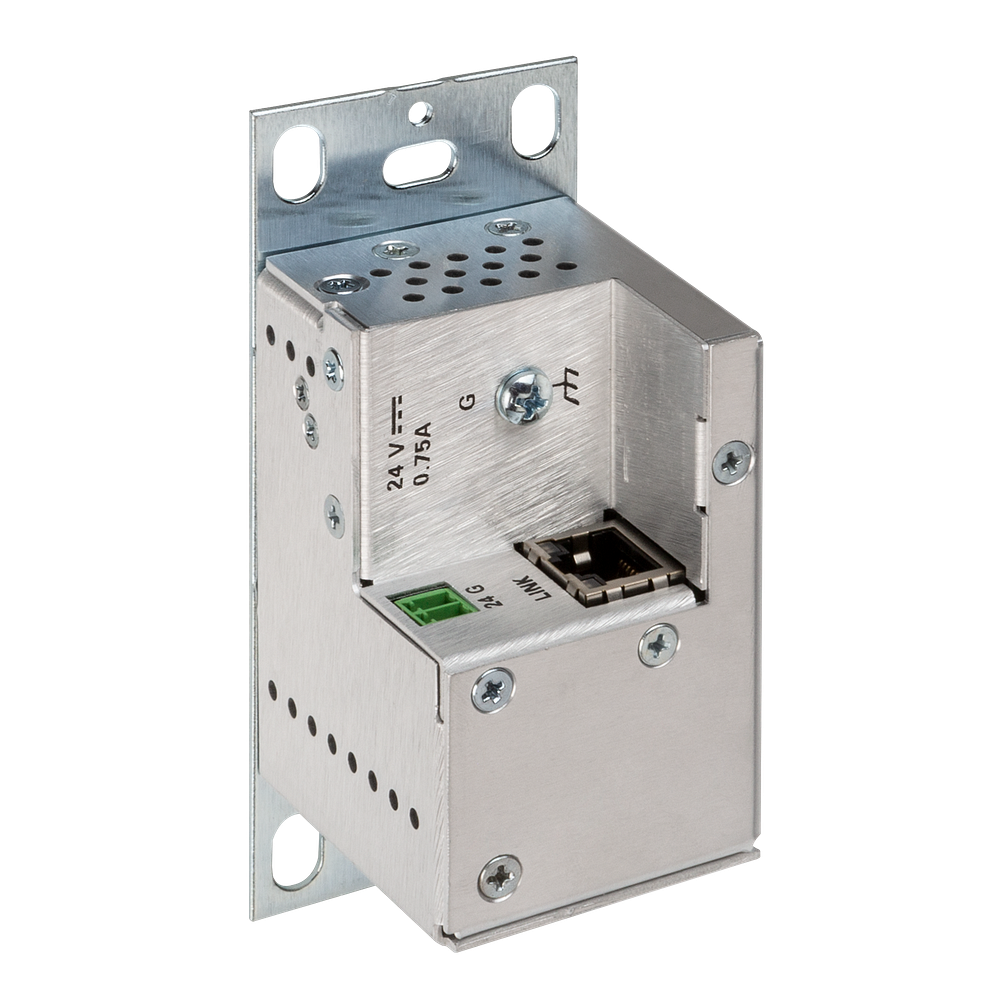

The local plate takes a USB Type B connection from the host and a 24 VDC terminal block; the remote plate presents two USB Type A ports and includes a PW-2407WUL supply. A chain may include up to four USB hubs plus one local and one remote plate, up to 30 devices, at 480 Mbps. Amber, green, and blue LEDs report activity, host, link, and power at each end, and a ferrite bead is supplied at both ends for EMI suppression.
