Crestron DM-EXT-1021-1G 4K 2x1 DM Essentials Scaling Auto-Switcher and Wall Plate Extender over

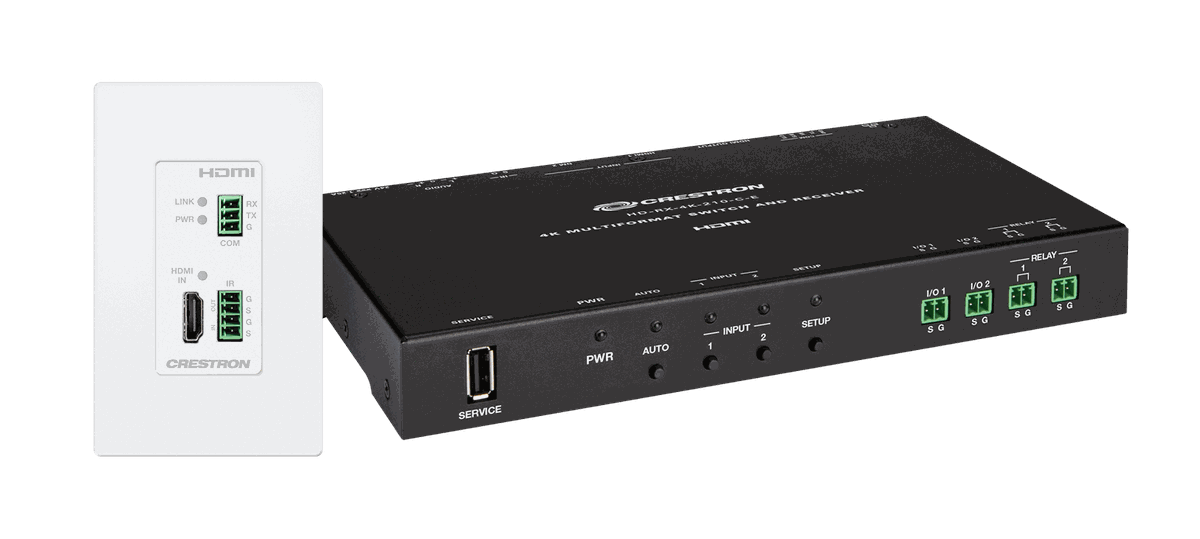

The Crestron DM-EXT-1021-1G-B KIT is a 4K 2x1 DM Essentials Scaling Auto-Switcher and Wall Plate Extender over CATx Cable. DM Essentials is Crestron's point-to-point line: one Category cable between the two units carries the video, audio and control that would otherwise need a matrix behind it.

Inputs accept HDMI with Deep Color and 4K (DVI and Dual-Mode DisplayPort interface compatible). Outputs carry HDMI with Deep Color and 4K (DVI compatible). Copy protection is HDCP 2.2. Crestron ships the transmitter and the receiver together under one order code.

Input Signal TypeHDMI with Deep Color and 4K (DVI and Dual-Mode DisplayPort interface compatible)
Output Signal TypeHDMI with Deep Color and 4K (DVI compatible)
Digital Formats2-channel LPCM
Copy ProtectionHDCP 2.2
Ethernet100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, CIP, DHCP, web browser setup and control
Transmitter1.2 lb (0.55 kg)
Receiver1.19 lb (0.54 kg)
DM(1) 8-pin RJ-45 connector, female, shielded; DM output port for connection to the receiver
