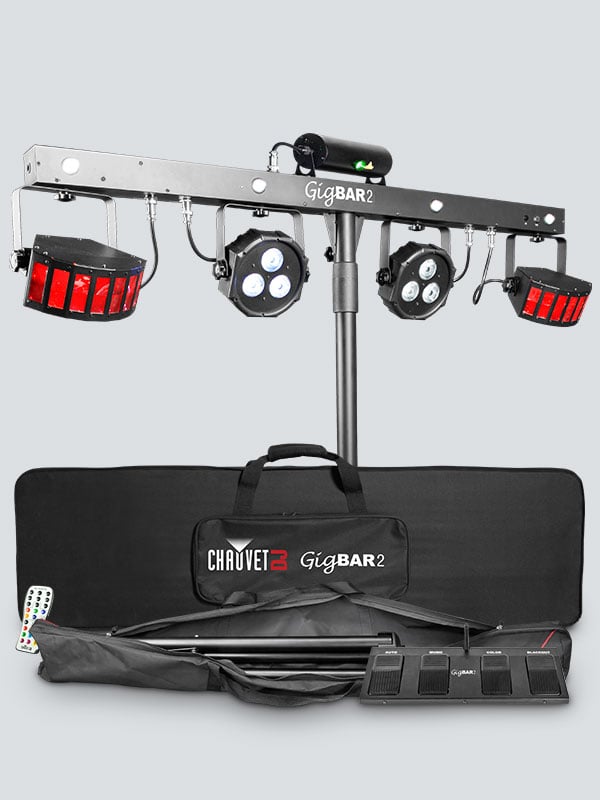

Chauvet DJ GigBAR 2

GigBAR 2 is the fixture that made the pack-and-go format standard gear for mobile DJs: a pair of LED derbies, LED pars, a laser, and a strobe, all pre-mounted on one bar with its own tripod. It is the previous generation next to the ILS-linked GigBAR 3, without wireless fixture-to-fixture linking, but it covers the same job - one case in, lights up, one case out - at a lower channel count and price point.

Control comes from the built-in display, the included IRC-6 remote, a wireless footswitch with a 100 foot range for hands-free triggering during a set, or DMX at 3, 11 or 23 channels over 3-pin XLR. Multiple units link master/slave for a bigger rig without extra DMX cabling, and up to 8 units share a 120V circuit through the power-link chain.

Fixtures	LED derby x2, LED par x2, laser, strobe - one bar
DMX Channels	3, 11 or 23; 3-pin XLR
Control	Built-in display, IRC-6 remote, wireless footswitch, or DMX; master/slave
Power and Current	68 W @ 120 V; 64 W @ 230 V, auto-ranging 100-240 VAC
Power Linking	Up to 8 units @ 120 V, 15 @ 230 V
Size / Weight	46.7 x 4.3 x 15.2 in (1185 x 110 x 386.5 mm); 25.6 lb (11.6 kg)
Stand Height	4.9 to 8.2 ft (1.5 to 2.5 m)
Included	Power cord, IRC-6 remote, tripod, carry bag, wireless footswitch, manual
