Chauvet DJ GigBAR Bridge Beam ILS

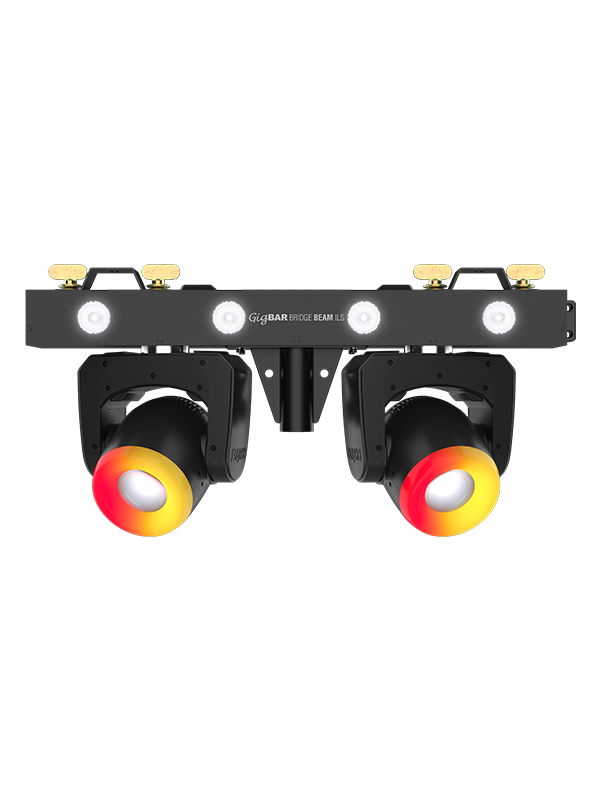

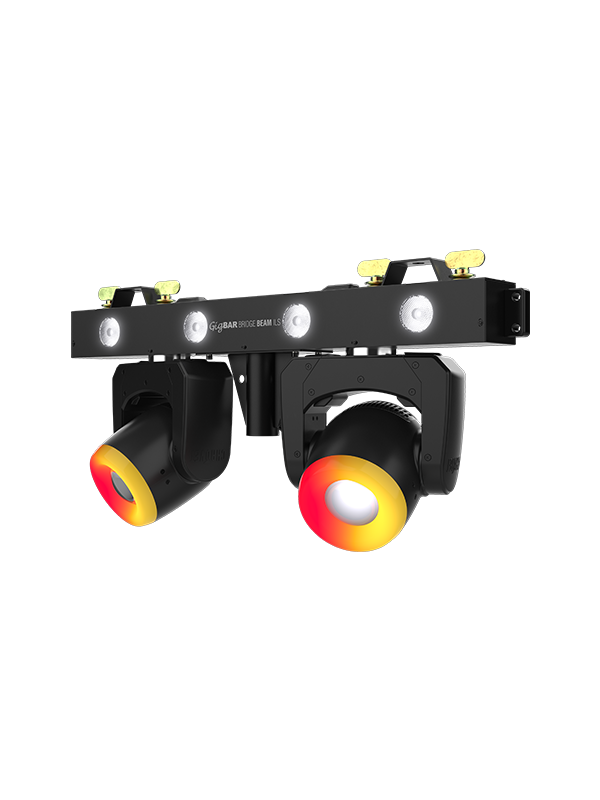

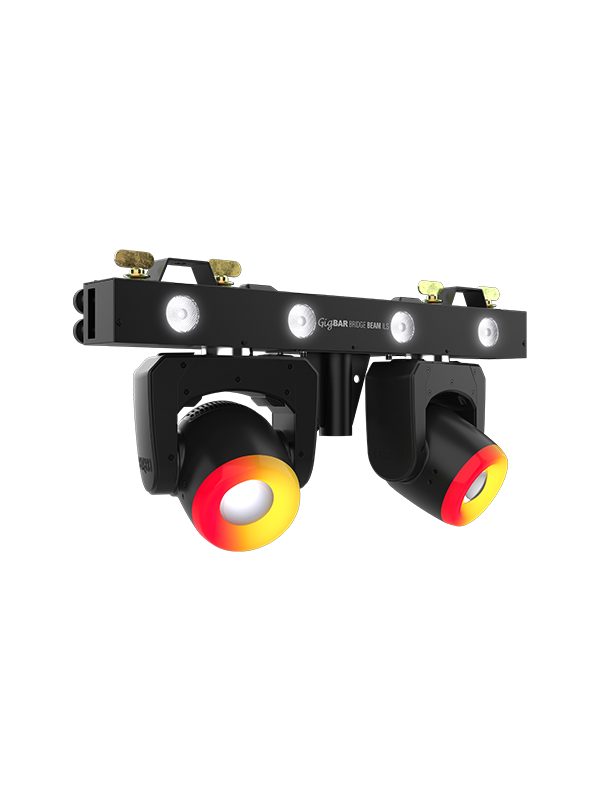

The Bridge Beam ILS is the moving-head step up in the GigBAR line: two beam moving heads sweep 540 degrees of pan and 270 of tilt, an RGBW LED ring wraps the bar for a wash effect, and a pair of wash fixtures fill in color behind the beams. All of it is pre-rigged on one bar, so it goes up as a single fixture instead of a truss full of separate heads.

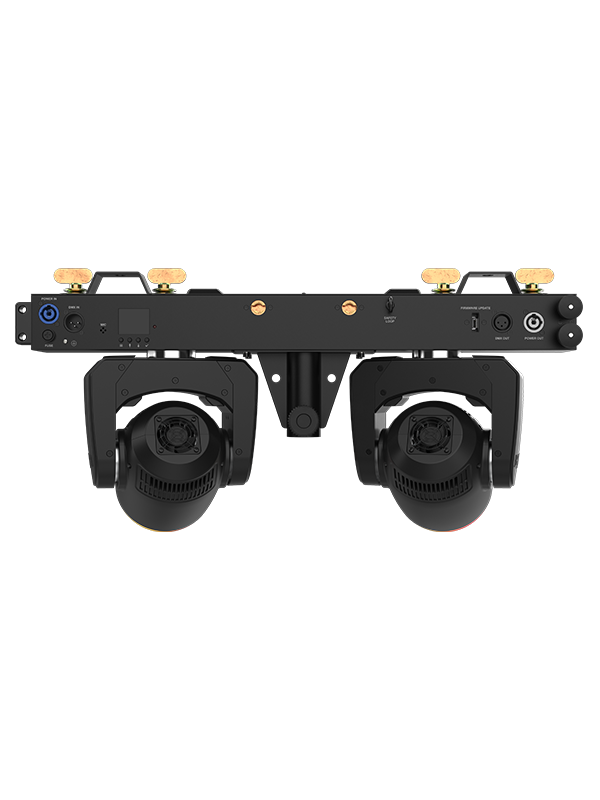

Control is 3, 24 or 60-channel DMX over 3-pin XLR, or the fixture links wirelessly over 2.4 GHz to other Chauvet ILS gear with no data cable at all - point a GigBAR ILS controller at the room and every linked fixture follows. The moving heads throw a tight 5 degree beam at nearly 25,000 lux from 2 meters, while the wash heads spread to 20 degrees for fill.
