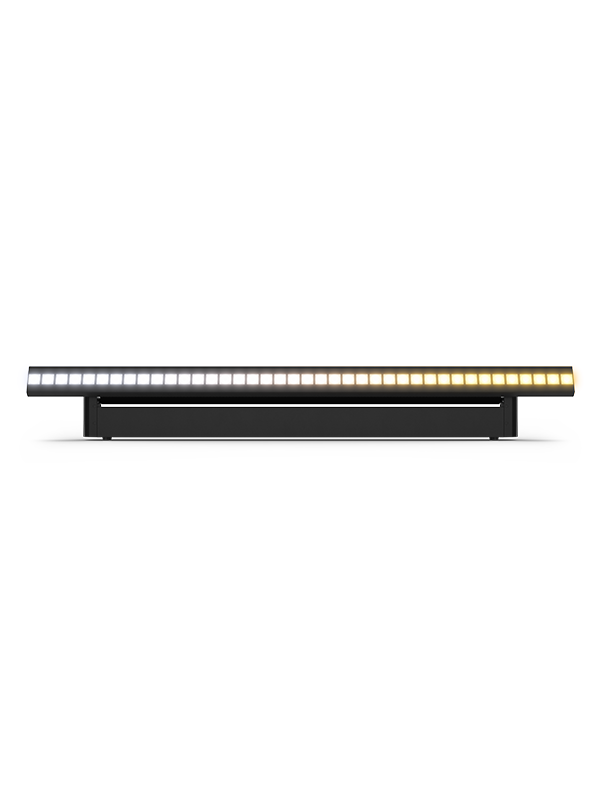

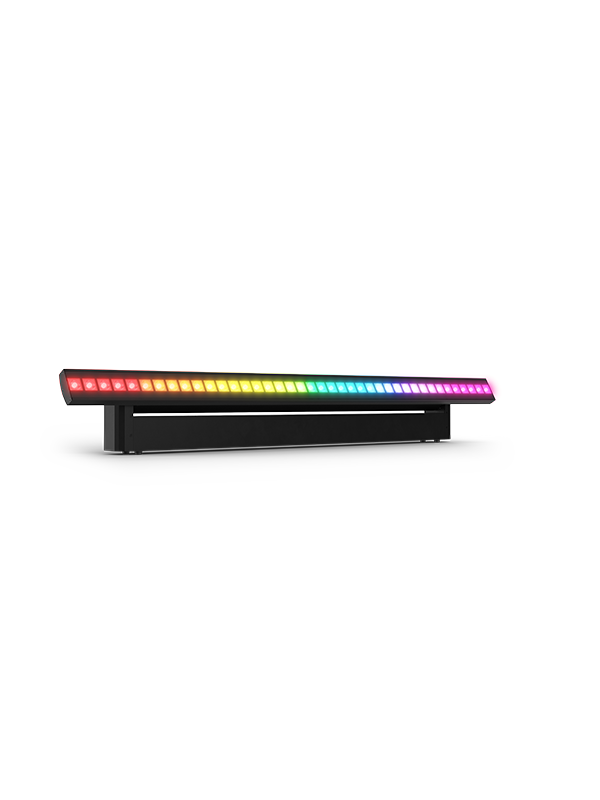

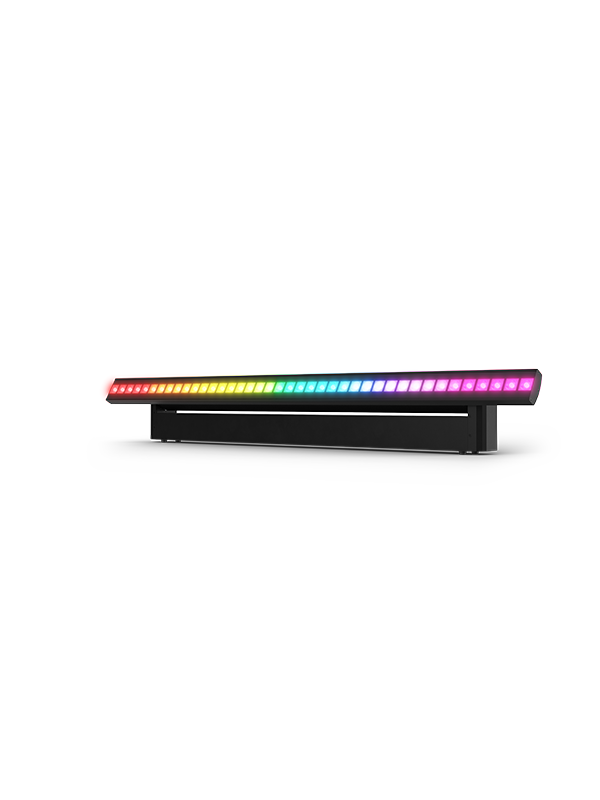

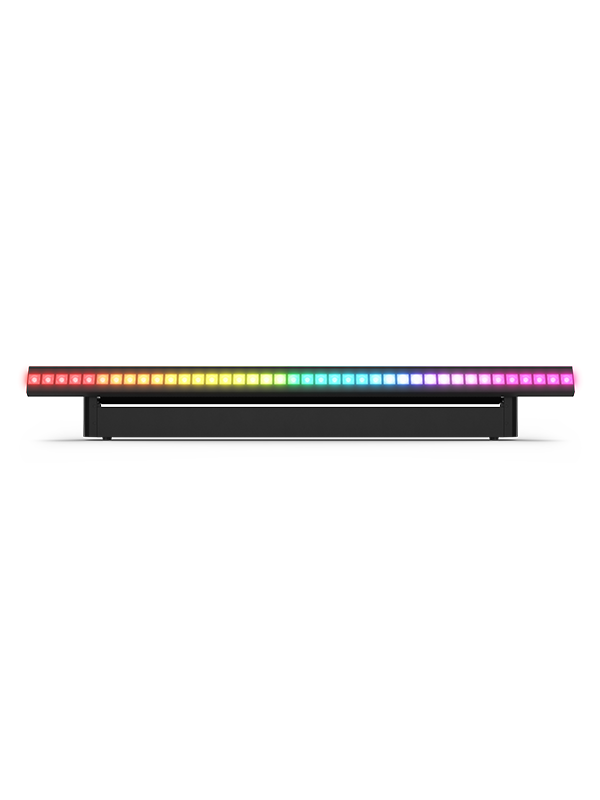

Chauvet DJ COLORband Spectra ILS

COLORband Spectra ILS adds motion to the strip-light form factor: the whole fixture tilts 180 degrees on a motorized yoke, so instead of a fixed wash it can sweep a beam across a room, blast a blinder toward the crowd, or hold still for a pixel-mapped chase. Forty individually mappable RGB+warm-white LEDs cover a color range from 3,000K warm white through fully saturated color.

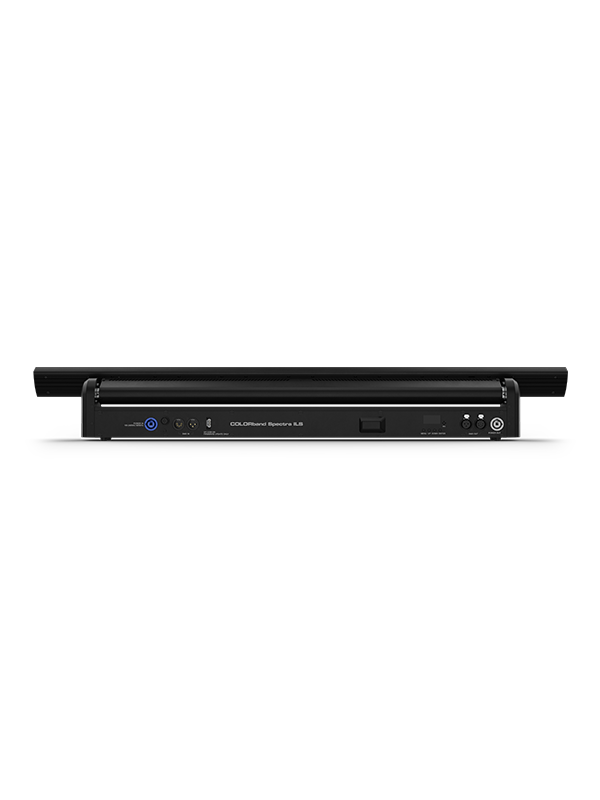

DMX runs 6, 11, 17, 19 or 164 channels depending on how much per-pixel control a show needs, over 3 and 5-pin XLR, and as an ILS fixture it syncs wirelessly with other Chauvet show gear. PowerCON-compatible connectors power-link up to 9 units at 120V, and at 10 lb the strip still mounts to standard truss clamps despite the added motor.

Light Source	40 LEDs (quad-color RGB+WW), 4 W, 50,000-hour life
Pan and Tilt	180°
DMX Channels	6, 11, 17, 19, or 164; 3- and 5-pin XLR
Beam / Field Angle	15° beam / 26° field
Lumen Output	1,938 lm
Color Temperature Range	3,000-14,000 K
Power	86 W, 1.3 A @ 120 V; power-links 9 units @ 120 V
Weight / Size	10 lb (4.6 kg); 39.4 x 2.4 x 5.6 in
