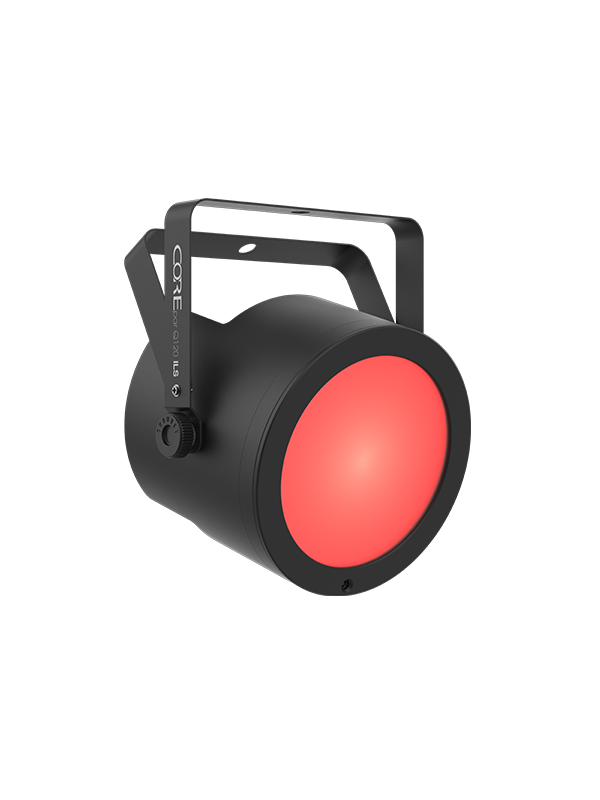

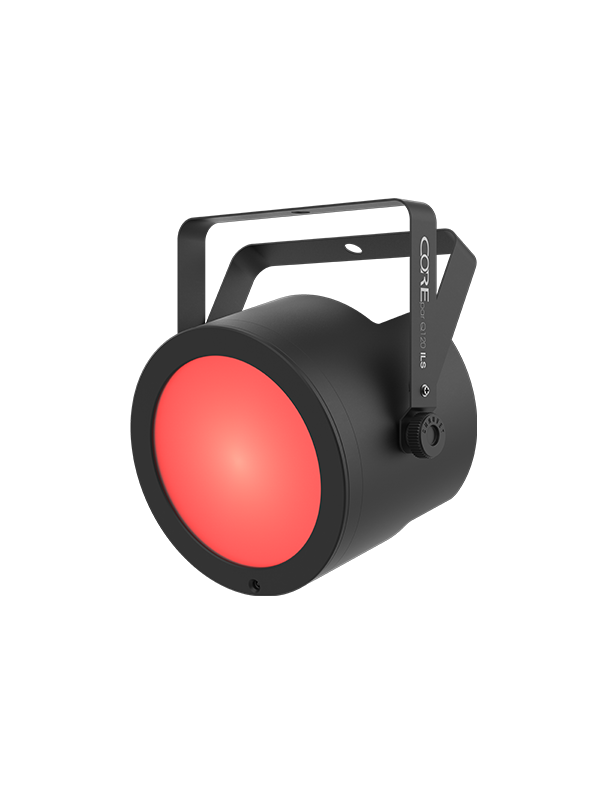

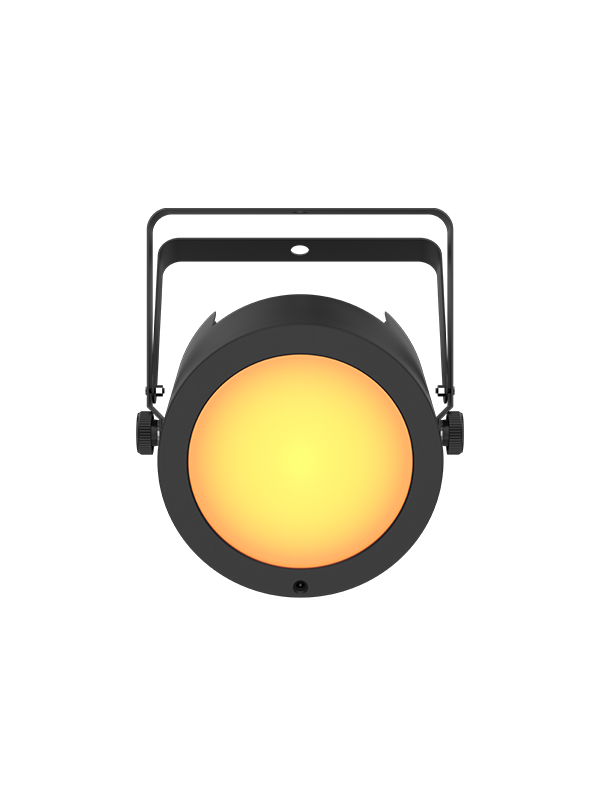

Chauvet DJ COREpar Q120 ILS COB Wash Light
A COREpar Q120 ILS puts one 120-watt quad-color COB behind a single lens, and a single emitter is why its color mixing looks like one light rather than four overlapping shadows. Open, it throws a 56-degree wash; snap the included magnetic Fresnel lens on and it tightens to 20 degrees, which takes about two seconds and needs no tools.
The housing sits flat on the floor with its power and DMX connectors on the side, so it can be pushed against a wall or tucked under a riser without a cable sticking out the back. White output is adjustable across 2700 K to 6000 K, and high-frequency dimming keeps it flicker-free for cameras. Control is ILS for automatic coordination, D-Fi USB for wireless master/slave or DMX, or wired DMX on 4 or 9 channels. It draws 100 W and power-links six deep at 120 V.
| Light Source | 1 COB LED (quad-color RGBW) 120 W, 50,000-hour life |
|---|---|
| Beam / Field Angle | 56° / 100° open; 20° / 30° with included Fresnel lens |
| Illuminance | 868 lux @ 2 m open; 4,639 lux @ 2 m with lens |
| Color Temperature Range | 2700 K to 6000 K |
| DMX Channels | 4 or 9; 3-pin XLR |
| Strobe Rate | 0 to 29 Hz |
| Power and Current | 100 W, 1.3 A @ 120 V; 94 W, 0.7 A @ 230 V |
| Size / Weight | 8.9 x 7.4 x 9 in (225 x 188 x 228 mm); 4.6 lb (2.1 kg) |
