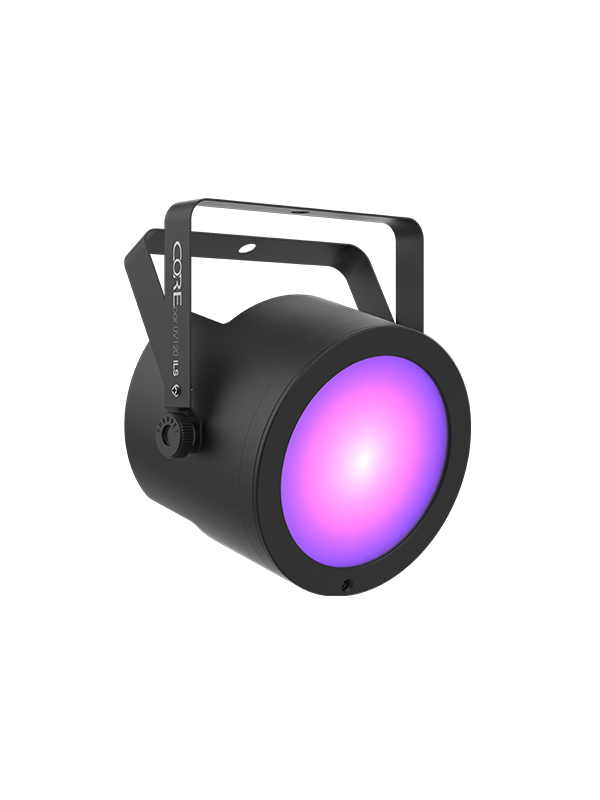

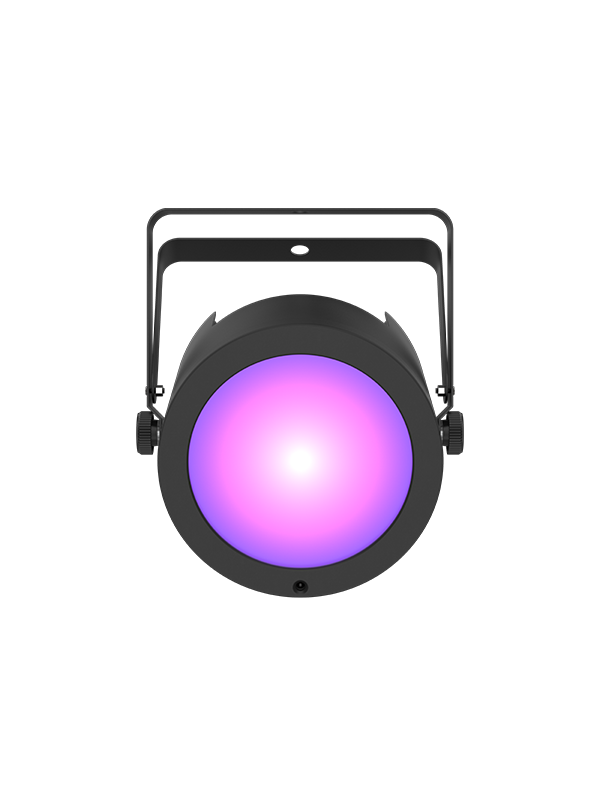

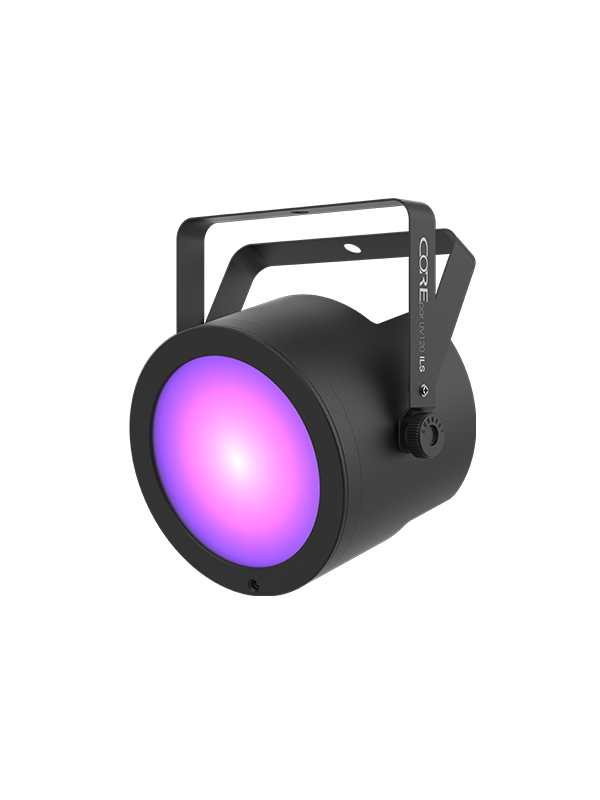

Chauvet DJ COREpar UV120 ILS Compact 120W UV COB Wash

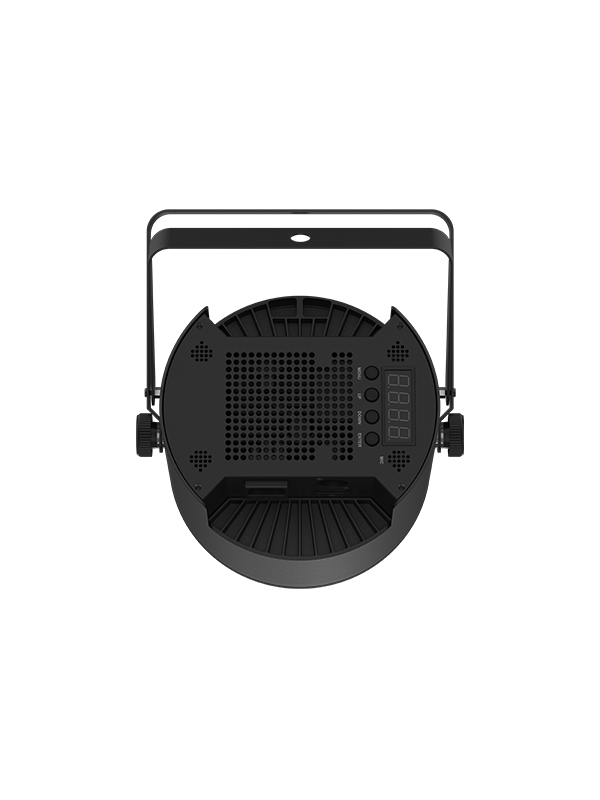

COREpar UV120 ILS puts a single 120W UV COB in the same low, sit-flat housing as the rest of the COREpar line, with side-mounted power and DMX connectors to keep cable clutter down. Without the included magnetic Fresnel lens it throws a wide 44 degree flood for blanket blacklight coverage across a dance floor; the lens narrows it to 21 degrees for a more targeted wash on glow paint or white fabric.
DMX covers 1 or 5-channel control over 3-pin XLR, and being an ILS fixture it also syncs wirelessly with other Chauvet gear on the same rig. High-frequency dimming keeps it flicker-free on camera, and at 4.6 lb it is light enough to hang in numbers along a truss run.
| Light Source | 1 COB LED (UV), 120 W, 3.34 A, 50,000-hour life |
|---|---|
| Wavelength | 390-400 nm |
| DMX Channels | 1 or 5; 3-pin XLR |
| Beam Angle | 21° (with lens); 44° (without lens) |
| Field Angle | 34° (with lens); 94° (without lens) |
| Power | 119 W @ 120 V; power-links 5 units @ 120 V, 9 @ 230 V |
| Weight / Size | 4.6 lb (2.1 kg); 8.9 x 7.4 x 9 in |
