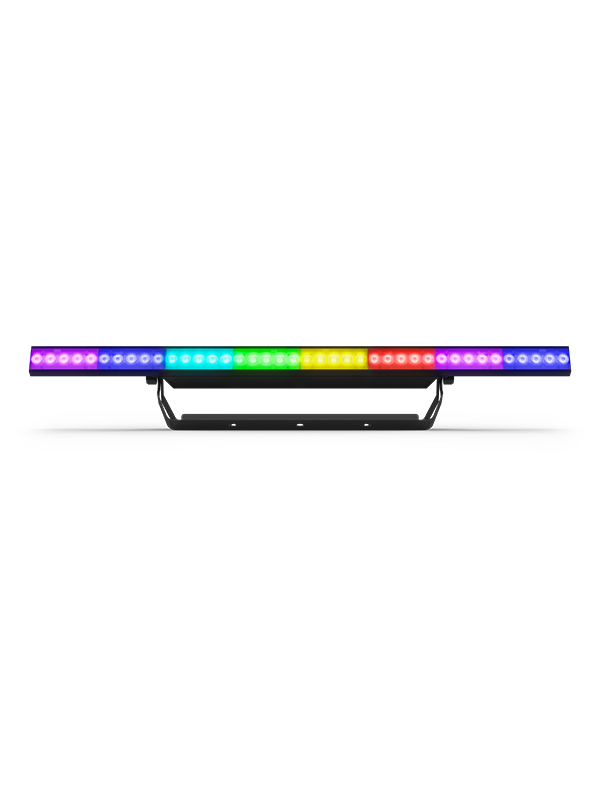

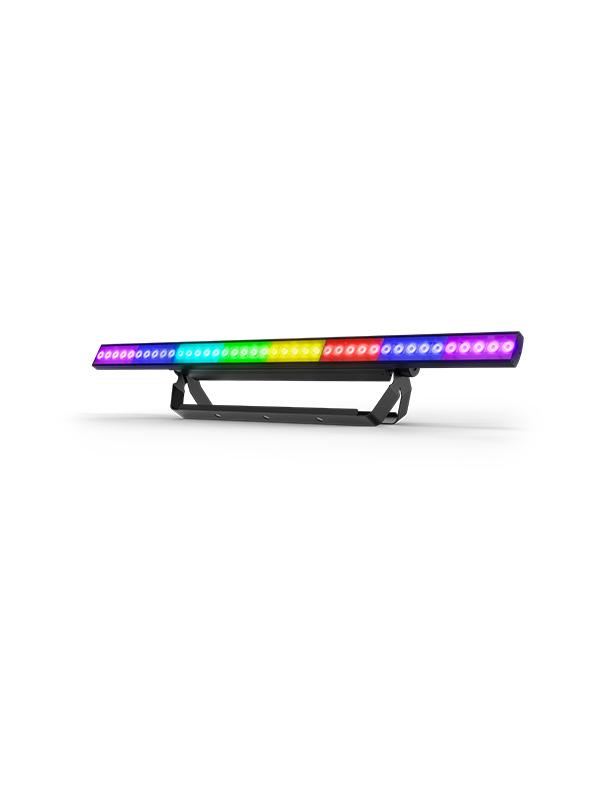

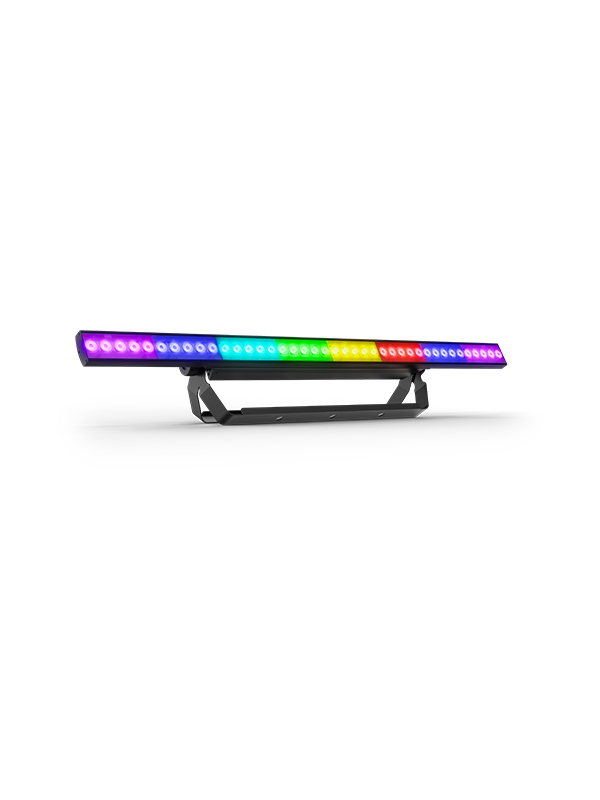

Chauvet DJ COLORstrip PiX ILS

COLORstrip PiX ILS is built for pixel effects rather than a flat wash: 40 tri-color LEDs along the bar are individually addressable, so it can run animated chases and video-style effects that a fixed-zone strip cannot. As an ILS fixture it also syncs wirelessly with the rest of a Chauvet rig, and it still functions as a simple wash when a show just needs color.

DMX modes run from a basic 3-channel wash up to 122-channel full pixel control over 3-pin XLR. A 5-foot cable and a 13mm bracket hole keep mounting simple on truss or a stage lip, and powerCON-compatible connectors power-link up to 7 units at 120V for a longer run of matched pixels.

Light Source	40 tri-color LEDs, 2 W each, 50,000-hour life
DMX Channels	3, 8, 120, or 122; 3-pin XLR
Beam / Field Angle	14° beam / 24° field
Lumen Output	1,491 lm
Power	79 W @ 120 V; power-links 7 units @ 120 V, 10 @ 230 V
Weight / Size	6.2 lb (2.8 kg); 38.9 x 2 x 6.2 in
Cable / Mounting	5 ft cable; 13mm bracket hole
