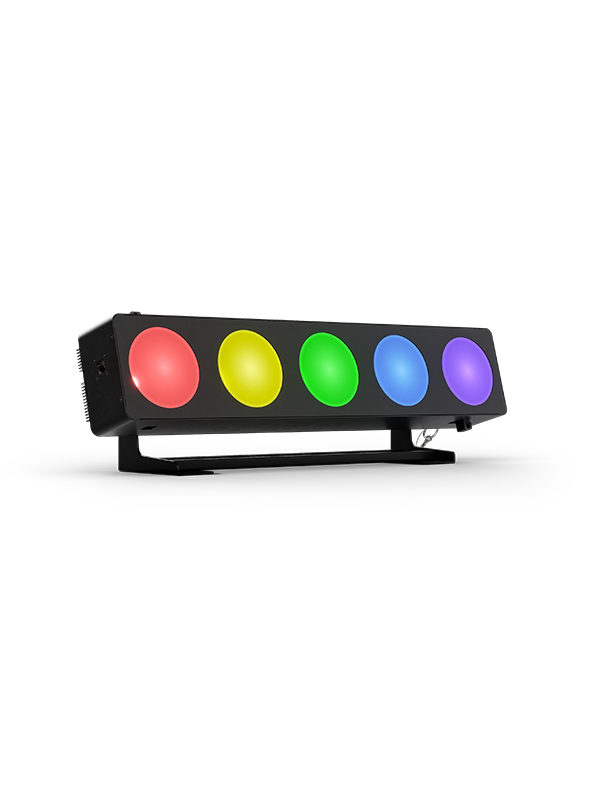

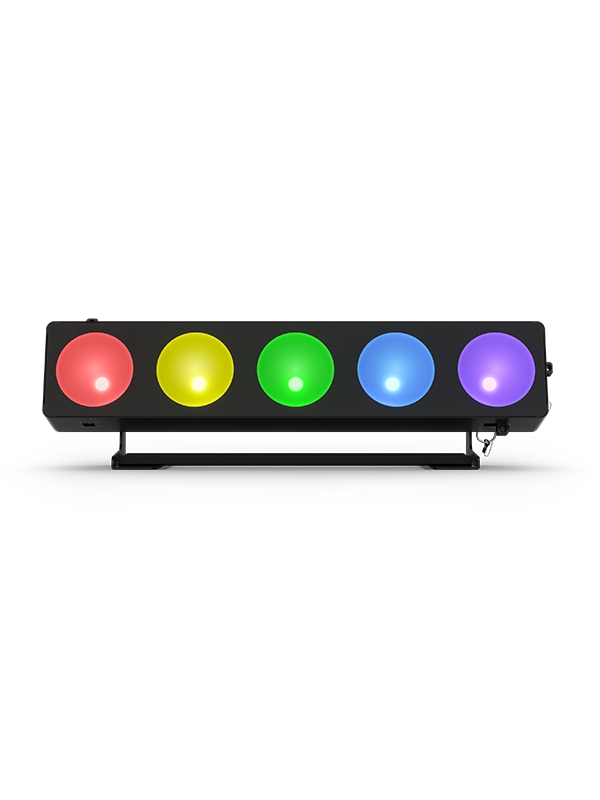

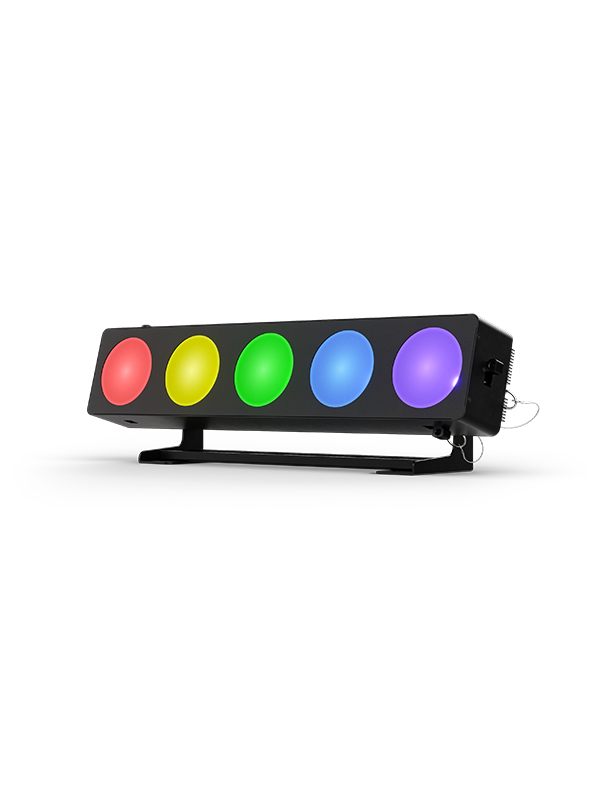

Chauvet DJ Core 5X1 ILS Stackable COB Fixture

Core 5X1 ILS puts five quad-color RGB+WW COB LEDs behind a large reflector and gives an operator tool-free hardware to stack up to six units vertically, turning individual fixtures into one tall pixel-mapped column, a runway chase, a blinder burst, or a plain color wash as the set calls for it. The large-reflector optic produces smooth, saturated color rather than the visible dots a bare LED array shows.

Control covers stand-alone, DMX, ILS wireless sync, RF, or master/slave, at 4, 8 or 22 DMX channels over 3 and 5-pin XLR. Built for touring, it power-links up to 6 units at 120V and includes a 5-foot cable with 13mm bracket mounting, at 11 lb per fixture.

Light Source	5 LEDs (quad-color RGB+WW), 35 W, 50,000-hour life
Stacking	Tool-free, up to 6 units vertically
DMX Channels	4, 8, or 22; 3- and 5-pin XLR
Beam / Field Angle	54° beam / 75° field
Lumen Output	2,875 lm
Power	120 W @ 120 V; power-links 6 units @ 120 V, 10 @ 230 V
Weight / Size	11 lb (5 kg); 23.6 x 3.1 x 4.7 in
Cable / Mounting	5 ft cable; 13mm bracket hole
