BZBGear BG-EXH-150C Long Range HDBaseT HDMI Extender

The BG-EXH-150C is the long-reach extender in BZBGear's HDBaseT line: 4K60 4:4:4 over a single Cat6 cable to 150 m, on 18 Gbps of bandwidth with HDCP 2.2 and 1.4.

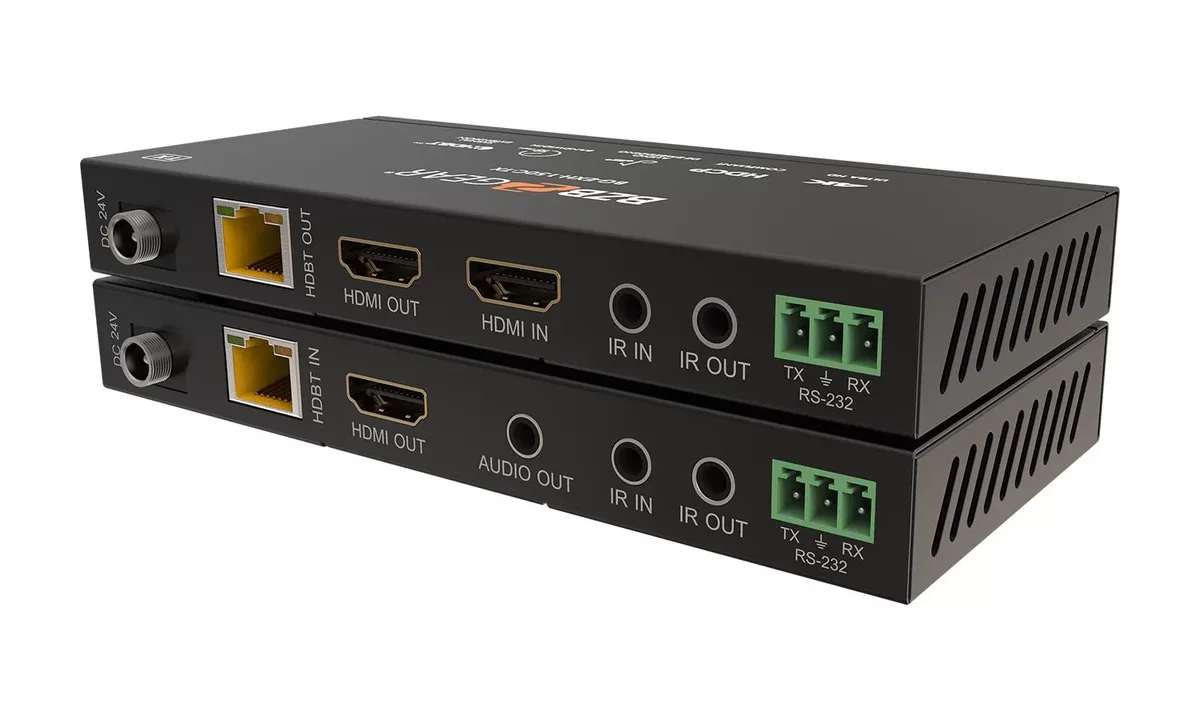

IR and RS-232 travel in both directions, so a display can be controlled from the source end and a source from the display end, and CEC passes through as well. A 3.5 mm jack on the receiver de-embeds audio for a local sound system. Transmitter and receiver are both metal, 140 mm wide, and weigh about 160 g each.

HDCP Compliance	HDCP 2.2 / HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	4K2K@50/60Hz 4:4:4 4K2K@50/60Hz 4:2:2 4K2K@50/60Hz 4:2:0 4K2K@30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200
Resolution / Cable Length	4K@60 - Feet / Meters
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats	PCM 2.0
Color Depth	8/10/12-bit (1080p@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4)
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
