BZBGear BG-EXH-100C6 HDBaseT 3.0 Extender

The EXH-100C6 is the general-purpose long extender in the range: 4K60 4:4:4 over a single Cat6A or Cat7 cable to 100 m, with 16 Gbps on the main link and a 2 Gbps return path. Power over Cable means only the transmitter needs a supply.

Everything a room needs travels with the video: gigabit Ethernet, RS-232 to 921600 bps, bi-directional IR, USB 2.0 at up to 350 Mbps for KVM, and eARC or ARC audio returning from the display. Audio can also be broken out to S/PDIF or analog at either end.

HDMI compliance	HDMI 2.0b
HDCP compliance	HDCP 2.2
Video resolution	Up to 4K@60Hz 4:4:4
HDBaseT bandwidth	16Gbps on main and 2Gbps on return link
Transmission distance	330ft / 100m (via a single CAT 6A/7 cable)
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
USB bandwidth	Up to 350Mbps
Ethernet	1000Mbps
RS-232	Up to 921600bps
Input	1 x HDMI IN [Type A, 19-pin female]

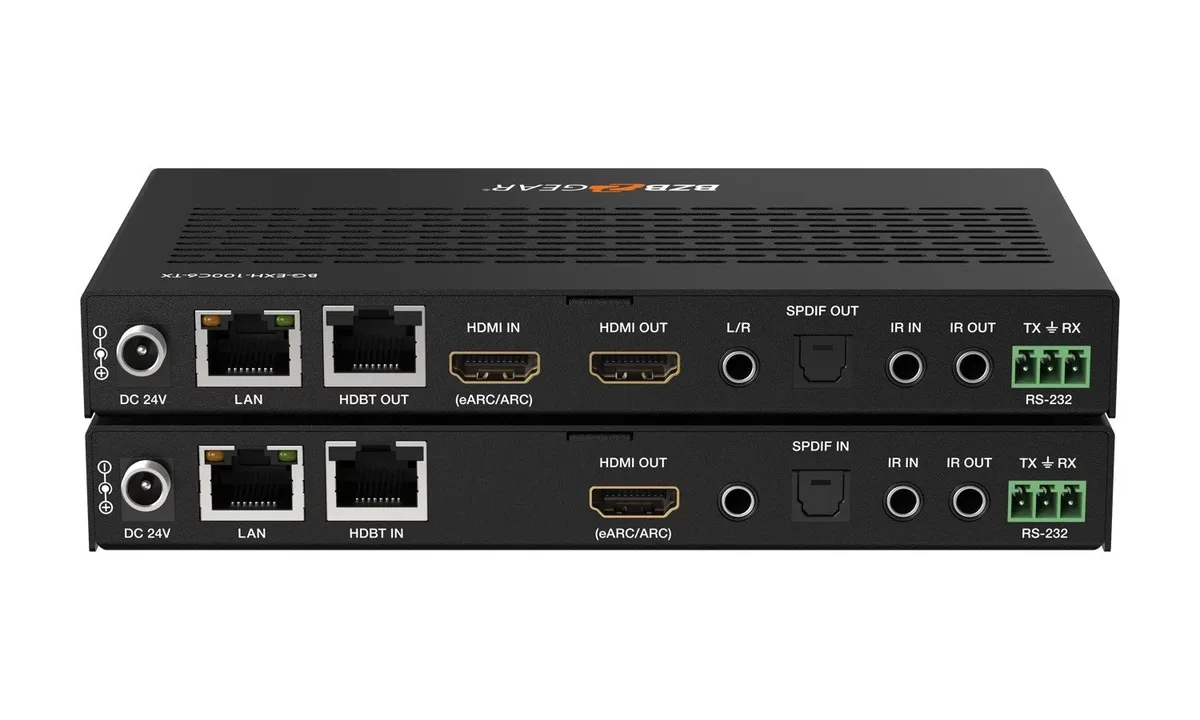

Output	1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x SPDIF OUT [S/PDIF] 1 x L/R OUT [3.5mm Stereo Mini-jack]
Control	1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm Phoenix jack] 1 x SERVICE [Mini-USB, Update port] 1 x USB HOST [USB Type B] 2 x USB DEVICES [USB Type A] 1 x LAN [RJ45]
Dimensions	Transmitter / Receiver: 6.7"(W) x 4.0"(D) x 0.87"(H) [170mm (W) x 102mm (D) x 22mm (H)]
